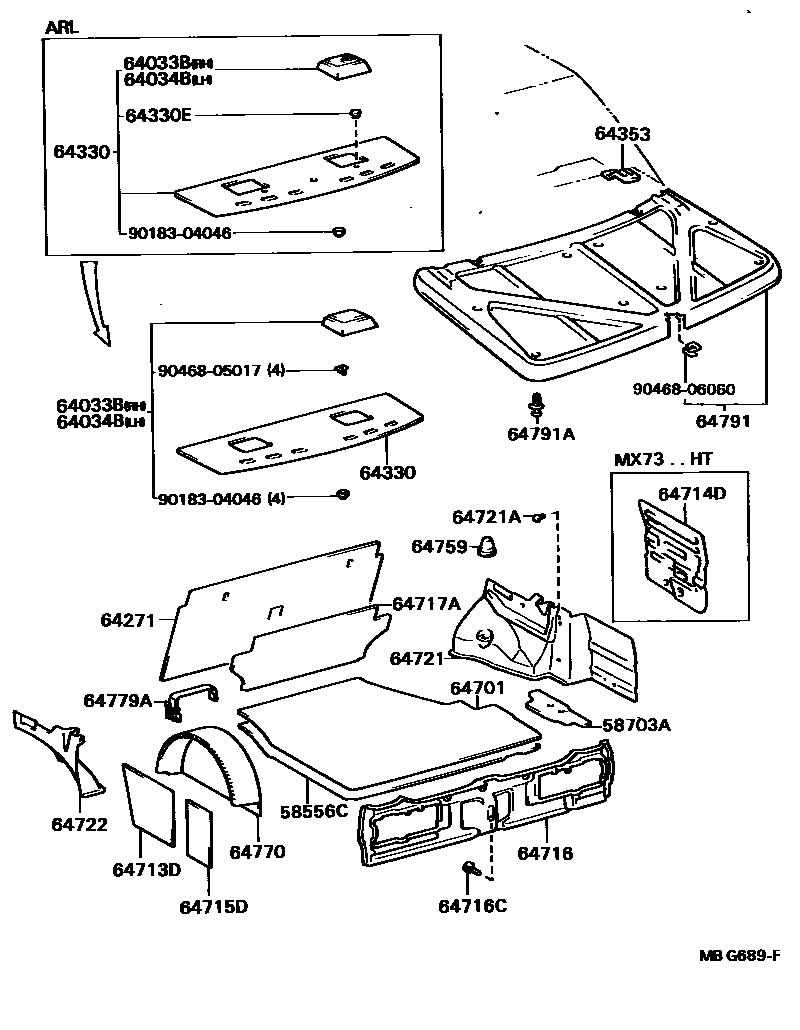

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58556CSILENCER, REAR FLOOR

main58556-22010iGX71,MX73,RX7#..(HT,SED)..(GEN,ME)198704-198808

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22050iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-02iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

MAROON,MEDIUM GRAY

main64033-22040-04iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

BLUE,DARK BLUE

main64033-22040-05iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main64033-22050-02iMX73..ARL198608-198808

MAROON,MAROON

main64033-22050-04iMX73..ARL198608-198808

BLUE,DARK BLUE

main64033-22050-05iMX73..ARL198608-198808

BEIGE,DARK BEIGE

main64033-32010-02iRX70,72..SED..SA198408-198808

MAROON,MAROON

sub64033-32010

main64033-32010-05iRX70,YX70..SA198408-198612

BEIGE,BEIGE

sub64033-32010

main64033-32010-23iRX70,72,YX70..SED..SA198408-198808

GRAY,COOL GRAY

sub64033-32010

main64033-32010-25iGX71,MX73,RX70,72,YX70..SED..SA198612-198808

BEIGE,DARK BEIGE

sub64033-32010

main64370-22010-02iMX73..ARL198408-198608

MAROON,MAROON

main64370-22010-03iMX73..ARL198408-198608

GRAY,COOL GRAY

main64370-22010-05iMX73..ARL198408-198608

BEIGE,BEIGE

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-02iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

MAROON,MEDIUM GRAY

main64033-22040-04iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

BLUE,DARK BLUE

main64033-22040-05iGX71,LX70,MX73,RX7#..(HT,SED)..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main64033-22050-02iMX73..ARL198608-198808

MAROON,MAROON

main64033-22050-04iMX73..ARL198608-198808

BLUE,DARK BLUE

main64033-22050-05iMX73..ARL198608-198808

BEIGE,DARK BEIGE

main64033-32010-02iMX73..TWC..ARL;GX71,LX7#,MX73,RX70..(HT,SED)..(GD,GL,GLX,GTX)..(EUR,GEN,ME,SA)198408-198808

MAROON,MAROON

sub64033-32010

main64033-32010-05iGX71,MX73..SA198408-198612

BEIGE,BEIGE

sub64033-32010

main64033-32010-23iGX71,MX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub64033-32010

main64033-32010-25iGX71,MX73,RX70,72,YX70..SED..SA198612-198808

BEIGE,DARK BEIGE

sub64033-32010

main64370-22010-02iMX73..ARL198408-198608

MAROON,MAROON

main64370-22010-03iMX73..ARL198408-198608

GRAY,COOL GRAY

main64370-22010-05iMX73..ARL198408-198608

BEIGE,BEIGE

64271BOARD, ROOM PARTITION, NO.1

main64271-22080iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-22430-02iMX73..XL..ME198408-198808

MAROON,MAROON

sub64330-22440

main64330-22430-03iRX70,YX70..SED..SA198408-198612

GRAY,COOL GRAY

sub64330-22440

main64330-22430-04iMX73..XL..ME198608-198808

BLUE,DARK BLUE

sub64330-22440

main64330-22430-05iRX70,YX70..SED..(STD,XL)..(GEN,SA)198408-198612

BEIGE,BEIGE

sub64330-22440

main64330-22430-15iRX70,72..SED..XL..GEN198608-198808

BEIGE,DARK BEIGE

sub64330-22440

main64330-22440-02iGX71,LX70,RX70..(GL,GLX)..GEN198408-198608

MAROON,MAROON

sub64330-22440

main64330-22440-03iGX71,LX70,RX70..(GL,GLX)..GEN198408-198608

GRAY,COOL GRAY

sub64330-22440

main64330-22440-04iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

BLUE,DARK BLUE

sub64330-22440

main64330-22440-05iGX71,LX71..EUG198408-198608

BEIGE,BEIGE

sub64330-22440

main64330-22440-12iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

MAROON,MAROON

sub64330-22440

main64330-22440-15iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

BEIGE,DARK BEIGE

sub64330-22440

main64330-22450-02iGX71,LX70,MX73,RX70..SED..(GD,GL,GLX)..(GEN,ME)198408-198608

W/*SPG,MAROON,MAROON

sub64330-22450

sub64330-22440

main64330-22450-03iGX71,LX71..EUG198408-198608

W/*SPG,GRAY,COOL GRAY

sub64330-22450

sub64330-22440

main64330-22450-04iMX73,RX72..SED..(GD,GL)..ME198608-198808

BLUE,DARK BLUE

sub64330-22450

sub64330-22440

main64330-22450-04iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

W/*SPG,BLUE,DARK BLUE

sub64330-22450

sub64330-22440

main64330-22450-05iGX71,LX71..EUG198408-198608

W/*SPG,BEIGE,BEIGE

sub64330-22450

sub64330-22440

main64330-22450-12iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

W/*SPG,MAROON,MAROON

sub64330-22450

sub64330-22440

main64330-22450-12iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

MAROON,MAROON

sub64330-22450

sub64330-22440

main64330-22450-15iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

BEIGE,DARK BEIGE

sub64330-22450

sub64330-22440

main64330-22450-15iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

W/*SPG,BEIGE,DARK BEIGE

sub64330-22450

sub64330-22440

main64330-22460-02iGX71,MX73..SA198408-198612

RR SEAT=*ELR,W/*SPG,MAROON,MAROON

sub64330-22460

sub64330-22500

main64330-22460-03iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198612

RR SEAT=*ELR,W/*SPG,GRAY,COOL GRAY

sub64330-22460

sub64330-22500

main64330-22460-04iRX72..SED..LHD..XL..GEN198608-198808

RR SEAT=*ELR,W/*SPG,BLUE,DARK BLUE

sub64330-22460

sub64330-22500

main64330-22460-05iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198612

RR SEAT=*ELR,W/*SPG,BEIGE,BEIGE

sub64330-22460

sub64330-22500

main64330-22460-12iRX72..SED..LHD..XL..GEN198608-198808

RR SEAT=*ELR,W/*SPG,MAROON,MAROON

sub64330-22460

sub64330-22500

main64330-22460-15iRX72..SED..LHD..XL..GEN198608-198808

RR SEAT=*ELR,W/*SPG,BEIGE,DARK BEIGE

sub64330-22460

sub64330-22500

main64330-22470-02iMX73..ARL198608-198808

MAROON,MAROON

sub64330-22470

sub64330-22500

main64330-22470-04iMX73..ARL198608-198808

BLUE,DARK BLUE

sub64330-22470

sub64330-22500

main64330-22470-05iMX73..ARL198608-198808

BEIGE,DARK BEIGE

sub64330-22470

sub64330-22500

main64330-22490-02iMX73..ARL198408-198608

MAROON,MAROON

sub64330-22490

sub64330-22500

main64330-22490-03iMX73..ARL198408-198608

GRAY,COOL GRAY

sub64330-22490

sub64330-22500

main64330-22490-05iMX73..ARL198408-198608

BEIGE,BEIGE

sub64330-22490

sub64330-22500

main64330-22500-02iGX71,LX71,MX73..EUR198408-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub64330-22500

main64330-22500-03iGX71,LX70,RX70..(GL,GLX)..GEN198408-198808

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub64330-22500

main64330-22500-04iRX70,72..SED..LHD..XL..GEN198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

sub64330-22500

main64330-22500-05iGX71,LX70,RX70..(GL,GLX)..GEN198408-198608

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub64330-22500

main64330-22500-12iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub64330-22500

main64330-22500-15iRX70,72..SED..LHD..XL..GEN198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

sub64330-22500

main64330-22510-02iRX70..SED..SA198408-198612

W/*SPG,MAROON,MAROON

sub64330-22510

sub64330-22440

main64330-22510-03iMX73..XL..ME198408-198808

W/*SPG,GRAY,COOL GRAY

sub64330-22510

sub64330-22440

main64330-22510-04iRX70,72..SED..XL..(GEN,ME)198608-198808

W/*SPG,BLUE,DARK BLUE

sub64330-22510

sub64330-22440

main64330-22510-05iRX70,YX70..SED..SA198408-198808

W/*SPG,BEIGE,BEIGE

sub64330-22510

sub64330-22440

main64330-22510-12iRX70,72..SED..XL..(GEN,ME)198608-198808

W/*SPG,MAROON,MAROON

sub64330-22510

sub64330-22440

main64330-22510-15iRX70,72..SED..XL..(GEN,ME)198608-198808

W/*SPG,BEIGE,DARK BEIGE

sub64330-22510

sub64330-22440

main64330-22560-02iGX71,MX73,RX70..HT198504-198608

MAROON,MAROON

sub64330-22560

main64330-22560-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

sub64330-22560

main64330-22560-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub64330-22560

main64330-22560-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

sub64330-22560

main64330-22560-12iMX73,RX72..GT198608-198808

MAROON,MAROON

sub64330-22560

main64330-22560-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub64330-22560

main64330-22570-04iMX73..GTX198608-198808

BLUE,DARK BLUE

sub64330-22570

sub64330-22550

main64330-22570-12iMX73..GTX198608-198808

MAROON,MAROON

sub64330-22570

sub64330-22550

main64330-22570-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

sub64330-22570

sub64330-22550

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01436-02iMX73..ARL198408-198808

MAROON,MAROON

sub90950-01436

sub64353-50010

main90950-01436-03iMX73..ARL198408-198608

GRAY,COOL GRAY

sub90950-01436

sub64353-50010

main90950-01436-05iMX73..ARL198408-198608

BEIGE,BEIGE

sub90950-01436

sub64353-50010

main90950-01436-24iMX73..ARL198608-198808

BLUE,DARK BLUE

sub90950-01436

sub64353-50010

main90950-01436-25iMX73..ARL198608-198808

BEIGE,DARK BEIGE

sub90950-01436

sub64353-50010

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-22010iGX71,LX7#,RX70,YX70..SED198408-198808

RH

main64354-22010iRX70,72..SED..XL..GEN198408-198808

LH

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-22200iGX71,LX7#,MX73,RX7#..(HT,SED)..(GD,GL,GLX,GTX)198408-198808

main64711-22210iYX70198502-198808

main64711-22220iMX73,RX70,72..SED..XL198408-198808

64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH

main64713-22030iMX73..XL198408-198808

main64713-22040iGX71,LX71,MX73..GD,GL,GLX,GT,GTX198408-198808

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22210iMX73..HT198504-198808

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22130iMX73..XL198408-198808

main64715-22140iRX70,72..HT198408-198808

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-22150iGX71,LX7#,MX73,RX7#..SED..(GL,GLX)..(ARL,EUR,GEN,SA)198408-198808

main64716-22160iGX71,MX73,RX70,72..SED..(GD,GL)..ME198408-198808

main64716-22180iGX71,MX73,RX70,72..HT198504-198808

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iGX71,LX7#,MX73,RX7#..(HT,SED)..(GD,GL,GLX,GT,GTX)198408-198808

GRAY,GRAY

sub90467-05004

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64717-22080iGX71,MX73,RX70,72..HT198504-198808

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-22100iMX73..GD,GTX198408-198808

main64721-22120iMX73..XL..SA198608-198808

main64721-22180iGX71,LX71,MX73..SED..(GD,GL,GLX)198408-198808

main64721-22210iMX73..GT198504-198808

main64721-22250iRX70,72..HT198504-198808

main64721-22260iMX73..GTX198504-198808

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03iGX71,LX7#,MX73,RX7#..HT,SED198408-198808

GRAY,GRAY

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-22140iLX70,RX70,72..SED198408-198808

main64722-22150iGX71,LX71,MX73..SED..(GD,GL,GLX)198408-198808

main64722-22160iRX71,73198504-198808

main64722-22260iRX70,72..HT198504-198808

64759COVER, SHOCK ABSORBER HEAD

main58731-22020-23iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

GRAY,GRAY

sub58731-22020

64770COVER ASSY, SPARE WHEEL

main64770-22040iMX73,RX70,72,YX70..SED..(STD,XL)198408-198808

main64770-22060iGX71,LX7#,MX73,RX7#..(HT,SED)..(GD,GL,GLX,GT,GTX)198408-198808

64779ASTOPPER, SPARE WHEEL COVER

main64779-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64791COVER, BACK DOOR TRIM

main64791-22010iMX73..GLX..ARL198508-198808

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07067iGX71,MX73..GLX..SA198508-198808

9018304046

main90183-04046

9046805017

main90468-05017

9046806060

main90468-06060

26 parts on this diagram · 1 diagram in section
