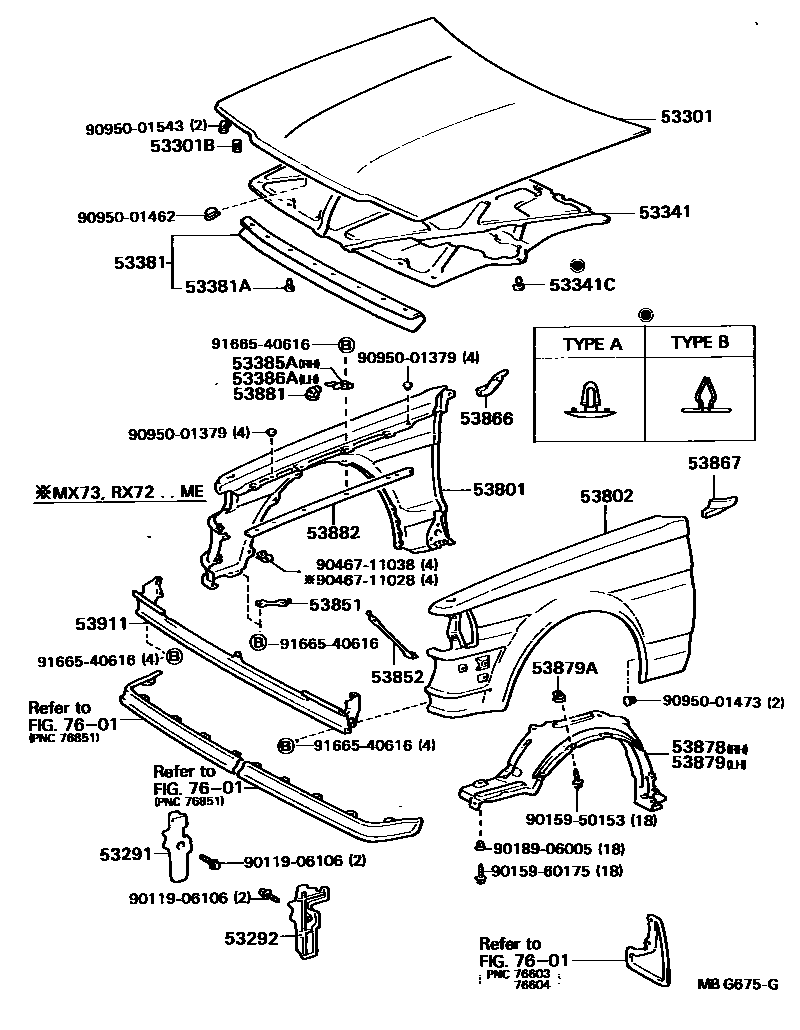

HOOD & FRONT FENDER

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-22030iGX71,LX7#,MX7#..EUR198408-198608

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-22010iGX71,LX7#,MX7#..EUR198408-198608

53301HOOD SUB-ASSY

main53301-22200iGX71,LX7#,MX7#,RX7#,YX70..ARL,EUR,GEN,SA198408-198808

main53301-22210iMX73,RX72..(SED,WG)..ME198408-198808

main53301-22230iGX71,MX73,RX70..HT198504-198608

main53301-22231iMX73,RX72..HT198608-198708

main53301-22232iMX73,RX72..HT198708-198808

53301BCUSHION, HOOD BUMPER

main90541-15004iGX71,MX73,RX7#,YX70198408-198808

L=29

main90541-15111iGX71,MX73,RX7#,YX70198408-198808

L=26

53341SILENCER, HOOD, NO.1

main53341-22070iMX73..5F..SWZ198408-198808

main53341-22080iMX7#..4FC..SWZ198408-198808

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008iGX71,LX7#,MX7#,RX70,YX70198408-198608

TYPE A

main90467-09008-01iGX71,LX70,MX73,RX7#,YX70198608-198808

TYPE A,BLACK

main90467-13009iLX7#..EUG198408-198608

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22060iGX71,MX7#,RX7#,YX70198408-198808

main53381-22070iLX7#198408-198808

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53385ARETAINER, HOOD BUMPER, RH

main53385-14010iGX71,LX70,MX73,RX7#,YX70198608-198808

main53385-22010iGX71,LX7#,MX7#,RX70,YX70198408-198608

53386ARETAINER, HOOD BUMPER, LH

main53386-14010iGX71,LX70,MX73,RX7#,YX70198608-198808

main53386-22010iGX71,LX7#,MX7#,RX70,YX70198408-198608

53801FENDER SUB-ASSY, FRONT RH

main53801-22740iGX71,MX73..GLX..(ARL,GEN)198508-198808

main53801-22880iGX71,MX73,RX70,72,YX70..SA198408-198808

main53801-22890iLX70,RX7#..(GL,XL)..(GEN,ME)198408-198808

main53801-2A040iGX71,MX73..GLX..(ARL,GEN)198508-198608

main53801-2A180iGX71,RX70..HT198504-198808

main53801-2A190iMX73..GTX198508-198808

53802FENDER SUB-ASSY, FRONT LH

main53802-22850iLX70,RX70..GEN198408-198808

main53802-22860iMX73..(GL,XL)..(ARL,GEN,ME)198408-198808

main53802-22870iGX71,MX73..GLX..(ARL,GEN)198508-198808

main53802-2A150iMX73,RX72..GT198504-198808

main53802-2A160iGX71,MX73..GLX..(ARL,GEN)198508-198608

main53802-2A170iMX73..GTX198508-198808

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-22020iGX71,LX7#,MX73,RX7#,YX70198408-198808

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-22020iGX71,LX7#,MX73,RX7#,YX70198408-198808

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22030iGX71,MX73,RX70,72..HT198504-198808

main53866-22040iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main53866-22050iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22020iGX71,MX73,RX70,72..HT198504-198808

main53867-22030iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main53867-22050iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

53878LINER, FRONT FENDER, RH

main53875-22040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53879LINER, FRONT FENDER, LH

main53876-22040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53879ARETAINER, FRONT FENDER LINER

main53879-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53881BUMPER, FENDER TO HOOD

main53384-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53882PACKING, FRONT FENDER MAIN

main53882-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53911PANEL, FRONT VALANCE

main53901-22100iMX73,RX72..ME198608-198808

main53901-22110iGX71,LX7#,MX7#,RX70,YX70198408-198808

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906106

main90119-06106

9015950153

main90159-50153

9015960175

main90159-60175

9018906005

main90189-06005

9046711028

main90467-11028

9046711038

main90467-11038

9095001379

main90950-01379

9095001462

main90950-01462

9095001473

main90950-01473

9095001543

main90950-01543

9166540616

main91665-40616

34 parts on this diagram · 1 diagram in section
