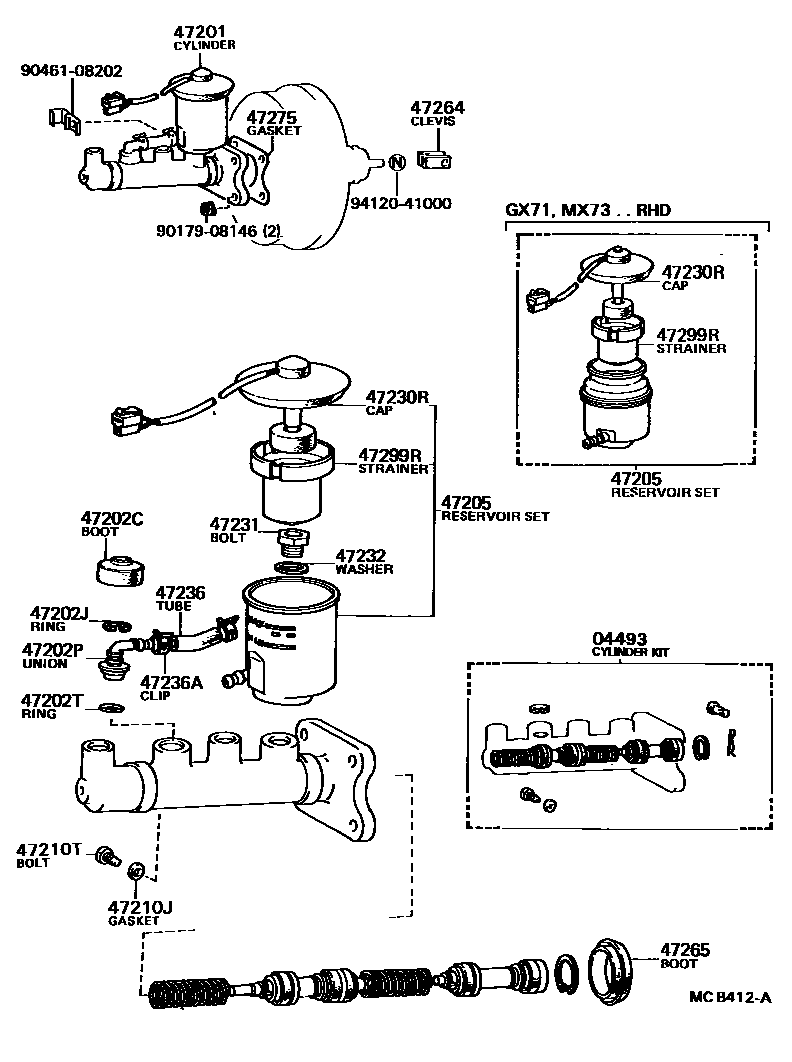

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-22120iMX73..LHD..EUG;MX73..RHD..(EUR,GEN,SA)198408-198808

main04493-22130iRX7#..GEN,SA198408-198808

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-22440iGX71..RHD..GEN198408-198808

main47201-22450iGX71..SA198408-198808

main47201-22490iRX72..ME198608-198808

main47201-22500iMX73..RHD..(EUR,GEN,SA)198408-198808

main47201-22510iGX71..ME198408-198808

main47201-22520iGX71..LHD..(EUR,GEN)198408-198808

main47201-22540iRX7#..LHD..GEN198705-198808

main47201-22570iRX70..ME198508-198608

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iGX71,LX7#,MX7#,RX70,71,YX70198408-198808

sub90407-10004

main90407-10004iRX72,73198608-198808

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-22170iGX71,MX73..RHD198408-198808

main47202-22180iRX72,73198608-198808

main47202-22200iGX71..LHD..(EUR,GEN)198408-198808

main47202-22220iGX71,YX70..SA198408-198808

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-20051iGX71,LX7#,MX7#,RX7#,YX70198408-198808

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRX72,73198608-198808

main47231-22010iGX71,LX7#,MX7#,RX70,71198509-198808

main47231-30010iGX71,LX7#,MX7#,RX70198408-198509

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iMX73..ARL,GEN,SA198408-198808

47236TUBE, RESERVOIR BRAKE

main47234-20010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iGX71,LX7#,MX7#,RX7#,YX70198408-198808

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX71,LX7#,MX7#,RX70,YX70198408-198808

main47264-30040iMX7#..LHD..EFI198508-198808

47265BOOT, MASTER CYLINDER

main47265-20050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

21 parts on this diagram · 3 diagrams in section
