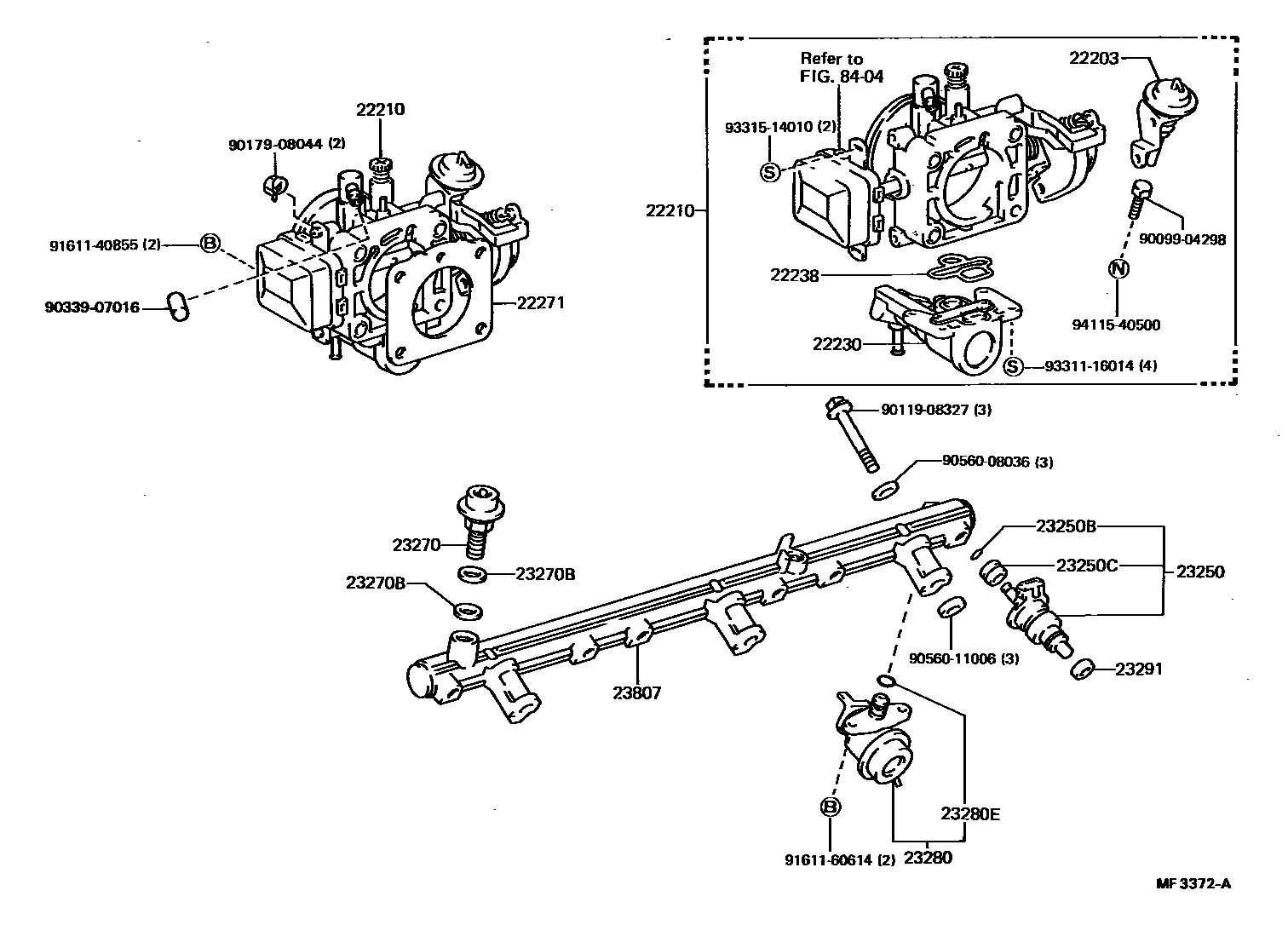

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-41040i5ME..MX7#198408-198808

main22203-43010i5MGE..MX73..RHD..4FC198408-198808

main22203-43020i5MGE..MX73..5F198408-198808

main22203-43030i5MGE..MX73..LHD..4FC198408-198608

main22203-70030i1GE..GX71..RHD198408-198808

22210BODY ASSY, THROTTLE

main22210-43210i5MGE..MX73..RHD..4FC..(EUR,GEN,SA)198408-198808

main22210-43230i5MGE..MX73..LHD..4FC198408-198608

main22210-43270i5ME..MX7#..ARL,EUR198408-198608

main22210-43280i5ME..MX73..GEN,ME198411-198808

main22210-43300i5MGE..MX73..5F..EUG198408-198608

main22210-43340i5MGE..MX73..5F..SA198502-198808

main22210-43350i5MGE..MX73..ARL198508-198808

main22210-70051i1GGE..GX71198408-198608

main22210-70090i1GE..GX71..LHD198408-198608

main22210-70091i1GE..GX71..LHD198608-198808

main22210-70100i1GE..GX71..RHD198408-198808

22230VALVE ASSY, AUXILIARY AIR

main22230-43010i5MGE..MX73..EUR,GEN,SA198408-198808

main22230-43030i5ME..MX7#198408-198808

main22230-70040i1GE..GX71198408-198808

22238GASKET, AUXILIARY AIR VALVE

main22238-43010i5MGE..MX73..EUR,GEN,SA198408-198808

sub22238-43020

main22238-70010i1GE..GX71198408-198808

22271GASKET, THROTTLE BODY

main22271-41030i5ME..MX7#198408-198808

sub22271-43020

main22271-43010i5MGE..MX73198408-198808

sub22271-43030

main22271-70010i1GE..GX71198408-198808

main22271-88300i1GGE..GX71198408-198608

23250INJECTOR ASSY, FUEL

main23209-43010i5MGE..MX73..GEN,SA198609-198808

main23209-45011i1GGE..GX71198408-198808

sub23209-43010

main23209-70010i1GE..GX71198408-198610

sub23209-13010

main23209-70060i1GE..GX71198610-198808

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i5M#..MX7#198408-198808

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1G#..GX71198408-198808

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-35010i5MGE..MX73198606-198610

sub23270-42010

main23270-42010i5MGE..MX73198610-198808

main23270-43010i5MGE..MX73198408-198606

sub23270-35010

main23270-52011i1GGE..GX71198408-198608

sub23207-16020

main23270-70010i1GE..GX71198408-198610

main23270-70040i5ME..MX73198610-198808

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1GGE..GX71198408-198608

DAMPER SIDE

sub23232-41081

main90430-12005i1GGE..GX71198408-198608

DELIVERY PIPE SIDE

main90430-14002i1GE..GX71198408-198808

ID=14.2

main90430-17002i5M#..MX7#198408-198808

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030i5ME..MX7#198408-198808

main23280-43020i5MGE..MX73198408-198808

main23280-70020i1GE..GX71198408-198707

main23280-70030i1GGE..GX71198408-198608

main23280-70060i1GE..GX71198707-198808

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GE..GX71198408-198808

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1G#..GX71198408-198808

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45020i5ME..MX7#198408-198808

main23807-70020i1GE..GX71198408-198506

main23807-70030i1GE..GX71198506-198808

main23807-88300i1GGE..GX71198408-198608

main23814-43020i5MGE..MX73198408-198808

8404

9009904298

main90099-04298

9011908327

main90119-08327

9017908044

main90179-08044

9033907016

main90339-07016

9056008036

main90560-08036

9056011006

main90560-11006

9161140855

main91611-40855

9161160614

main91611-60614

9331116014

main93311-16014

9331514010

main93315-14010

9411540500

main94115-40500

26 parts on this diagram · 10 diagrams in section
