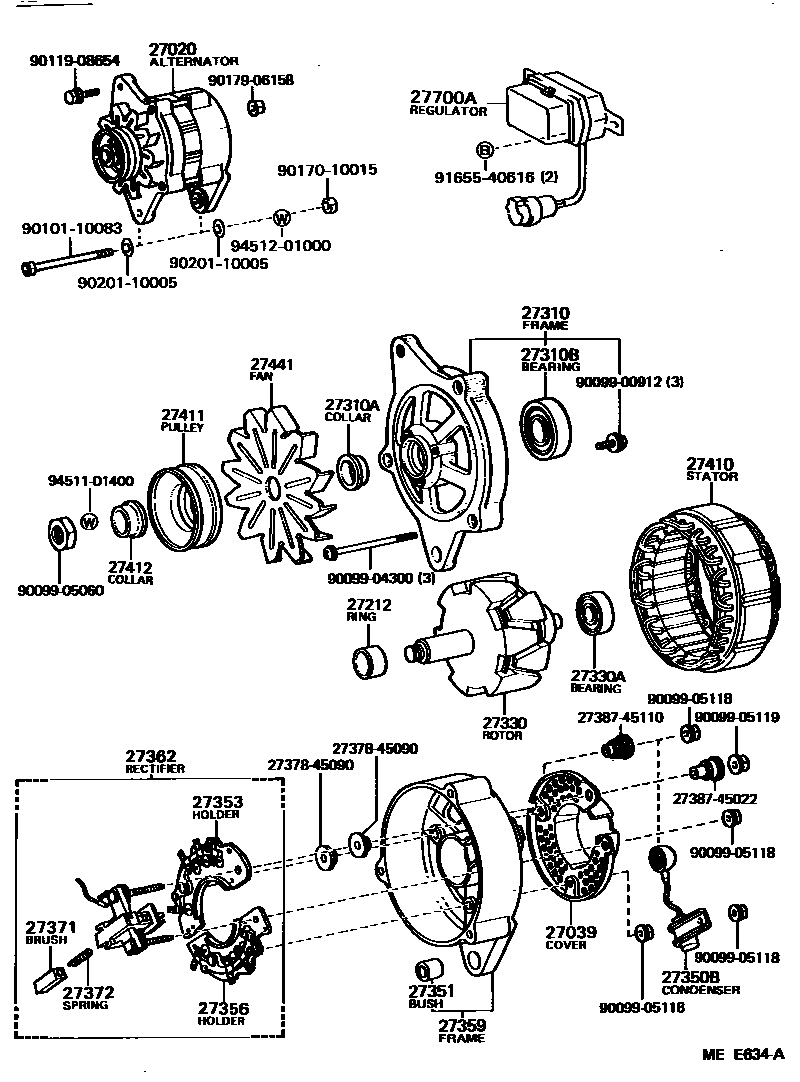

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1

27020ALTERNATOR ASSY

main27020-34021i21R,22R..RX7#198408-198808

12V 55A,12V 55A

main27020-54180i2L#..LX7#198408-198808

12V 60A,12V 60A

main27020-72010i2Y..YX70198502-198808

12V 55A,12V 55A

main27060-43060i5M#..MX7#198408-198608

12V 60A,12V 60A

sub27060-43110

main27060-43061i5M#..MX73198608-198702

12V 60A,12V 60A

sub27060-43062

main27060-43062i5M#..MX73198702-198808

12V 60A,12V 60A

sub27060-43092

main27060-43170i5ME..MX73..XL198711-198808

12V 60A,12V 60A,S.ARABIA TAXI SPEC

main27060-70070i1GGE..GX71198408-198604

12V 60A,12V 60A

sub27060-70140

main27060-70080i1GE..GX71198408-198512

12V 60A,12V 60A

main27060-70110i1GE..GX71198512-198608

12V 70A,12V 70A

sub27060-70160

main27060-70111i1GE..GX71198608-198808

12V 70A,12V 70A

sub27060-70220

main27060-70170i1GGE..GX71198604-198608

12V 60A,12V 60A

sub27060-70142

27039COVER, ALTERNATOR REAR END

main27039-45110i21R,22R..RX7#198408-198808

12V 55A

sub27039-34022

main27039-63021i1GGE,5M#..GX71,MX73198408-198410

12V 60A

sub27039-72010

main27039-70080i1GE..GX71198408-198512

12V 60A

sub27039-70081

main27039-70081i1GE..GX71198512-198808

12V 70A

sub27039-74200

main27039-72010i1GGE,5M#..GX71,MX7#198410-198808

12V 60A

sub27039-15170

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2L#..LX7#198408-198808

12V 60A

main27412-15150i21R,22R,2Y..RX7#,YX70198604-198808

12V 55A

main27412-45070i21R,2Y..RX70,YX70198408-198604

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i21R,22R..RX7#198408-198808

12V 55A

main27310-43060i5M#..MX73198702-198808

12V 60A

sub27310-75040

main27310-43100i5M#..MX7#198501-198702

12V 60A

sub27310-72101

main27310-43132i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

main27310-54130i2L#..LX7#198408-198808

12V 60A

sub27310-54131

main27310-70070i1GGE..GX71198408-198501

12V 60A

main27310-70071i1GGE..GX71198501-198608

12V 60A

main27310-70080i1GE..GX71198408-198501

12V 60A

main27310-70081i1GE..GX71198501-198512

12V 60A

main27310-70111i1GE..GX71198512-198808

12V 70A

main27310-72041i2Y..YX70198502-198808

12V 55A

main27310-72090i5M#..MX7#198408-198501

12V 60A

sub27310-72050

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2Y..YX70198502-198604

12V 55A

main27412-16040i2Y..YX70198604-198808

12V 55A

main27412-31040i21R,22R..RX7#198408-198808

12V 55A

main27412-57060i2L#..LX7#198408-198808

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i21R,22R..RX7#198408-198808

12V 55A

main90099-10137i2L#..LX7#198408-198808

12V 60A

main90099-10142i2Y..YX70198502-198808

12V 55A

sub90099-10223

main90099-10152i1G#..GX71198408-198501

12V 60A

main90099-10156i5M#..MX7#198408-198501

12V 60A

sub90099-10152

main90099-10159i1G#,5M#..GX71,MX7#198501-198702

12V 60A,70A,OD=46

sub90099-10199

main90099-10159i1GE..GX71198702-198808

12V 70A

sub90099-10199

main90099-10177i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

main90099-10178i5M#..MX73198702-198808

12V 60A,OD=52

27330ROTOR ASSY, ALTERNATOR

main27330-43132i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

main27330-54180i2L#..LX7#198408-198808

12V 60A

sub27330-64170

main27330-63010i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27330-63021i1G#,5M#..GX71,MX7#198408-198501

12V 60A

sub27330-72100

main27330-72101i1G#,5M#..GX71,MX7#198501-198808

12V 60A,70A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main90099-10140i1G#,5M#..GX71,MX7#198408-198808

12V 60A,70A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L#..LX7#198408-198808

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

sub90099-52034

main90099-52082i2L#..LX7#198408-198808

12V 60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27351-56013i2L#..LX7#198408-198808

12V 60A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34121i21R,22R..RX7#198408-198808

12V 55A

main27353-54180i2L#..LX7#198408-198808

12V 60A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i21R,22R..RX7#198408-198808

12V 55A

main27356-54180i2L#..LX7#198408-198808

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i21R,22R..RX7#198408-198808

12V 55A

main27359-43050i5M#..MX7#198408-198702

12V 60A

sub27359-16011

main27359-43051i5M#..MX73198702-198808

12V 60A

sub27359-16180

main27359-43132i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

sub27359-72130

main27359-63021i1GGE..GX71198408-198608

12V 60A

sub27359-63081

main27359-70081i1GE..GX71198408-198808

12V 60A,70A

main27359-72010i2Y..YX70198502-198808

12V 55A

27362RECTIFIER ASSY, W/BRUSH

main27362-34121i21R,22R..RX7#198408-198808

12V 55A

sub27362-63011

main27362-63011i2Y..YX70198502-198808

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27371-56070i2L#..LX7#198408-198808

12V 60A

sub27371-54412

main27371-63020i1G#,5M#..GX71,MX7#198408-198808

12V 60A,70A

sub27371-70300

main27371-72161i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27372-56070i2L#..LX7#198408-198808

12V 60A

main27372-63020i1G#,5M#..GX71,MX7#198408-198501

12V 60A

sub27372-87501

main27372-72100i1G#,5M#..GX71,MX7#198501-198808

12V 60A,70A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-43040i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27410-54180i2L#..LX7#198408-198808

12V 60A

27411PULLEY, ALTERNATOR

main27411-31042i21R,22R..RX7#198408-198808

12V 55A

main27411-43050i5M#..MX7#198408-198501

12V 60A

main27411-43051i5M#..MX73198702-198808

12V 60A

main27411-43120i5M#..MX7#198501-198702

12V 60A

main27411-54170i2L#..LX7#198408-198808

12V 60A

sub27411-54171

main27411-70051i1GGE..GX71198408-198501

12V 60A

main27411-70052i1GGE..GX71198501-198608

12V 60A

sub27411-70053

main27411-70090i1GE..GX71198408-198501

12V 60A

main27411-70091i1GE..GX71198501-198808

12V 60A,70A

main27411-72040i2Y..YX70198502-198808

12V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i21R,22R..RX7#198408-198808

12V 55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i21R,22R..RX7#198408-198808

12V 55A

main27441-63030i2Y..YX70198502-198808

12V 55A

main27441-64030i2L#..LX7#198408-198808

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-57060i2L#..LX7#198408-198606

12V 60A

sub27700-64030

sub90099-05118

main27700-63010i21R,22R,2Y..RX7#,YX70198408-198808

12V 55A

main27700-63021i1G#,5M#..GX71,MX7#198408-198808

12V 60A,70A

sub27700-70030

main27700-64030i2L#..LX7#198606-198808

12V 60A

main27700-70030i5ME..MX73..XL198711-198808

12V 60A,S.ARABIA TAXI SPEC

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9011908654

main90119-08654

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9165540616

main91655-40616

9451101400

main94511-01400

9451201000

main94512-01000

38 parts on this diagram · 5 diagrams in section
