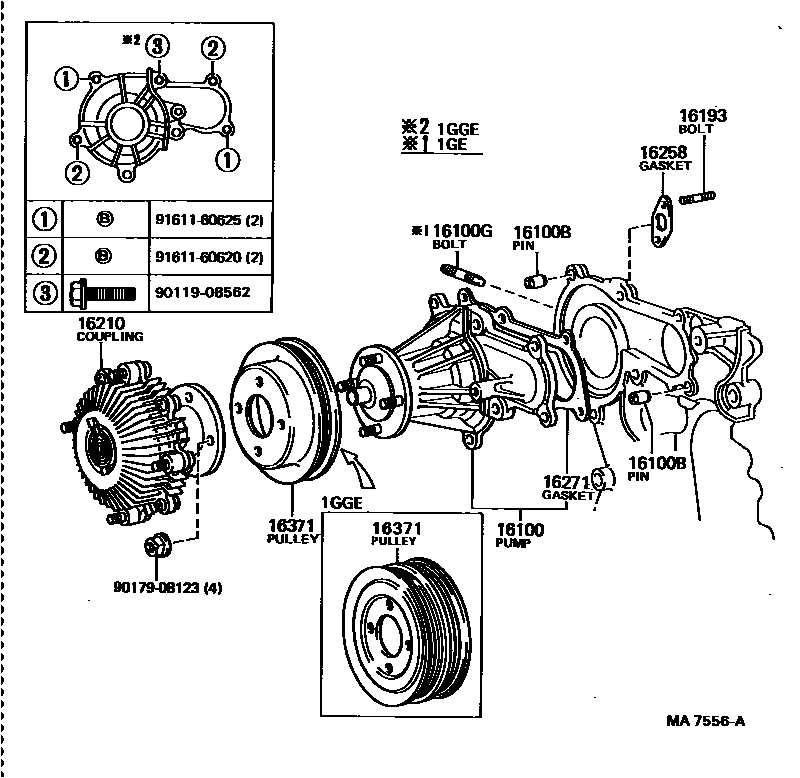

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-39345i21R,22R..RX7#198408-198808

main16100-49655i5MGE..MX73198408-198808

main16100-49705i5ME..MX73..GEN198408-198808

main16100-49745i5ME..MX73..ME198411-198608

main16100-49765i5ME..MX73..ME198608-198808

main16100-59137i2L#..LX7#198408-198808

main16100-79015i1GE..GX71198408-198808

main16100-79025i1GGE..GX71198408-198608

main16100-79035i2Y..YX70198502-198704

main16100-79036i2Y..YX70198704-198808

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010i1G#..GX71198408-198808

16100GBOLT, STUD(FOR WATER PUMP SET)

main16193-38030i21R,22R..RX7#198408-198808

main16194-70010i1GE..GX71198408-198808

main90116-08111i5ME..MX7#198408-198808

L=57,S=13&13

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1G#..GX71198408-198808

main16193-41031i5ME..MX7#198408-198808

L=42,S=16&20

main16193-45100i5ME..MX7#198408-198808

16210COUPLING ASSY, FLUID

main16210-38050i21R,22R..RX7#198408-198808

main16210-41180i5ME..MX73..ME198411-198611

main16210-43010i5ME..MX73..ME198611-198808

main16210-45100i5ME..MX73..GEN198408-198808

main16210-45110i1GGE..GX71198408-198608

main16210-54060i2L#..LX7#198408-198808

main16210-70021i1GE..GX71198408-198506

main16210-70022i1GE..GX71198506-198808

main16210-72010i2Y..YX70198502-198808

16258GASKET(FOR HEATER RETURN)

main16258-15011i1G#..GX71198408-198808

16271GASKET, WATER PUMP

main16124-70010i1GE..GX71198408-198808

main16124-88300i1GGE..GX71198408-198608

main16271-41011i5ME..MX7#198408-198808

main16271-54012i2L#..LX7#198408-198808

16371PULLEY, FAN

main16173-35020i21R,22R..RX7#198408-198808

main16173-43040i5M#..MX7#198408-198808

main16371-54020i2L#..LX7#198408-198808

main16371-70020i1GE..GX71198408-198808

main16371-71010i2Y..YX70198502-198808

main16371-88301i1GGE..GX71198408-198608

9011908562

main90119-08562

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

12 parts on this diagram · 6 diagrams in section
