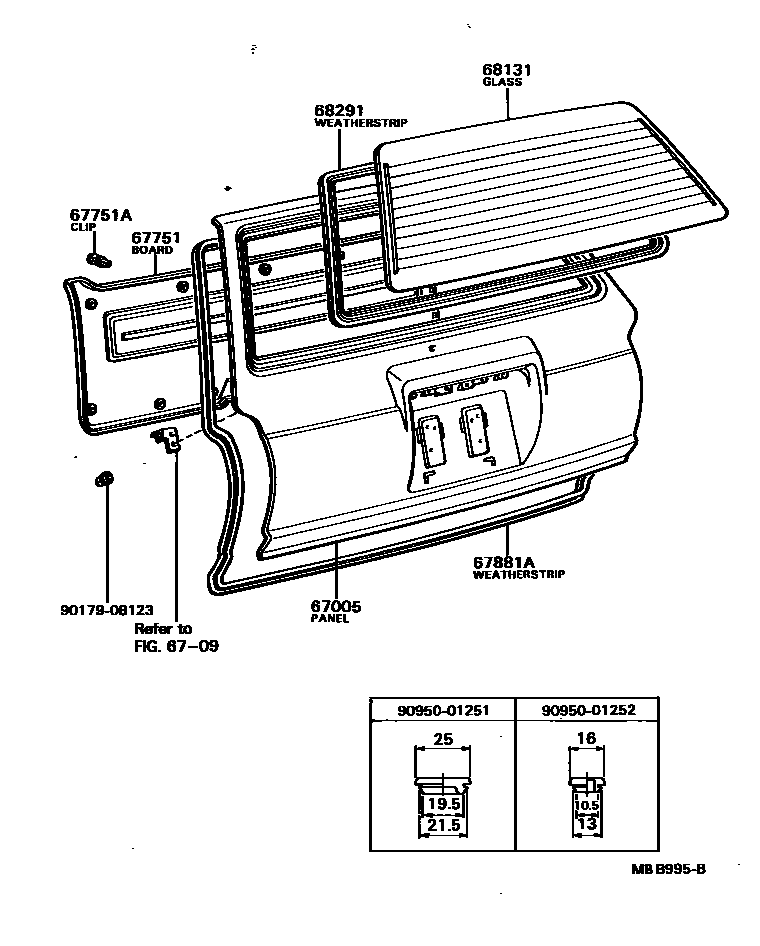

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-91689iLX60,RX6#..WG..(GEN,SA); LX60,RX60..WG..LHD..EUG198009-198208

main67005-91A01iLX60,MX62,RX6#..WG198009-198208

W/REAR WIPER

main67005-91A10iLX60..WG;RX60..WG..GEN;RX60..WG..EUG198208-198407

main67005-91A11iRX60..WG..ME198302-198407

W/RR WIPER

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67751BOARD, BACK DOOR TRIM

main67750-91601-01iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

main67750-91601-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

main67750-91601-06iLX60,MX62,RX6#..WG198009-198208

D-BROWN,BROWN,TRIM4#

main67750-91602-06iLX60,MX62,RX60..WG198208-198504

D-BROWN,BROWN,TRIM4#

main67750-91602-12iLX60,MX62,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67750-91602-14iLX60,MX62,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08114-11×13iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

main90467-08114-22iLX60,MX62,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main90467-08114-24×13iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

main90467-08114-34iLX60,MX62,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

main90467-08114-36×13iLX60,MX62,RX6#..WG198009-198504

D-BROWN,BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-91255iLX60,MX62,RX6#..WG198009-198504

68131GLASS, BACK DOOR

main68105-91612iRX60..WG..EUG;LX60,MX62,RX62..WG;RX60..WG..(GEN,ME,SA)198009-198504

*EHTT,T=4.0

main68105-91614iLX60..WG..STD198009-198208

*EHT,T=4.0

main68105-91627iLX60,RX60..WG..LHD..EUR198009-198407

*EHTT,T=4.0,COLD SPEC

main68131-91620iLX60..WG..STD..GEN198009-198208

*TEM,T=4.0

main68131-91621iLX60,RX60..WG..(GEN,ME)198009-198407

*TT,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-91607iLX60..WG..STD198009-198208

main68291-91609iLX60,MX62,RX6#..WG..(DLX,GL,XL)198009-198504

W/MOULDING

9017908123

main90179-08123

9095001251

main90950-01251

9095001252

main90950-01252

10 parts on this diagram · 1 diagram in section
