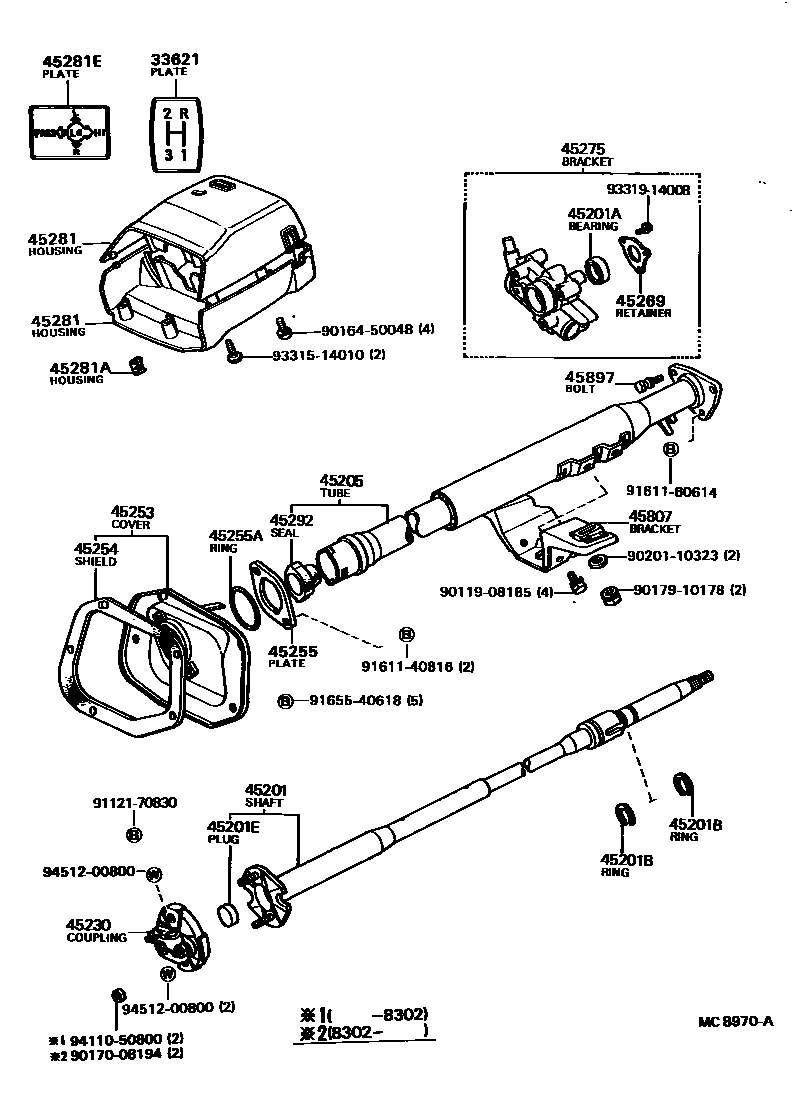

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0011 1 0012 1

33621PLATE, CONTROL LEVER CAUTION

main33621-22050iRX60..RHD..3H198009-198208

main33621-22060iRX60..LHD..3H198009-198108

main33621-30020iRX60..4H198108-198407

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22050iRX60..SA198009-198504

W/TILT STEERING

main45210-22050iGX6#;LX60..EUG198208-198504

W/POWER STEERING

main45210-22060iRX6#,TX62..RHD..(GEN,SA)198009-198504

main45210-22070iRX60..RHD..3H;LX60..RHD..EUG198009-198208

W/POWER STEERING

main45210-22080iLX60..LHD198009-198407

main45210-22090iRX60..RHD..EUG198009-198208

main45210-22100iRX60..LHD..EUR198009-198407

main45210-22110iLX60..LHD..DLX..EUG198009-198407

W/POWER STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iRX60..(3FC,4F,4FC,5F)..ME198009-198504

UPR,W/TILT STEERING

main90363-18038iLX60,RX6#,TX62198009-198504

main90363-28001iRX60..(3FC,4F,4FC,5F)..ME198009-198504

LWR,W/TILT STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGX6#,LX60,MX6#,RX6#,TX62198009-198504

T=1.20,T=1.2

main90520-17196iGX6#,LX60,RX6#,TX62198009-198504

T=1.35-1.45,T=1.4

45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)

main90333-21008iLX60,RX62,TX62;RX60..GEN,ME,SA,SAA198009-198504

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-20080iLX60..LHD..EUG198009-198407

W/TILT STEERING

main45870-22090iMX6#;RX60..RHD..(3FC,4F,4FC,5F)..GEN198009-198504

W/TILT STEERING

main45870-22090iLX60..RHD198208-198407

main45870-22100iRX6#,TX62..RHD..(GEN,SA)198009-198504

main45870-22110iRX60..LHD..(GEN,ME,SAA)198009-198407

main45870-22130iRX60..RHD..EUG198009-198208

main45870-22140iRX60..LHD..EUR198009-198407

45230COUPLING ASSY, FLEXIBLE

main45230-14020iLX60,MX6#,TX62198009-198504

45253COVER, STEERING COLUMN HOLE

main45025-22010iGX6#,LX60..RHD198009-198504

main45025-22020iRX60..RHD..3H198009-198208

main45025-22030iRX60..LHD..(3H,4H)198009-198407

main45025-22040iGX6#,LX60..LHD198009-198407

main45025-22050iRX60..RHD..EUG198009-198208

main45025-22060iRX60..LHD..EUR198009-198407

45254SHIELD, STEERING COLUMN HOLE

main45254-22031iGX6#,LX60,MX6#,RX6#,TX62198009-198504

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iRX6#..GEN,ME,SA,SAA198009-198504

main45255-12030iRX60..EUR198009-198407

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iLX60,MX6#,TX62198009-198504

main90301-60122iRX60..EUR198009-198407

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iLX60,RX6#,TX62198009-198504

sub45269-35010

45275BRACKET, STEERING COLUMN, UPPER

main45280-22190iLX60..LHD..DLX..GEN198009-198208

W/TILT STEERING

sub45280-22191

main45280-22200iRX60..LHD..(3FC,4F,5F)..GEN198009-198208

W/TILT STEERING

sub45280-60130

main45280-22210iLX60..RHD..DLX..GEN198009-198108

W/TILT STEERING

sub45280-22211

sub82711-14530

sub93319-13008

main45280-22211iRX60..SA198108-198504

W/TILT STEERING

main45280-22251iLX60,RX60..LHD198208-198407

main45280-22271iLX60..LHD..EUG198208-198407

W/TILT STEERING

sub45280-22281

main45280-24030iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198102-198209

sub45280-24031

main45280-24031iRX60,TX62..RHD..(DLX,STD)198209-198504

main45280-30200iLX60..RHD..5F198009-198102

sub45280-24030

main45280-30210iRX60..RHD..3H198009-198208

sub45280-30211

main45280-30230iLX60,RX60..LHD198009-198208

sub45280-30231

45281HOUSING, STEERING COLUMN

main45286-22250-01iLX60..RHD..DLX198009-198208

UPR,BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45286-22250

main45286-22250-04iLX60..RHD..DLX198009-198208

UPR,BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-22250

main45286-22250-06iMX62,RX60..RHD..(3FC,4F,4FC,5F)..(ARL,GEN)198009-198208

UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4#

sub45286-22250

main45286-22250-06iRX60..SXL198107-198208

UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-22250

main45286-22280-01iRX60..RHD..3H198009-198208

UPR,BLACK,BLACK,TRIM2#

main45286-22280-04iRX60..RHD..3H198009-198208

UPR,BLUE,BLUE,TRIM8#

main45286-22280-06iRX60..RHD..3H198009-198208

UPR,DARK BROWN,BROWN,TRIM0#,4#

main45286-22290-01iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

UPR,BLACK,BLACK,TRIM2#

main45286-22290-04iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

UPR,BLUE,BLUE,TRIM8#

main45286-22290-06iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

UPR,DARK BROWN,BROWN,TRIM0#,4#

main45286-22300-01iRX60..LHD..(3H,4H)198009-198208

UPR,BLACK,BLACK,TRIM2#

main45286-22300-04iRX60..LHD..(3H,4H)198009-198208

UPR,BLUE,BLUE,TRIM8#

main45286-22300-06iRX60..LHD..(3H,4H)198009-198208

UPR,DARK BROWN,BROWN,TRIM0#,4#

main45286-22310-01iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

UPR,BLACK,BLACK,TRIM2#

main45286-22310-04iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

UPR,BLUE,BLUE,TRIM8#

main45286-22310-06iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

UPR,DARK BROWN,BROWN,TRIM0#,4#

main45286-22340-02iTX62198208-198504

UPR,DEEP MAROON,RED/MAROON,TRIM3#

main45286-22340-04iRX60..RHD..DLX..GEN198208-198504

UPR,BLUE,BLUE,TRIM8#

main45286-22340-06iTX62198208-198504

UPR,DARK BROWN,BROWN,TRIM4#

main45286-22350-02iGX6#,LX60,MX6#,RX60..RHD198208-198504

UPR,DEEP MAROON,W/TILT STRG,RED/MAROON,TRIM3#

sub45286-22350

main45286-22350-04iGX6#,LX60,MX6#,RX60..RHD198208-198504

UPR,BLUE,W/TILT STRG,BLUE,TRIM8#

sub45286-22350

main45286-22350-06iGX6#,LX60,MX6#,RX60..RHD198208-198504

UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4#

sub45286-22350

main45286-22370-02iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

UPR,DEEP MAROON,RED/MAROON,TRIM3#

main45286-22370-04iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

UPR,BLUE,BLUE,TRIM8#

main45286-22370-06iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

UPR,DARK BROWN,BROWN,TRIM4#

main45286-22380-02iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

UPR,DEEP MAROON,W/TILT STRG,RED/MAROON,TRIM3#

main45286-22380-04iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

UPR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45286-22380-06iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

UPR,DARK BROWN,W/TILT STRG,BROWN,TRIM4#

main45286-22390-02iRX60..4H198208-198407

UPR,DEEP MAROON,RED/MAROON,TRIM3#

main45286-22390-04iRX60..4H198208-198407

UPR,BLUE,BLUE,TRIM8#

main45286-22390-06iRX60..4H198208-198407

UPR,DARK BROWN,BROWN,TRIM4#

main45286-60130-01iRX60..GL..ME198009-198208

UPR,BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45286-60130

main45286-60130-04iRX60..LHD..(3FC,4F,5F)..GEN198009-198208

UPR,BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-60130

main45286-60130-06iRX60..LHD..(3FC,4F,5F)..GEN198009-198208

UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4#

sub45286-60130

main45286-60130-06iRX60..GL..ME198009-198208

UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45286-60130

main45287-22170-01iMX62,RX60..RHD..(3FC,4F,4FC,5F)..(ARL,GEN)198009-198208

LWR,BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45287-22170

main45287-22170-04iLX60..RHD..DLX198009-198208

LWR,BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45287-22170

main45287-22170-06iLX60..RHD..DLX198009-198208

LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4#

sub45287-22170

main45287-22170-06iRX60..SXL198107-198208

LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45287-22170

main45287-22190-01iRX60..RHD..3H198009-198208

LWR,BLACK,BLACK,TRIM2#

main45287-22190-04iRX60..RHD..3H198009-198208

LWR,BLUE,BLUE,TRIM8#

main45287-22190-06iRX60..RHD..3H198009-198208

LWR,DARK BROWN,BROWN,TRIM0#,4#

main45287-22200-01iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

LWR,BLACK,BLACK,TRIM2#

main45287-22200-04iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

LWR,BLUE,BLUE,TRIM8#

main45287-22200-06iLX60,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198208

LWR,DARK BROWN,BROWN,TRIM0#,4#

main45287-22210-01iRX60..LHD..(3H,4H)198009-198208

LWR,BLACK,BLACK,TRIM2#

main45287-22210-04iRX60..LHD..(3H,4H)198009-198208

LWR,BLUE,BLUE,TRIM8#

main45287-22210-06iRX60..LHD..(3H,4H)198009-198208

LWR,DARK BROWN,BROWN,TRIM0#,4#

main45287-22220-01iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

LWR,BLACK,BLACK,TRIM2#

main45287-22220-04iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

LWR,BLUE,BLUE,TRIM8#

main45287-22220-06iLX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198208

LWR,DARK BROWN,BROWN,TRIM0#,4#

main45287-22250-02iRX60..RHD..DLX..GEN198208-198504

LWR,DEEP MAROON,RED/MAROON,TRIM3#

main45287-22250-04iTX62198208-198504

LWR,BLUE,BLUE,TRIM8#

main45287-22250-06iRX60..RHD..DLX..GEN198208-198504

LWR,DARK BROWN,BROWN,TRIM4#

main45287-22260-02iGX6#,LX60,MX6#,RX60..RHD198208-198504

LWR,DEEP MAROON,W/TILT STRG,RED/MAROON,TRIM3#

main45287-22260-04iGX6#,LX60,MX6#,RX60..RHD198208-198504

LWR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45287-22260-06iGX6#,LX60,MX6#,RX60..RHD198208-198504

LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-22280-02iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

LWR,DEEP MAROON,RED/MAROON,TRIM3#

main45287-22280-04iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

LWR,BLUE,BLUE,TRIM8#

main45287-22280-06iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)198208-198407

LWR,DARK BROWN,BROWN,TRIM4#

main45287-22290-02iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

LWR,DEEP MAROON,W/TILT STRG,RED/MAROON,TRIM3#

main45287-22290-04iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

LWR,BLUE,W/TILT STRG,BLUE,TRIM8#

main45287-22290-06iGX60,LX60,RX60..LHD..(3FC,4F,4FC,5F)..(GEN,ME)198208-198407

LWR,DARK BROWN,W/TILT STRG,BROWN,TRIM4#

main45287-22300-02iRX60..4H198208-198407

LWR,DEEP MAROON,RED/MAROON,TRIM3#

main45287-22300-04iRX60..4H198208-198407

LWR,BLUE,BLUE,TRIM8#

main45287-22300-06iRX60..4H198208-198407

LWR,DARK BROWN,BROWN,TRIM4#

main45287-60090-01iLX60..LHD..DLX198009-198208

LWR,BLACK,W/TILT STEERING,BLACK,TRIM2#

sub45287-60090

main45287-60090-04iRX60..LHD..(3FC,4F,5F)..GEN198009-198208

LWR,BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45287-60090

main45287-60090-06iLX60..LHD..DLX198009-198208

LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4#

sub45287-60090

main45287-60090-06iLX60..LHD..DLX198009-198208

LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM4#

sub45287-60090

45281AHOUSING, STEERING COLUMN, NO.2

main45289-22040-02iGX6#,MX6#,RX60..RHD..(4FC,5F)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub45289-22040

main45289-22040-04iGX6#,MX6#,RX60..RHD..(4FC,5F)198208-198504

BLUE,BLUE,TRIM8#

sub45289-22040

main45289-22040-06iGX6#,MX6#,RX60..RHD..(4FC,5F)198208-198504

DARK BROWN,BROWN,TRIM4#

sub45289-22040

45281EPLATE, SAFETY CAUTION

main45283-22010iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

45292SEAL, MAIN SHAFT LOWER DUST

main45292-22050iRX6#..GEN,ME,SA,SAA198009-198504

sub45292-22040

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-22030iMX6#;RX60..RHD..(3FC,4F,4FC,5F)..GEN198009-198504

W/TILT STEERING

main45082-22040iLX60..LHD..DLX..GEN198009-198407

W/TILT STEERING

main45807-22100iLX60,RX6#,TX62..RHD198009-198504

main45807-22130iLX60,RX60..LHD198009-198407

45897BOLT, STEERING LOCK SET

main45897-12030iLX60,RX6#,TX62..3FC,4F,5F198009-198407

main45897-14010iGX6#,LX60,RX60..3FC,4F,5F198208-198407

W/TILT STEERING

sub45897-12030

9011908185

main90119-08185

9016450048

main90164-50048

9017008194

main90170-08194

9017910178

main90179-10178

9020110323

main90201-10323

9112170830

main91121-70830

9161140816

main91611-40816

9161160614

main91611-60614

9165540618

main91655-40618

9331514010

main93315-14010

9331914008

main93319-14008

9411050800

main94110-50800

9451200800

main94512-00800

32 parts on this diagram · 8 diagrams in section
