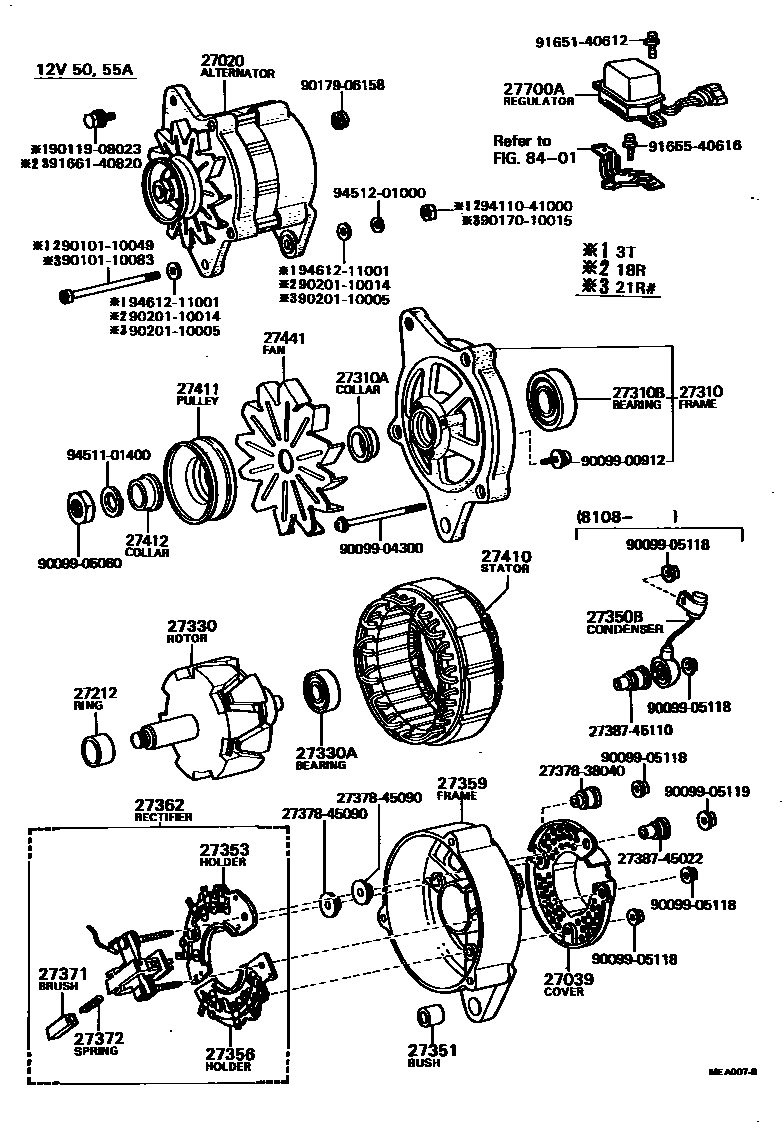

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

27020ALTERNATOR ASSY

main27020-34021i21R#,18R,3T..RX6#,TX62198009-198504

12V 55A,12V 55A

main27020-34051i21R..RX60..MTM..DLX..(ME,SAA)198009-198106

12V 50A,12V 50A

sub27020-34021

main27020-54012iL..LX60..5F198009-198407

12V 55A,12V 55A

main27020-54070iL..LX60..LHD..DLX..EUG198009-198407

12V 60A,12V 60A

main27060-43010i5ME..MX62198009-198308

12V 55A

main27060-43080i5ME..MX6#198308-198504

12V 60A

main27060-70030i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198208-198308

12V 60A

sub27060-70040

main27060-70040i1GE..GX61..LHD..4FC198208-198308

12V 65A,12V 65A

main27060-70080i1GE..GX61..LHD..4FC198308-198407

12V 60A,12V 60A

main27060-70120i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198308-198504

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-45110i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

sub27039-34022

main27039-56090iL..LX60..5F198009-198407

12V 55A

main27039-63040i5ME..MX6#198308-198504

12V 60A

sub27039-72110

main27039-70080i1GE..GX61..LHD..4FC198308-198407

12V 60A

sub27039-70081

main27039-70090i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198308-198504

12V 60A

sub27039-70091

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i21R#,3T..RX60,TX62198308-198504

12V 55A

main27412-45070i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 55A,60A,65A

main27412-54040iL..LX60198009-198407

12V 55A,60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

main27310-43090i5ME..MX6#198308-198504

12V 60A

main27310-45110i5ME..MX62198207-198308

12V 55A

main27310-54011iL..LX60..5F198009-198012

12V 55A

sub27310-54080

main27310-54012iL..LX60..5F198012-198407

12V 55A

sub27310-54080

main27310-54070iL..LX60..4FC..GEN198009-198011

12V 60A

sub27310-54080

main27310-54080iL..LX60..LHD..DLX..EUG198011-198407

12V 60A

main27310-61070i5ME..MX62198009-198207

12V 55A

main27310-70030i1GE..GX6#198208-198308

12V 60A,65A

main27310-70080i1GE..GX61..LHD..4FC198308-198407

12V 60A

main27310-70120i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198308-198504

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 50A,55A,60A,65A

main27412-31040i21R#,3T..RX60,TX62198308-198504

12V 55A

main90099-19251iL..LX60198009-198407

12V 55A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120iL..LX60198009-198407

12V 55A,60A

main90099-10125i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 50A,55A,60A,65A

main90099-10125i21R#,3T..RX60,TX62198308-198504

12V 55A

main90099-10141i1GE,5ME..GX6#,MX62198308-198309

12V 60A,OD=42

main90099-10152i1GE,5ME..GX6#,MX6#198309-198407

12V 60A,OD=43

main90099-10156i5ME..MX63198408-198504

12V 60A,OD=43

sub90099-10152

27330ROTOR ASSY, ALTERNATOR

main27330-15070i1GE..GX61..RHD;1GE,5ME..GX60,MX62;1GE..GX61..LHD..5F198009-198308

12V 55A,60A

sub27330-45090

main27330-43040i1GE..GX61..LHD..4FC198208-198308

12V 65A

main27330-45070i21R#,18R,3T..RX6#,TX62198009-198208

12V 50A,55A

sub27330-16030

main27330-54011iL..LX60..5F198009-198407

12V 55A

main27330-54070iL..LX60..LHD..DLX..EUG198009-198407

12V 60A

main27330-63010i21R#,3T..RX60,TX62198208-198504

12V 55A

main27330-63021i1GE..GX61..LHD..4FC198308-198407

12V 60A

sub27330-72100

main27330-63041i1GE..GX61..RHD;1GE,5ME..GX60,MX6#;1GE..GX61..LHD..5F198308-198504

12V 60A

sub27330-10020

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 50A,55A,60A,65A

main90099-10116i21R#,3T..RX60,TX62198308-198504

12V 55A

main90099-10140i1GE..GX6#198308-198504

12V 60A

27350FRAME ASSY, RECTIFIER END

main27350-54010iL..LX60..5F198009-198407

12V 55A

sub27350-57061

main27350-54070iL..LX60..LHD..DLX..EUG198009-198011

12V 60A

sub27350-57061

main27350-57061iL..LX60..4FC..GEN198011-198407

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i1GE,5ME..GX6#,MX62198009-198308

12V 55A,60A,65A

sub90099-52034

main90099-52065i21R#,18R,3T..RX6#,TX62198108-198504

12V 55A

sub90099-52034

main90099-52066iL..LX60..4FC..GEN198009-198407

12V 60A

sub90099-52035

main90099-52066iL..LX60..5F198108-198407

12V 55A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i21R#,18R,5ME,3T..MX62,RX6#,TX62198009-198308

12V 50A,55A

main27351-38051i21R#,3T..RX60,TX62198308-198504

12V 55A

main27351-56013iL..LX60198009-198407

12V 55A,60A

main27351-70010i1GE..GX6#198208-198504

12V 60A,65A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i21R#,18R,3T..RX6#,TX62198009-198208

12V 55A

main27353-34051i21R..RX60..MTM..GEN198009-198106

12V 50A

sub27353-34121

main27353-34121i21R#,3T..RX60,TX62198208-198504

12V 55A

main27353-54010iL..LX60..5F198009-198407

12V 55A

main27353-57070iL..LX60..LHD..DLX..EUG198009-198407

12V 60A

sub27353-54180

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i21R#,18R,3T..RX6#,TX62198009-198504

12V 55A

main27356-34051i21R..RX60..MTM..DLX..(ME,SAA)198009-198106

12V 50A

sub27356-34021

main27356-54010iL..LX60..5F198009-198407

12V 55A

main27356-57070iL..LX60..4FC..GEN198009-198407

12V 60A

sub27356-54170

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

main27359-43020i5ME..MX62198009-198308

12V 55A

main27359-43080i5ME..MX6#198308-198404

12V 60A

sub27359-43081

sub27370-63021

main27359-43081i5ME..MX6#198404-198504

12V 60A

sub27359-16081

main27359-70030i1GE..GX6#198208-198308

12V 60A,65A

main27359-70080i1GE..GX61..LHD..4FC198308-198404

12V 60A

sub27359-70081

sub27370-16011

main27359-70081i1GE..GX61..LHD..4FC198404-198407

12V 60A

main27359-70090i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198308-198404

12V 60A

sub27359-70091

sub27370-16011

main27359-70091i1GE..GX60;1GE..GX61..RHD;1GE..GX61..LHD..5F198404-198504

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i21R..RX60..MTM..DLX..(ME,SAA)198009-198106

12V 50A

sub27362-63011

main27362-34021i21R#,18R,3T..RX6#,TX62198009-198208

12V 55A

sub27362-63011

main27362-34121i21R#,3T..RX60,TX62198208-198504

12V 55A

sub27362-63011

main27362-43020i5ME..MX62198009-198308

12V 55A

main27362-43040i1GE..GX6#198208-198308

12V 60A,65A

27371BRUSH, ALTERNATOR

main27371-31011i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 50A,55A,60A,65A

main27371-31011i21R#,3T..RX60,TX62198308-198504

12V 55A

main27371-56070iL..LX60198009-198407

12V 55A,60A

sub27371-54412

main27371-63020i1GE,5ME..GX6#,MX6#198308-198504

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62198009-198308

12V 50A,55A,60A,65A

main27372-31011i21R#,3T..RX60,TX62198308-198504

12V 55A

main27372-56070iL..LX60198009-198407

12V 55A,60A

main27372-63020i1GE,5ME..GX6#,MX6#198308-198504

12V 60A

sub27372-87501

27410STATOR ASSY, ALTERNATOR

main27410-41080i21R..RX60..MTM..GEN198009-198106

12V 50A

main27410-41080i5ME..MX62198009-198308

12V 55A

main27410-43040i21R#,3T..RX60,TX62198308-198504

12V 55A

main27410-43040i21R#,1GE,3T..GX6#,RX60,TX62198208-198308

12V 55A,60A,65A

main27410-45120i21R#,18R,3T..RX6#,TX62198009-198208

12V 55A

sub27410-43040

main27410-54010iL..LX60..5F198009-198407

12V 55A

sub27410-64010

main27410-54070iL..LX60..LHD..DLX..EUG198009-198407

12V 60A

27411PULLEY, ALTERNATOR

main27411-31042i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

main27411-41071i5ME..MX62198009-198308

12V 55A

main27411-43080i5ME..MX6#198308-198504

12V 60A

main27411-45010i1GE..GX6#198208-198308

12V 60A,65A

main27411-54020iL..LX60198009-198407

12V 55A,60A

main27411-70090i1GE..GX6#198308-198504

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i21R#,18R,3T..RX6#,TX62198009-198504

12V 50A,55A

main27441-45110i1GE..GX61..RHD;1GE,5ME..GX60,MX62;1GE..GX61..LHD..5F198009-198308

12V 55A,60A

main27441-54040iL..LX60..5F198009-198407

12V 55A

main27441-54070iL..LX60..4FC..GEN198009-198407

12V 60A

main27441-70040i1GE..GX61..LHD..4FC198208-198308

12V 65A

27700AREGULATOR ASSY, GENERATOR

main27700-27050i21R#,18R,3T..RX6#,TX62198009-198208

12V 50A,55A

sub27700-54030

main27700-43010i1GE,5ME..GX6#,MX62198009-198308

12V 55A,60A,65A

main27700-54030iL..LX60..5F198009-198208

12V 55A

sub27700-54040

main27700-57060iL..LX60..4FC..GEN198009-198407

12V 60A

sub27700-64030

sub90099-05118

main27700-63010iL..LX60..5F198208-198407

12V 55A

main27700-63021i1GE,5ME..GX6#,MX6#198308-198504

12V 60A

sub27700-70030

main27700-63040i21R#,3T..RX60,TX62198208-198504

12V 55A

sub27700-63010

8401

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110083

main90101-10083

9011908023

main90119-08023

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9020110014

main90201-10014

9165140612

main91651-40612

9165540616

main91655-40616

9166140820

main91661-40820

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

46 parts on this diagram · 7 diagrams in section
