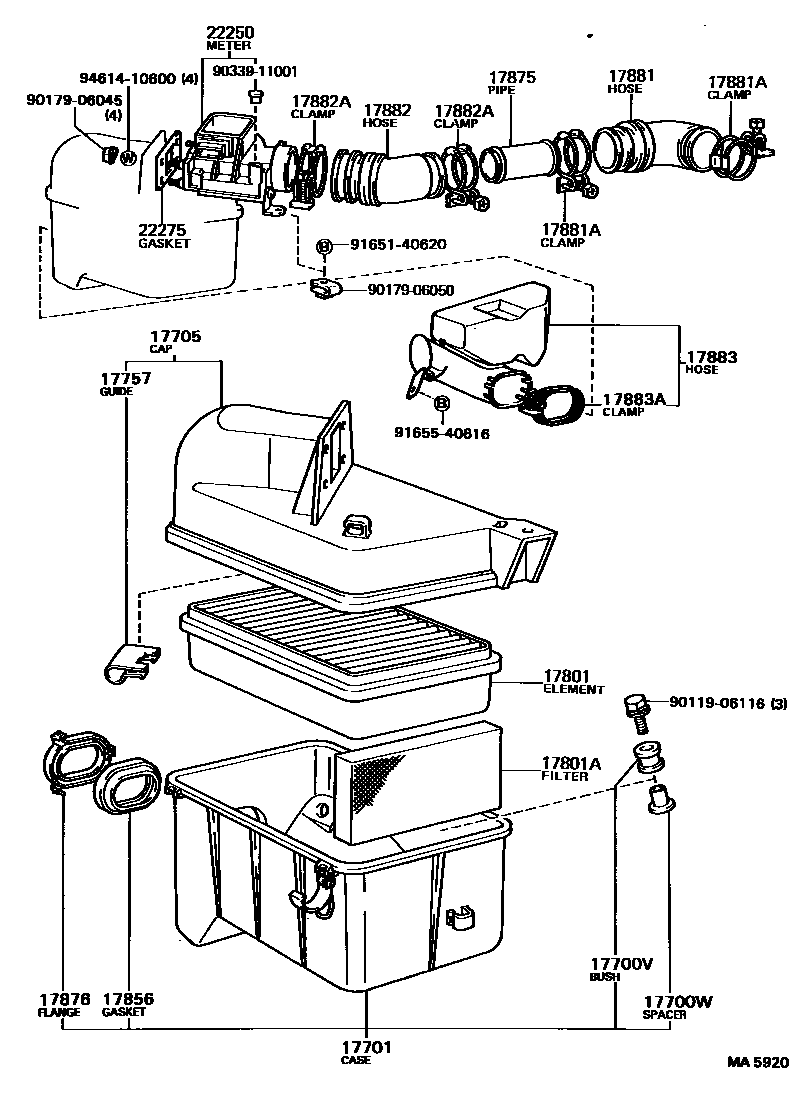

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-26201i3T..TX62198107-198206

main17700-26290i3T..TX62198206-198504

main17700-37050i21R..RX60..GEN,ME,SA,SAA198009-198108

W/O HOT AIR INTAKE

sub12262-35010

main17700-37060i21R..RX60..EUR,GEN198009-198101

W/HOT AIR INTAKE

main17700-37061i21R..RX60..EUR,GEN198101-198108

W/HOT AIR INTAKE

sub12262-35010

main17700-37070i21RC..RX60198009-198101

main17700-37071i21RC..RX60198101-198108

sub12262-35010

main17700-37090i21R..RX60..GEN,ME,SA198108-198208

W/O HOT AIR INTAKE

main17700-37100i21R..RX60..EUR,GEN198108-198208

W/HOT AIR INTAKE

main17700-37110i21RC..RX60198108-198208

main17700-37120i21R..RX60..EUG198208-198407

main17700-37130i21RC..RX60198208-198407

main17700-37140i21R..RX60..GEN,ME,SA198208-198407

W/O HOT AIR INTAKE

main17700-37160i21R..RX60198408-198504

main17700-43010i5ME..MX6#198009-198504

ENGINE

main17700-43020i5ME..MX62198009-198407

AIR PUMP

main17700-54120iL..LX60198009-198208

main17700-54200iL..LX60198208-198407

17700VBUSH(FOR AIR CLEANER)

main90385-08005×3i1GE..GX6#198208-198504

17700WSPACER(FOR AIR CLEANER)

main90561-06003×3i1GE..GX6#198208-198504

17701CASE SUB-ASSY, AIR CLEANER

main17701-70010i1GE..GX6#198208-198504

17705CAP SUB-ASSY, AIR CLEANER

main17705-25013i3T..TX62198107-198206

main17705-26080i3T..TX62198206-198504

main17705-35030i21R#..RX60198009-198108

sub12262-35010

main17705-35060i21R#..RX60198108-198208

main17705-37050i21R..RX60..EUG198208-198407

main17705-43010i5ME..MX62198009-198407

AIR PUMP

main17705-54060iL..LX60198208-198407

main17705-70010i1GE..GX6#198208-198504

17757GUIDE, AIR CLEANER OUTLET

main17757-70010i1GE..GX6#198208-198504

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i3T..TX62198107-198504

main17801-37010i21R#..RX60198009-198504

DUST AREA

main17801-41090i21R#..RX60198009-198504

main17801-44080i5ME..MX62198009-198407

AIR PUMP

main17801-45010i5ME..MX6#198009-198504

ENGINE

main17801-54050iL..LX60198009-198407

main17801-70010i1GE..GX6#198208-198504

17801APREFILTER

main17813-70010i1GE..GX6#198208-198504

17856GASKET, AIR INTAKE FLANGE

main17856-70010i1GE..GX6#198208-198504

17875PIPE, INTAKE AIR CONNECTOR

main17875-41031i5ME..MX6#198009-198504

main17875-70010i1GE..GX6#198208-198504

17876FLANGE, AIR INTAKE

main17876-70010i1GE..GX6#198208-198504

17881HOSE, AIR CLEANER, NO.1

main17881-37030i21R#..RX60198009-198208

sub17881-35060

main17881-41051i5ME..MX6#198009-198504

main17881-54100iL..LX60198009-198407

main17881-70010i1GE..GX6#198208-198504

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2iL..LX60198009-198308

main96111-10710iL..LX60198308-198407

17882HOSE, AIR CLEANER, NO.2

main17882-25010i3T..TX62198107-198504

main17882-34120i21R#..RX60198009-198504

main17882-43040i5ME..MX6#198009-198504

main17882-54060iL..LX60198009-198208

main17882-54080iL..LX60198208-198407

main17882-70010i1GE..GX6#198208-198504

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i3T..TX62198107-198504

CLEANER SIDE

main90460-01016i21R#..RX60198009-198504

CLEANER SIDE

sub90460-01055

main90460-65001i21R#..RX60198208-198504

BODY SIDE

main96111-10690iL..LX60198009-198208

CLEANER SIDE

main96111-10710i5ME..MX6#198009-198504

PIPE SIDE,ID=71

main96111-10730iL..LX60198208-198407

CLEANER SIDE

main96111-10800i5ME..MX6#198009-198504

CLEANER SIDE,ID=80

17883HOSE, AIR CLEANER, NO.3

main17883-25010i3T..TX62198009-198208

main17883-54010iL..LX60198009-198011

main17883-54020iL..LX60198011-198208

main17883-54021i21R#..RX60198208-198504

main17883-54030iL..LX60198208-198407

main17883-70020i1GE..GX6#198208-198504

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01027i1GE..GX6#198208-198504

main90460-65001iL..LX60198009-198011

main90460-67001iL..LX60198011-198407

main90460-67002i21R#..RX60198208-198504

22250METER ASSY, INTAKE AIR FLOW

main22250-43060i5ME..MX6#198009-198504

main22250-70011i1GE..GX60198208-198401

main22250-70012i1GE..GX60..GEN,SA198401-198504

main22250-70040i1GE..GX60..ME198401-198407

SAUDI ARABIA SPEC

22275GASKET, AIR FLOW METER

main22275-41010i5ME..MX6#198009-198504

9011906116

main90119-06116

9017906045

main90179-06045

9017906050

main90179-06050

9033911001

main90339-11001

9165140620

main91651-40620

9165540616

main91655-40616

9461410600

main94614-10600

26 parts on this diagram · 7 diagrams in section
