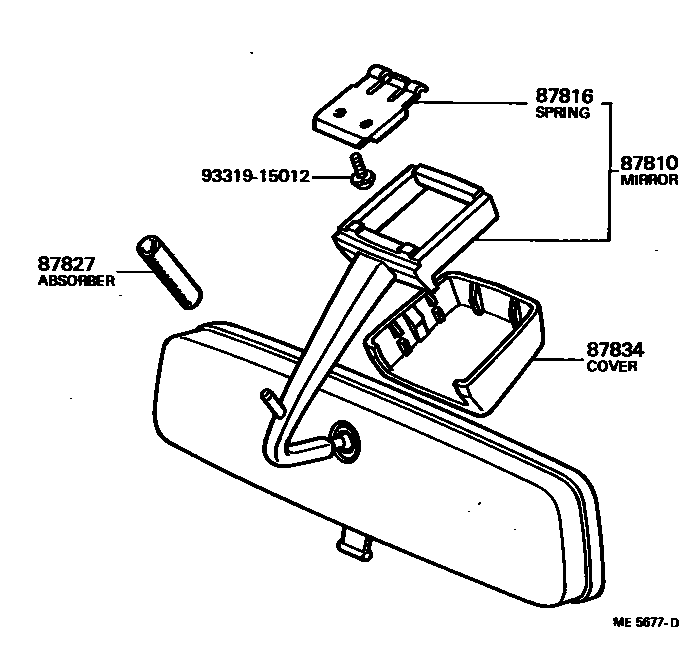

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
NON-GLARE TYPE
EEC SPEC.,GRAY; GRAY
NON-GLARE TYPE
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#,2#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
IVORY,IVORY,TRIM2#,3#
BEIGE,BEIGE,TRIM4#
GRAY, EEC SPEC.,GRAY,TRIM1#,2#; GRAY,GRAY,TRIM1#,2#
BEIGE, EEC SPEC.,BEIGE,TRIM4#; BEIGE,BEIGE,TRIM4#
BEIGE, EEC SPEC.,BEIGE,TRIM4#; BEIGE,BEIGE,TRIM4#
IVORY, EEC SPEC,,IVORY,TRIM2#,3#; IVORY,IVORY,TRIM2#,3#
9331915012
main93319-15012
5 parts on this diagram · 2 diagrams in section
