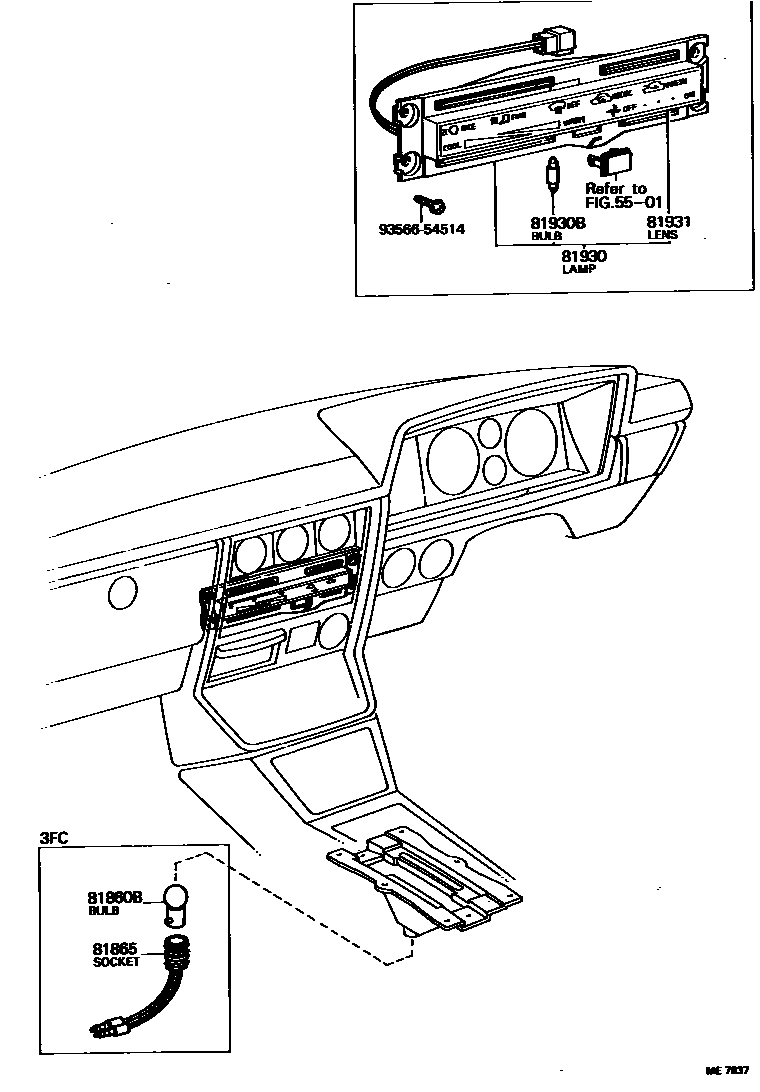

INDICATOR

5501

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iMX3#,RX3#,TX30..3FC197612-198008

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-22020iMX3#,RX3#,TX30..3FC197612-198008

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-22040iMX3#,RX3#..RHD197612-197808

sub81930-22041

main81930-22041iMX3#,RX3#,TX30..RHD197808-198008

main81930-22050iRX3#..LHD197612-197808

sub81930-22051

main81930-22051iRX3#..LHD197808-198008

main81930-22070iRX3#..RHD197612-197808

W/BOOST VENTILATOR

sub81930-22071

main81930-22071iRX3#..RHD197808-198008

W/BOOST VENTILATOR

main81930-22080iRX3#..LHD197612-197808

W/BOOST VENTILATOR

sub81930-22081

main81930-22081iRX3#..LHD197808-198008

W/BOOST VENTILATOR

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11010iMX3#,RX3#,TX30197612-198008

12V 2W,12V 2W

81931LENS, HEATER CONTROL INDICATOR

main81931-22040iMX3#,RX3#..RHD197612-197808

main81931-22041iMX3#,RX3#,TX30..RHD197808-198008

main81931-22050iRX3#..LHD197612-197808

main81931-22051iRX3#..LHD197808-198008

main81931-22070iRX3#..RHD197612-197808

W/BOOST VENTILATOR

main81931-22071iRX3#..RHD197808-198008

W/BOOST VENTILATOR

main81931-22080iRX3#..LHD197612-197808

W/BOOST VENTILATOR

main81931-22081iRX3#..LHD197808-198008

W/BOOST VENTILATOR

9356654514

main93566-54514

7 parts on this diagram · 1 diagram in section
