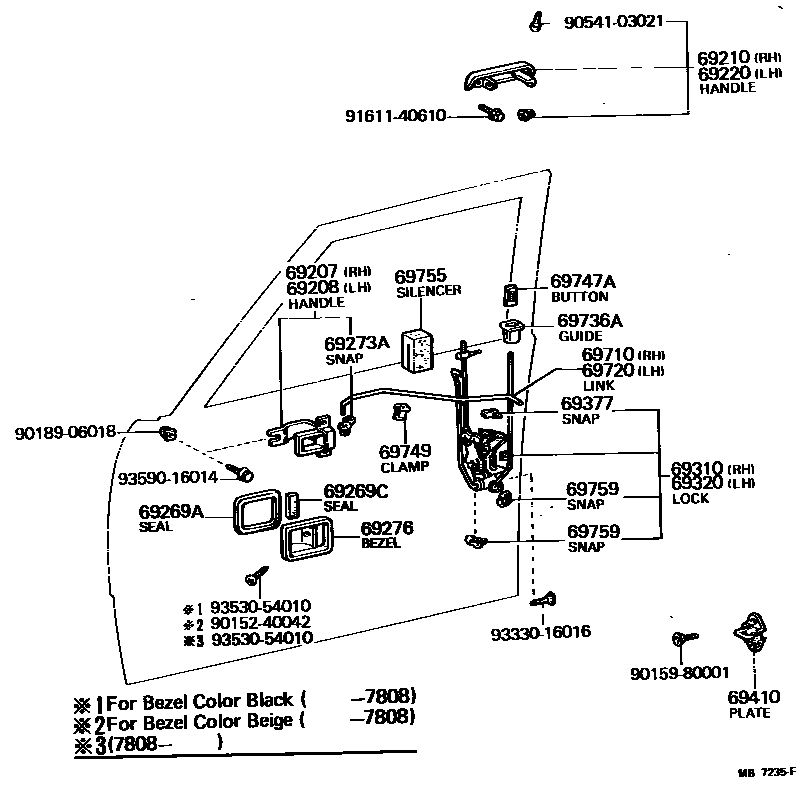

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69207-20030iMX3#,RX3#,TX30197612-198008

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69208-20020iMX3#,RX3#,TX30197612-198008

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22030iMX3#,RX3#,TX30197612-198008

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22030iMX3#,RX3#,TX30197612-198008

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-12010iMX3#,RX3#,TX30197612-198008

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iMX3#,RX3#,TX30197612-198008

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69273-30020iMX3#,RX3#,TX30197612-198008

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-30020iMX32..SA197707-197808

main69277-22030-01iMX3#,RX3#..DLX,STD197612-197808

BLACK,BLACK,TRIM1#,2#

main69277-22030-01iMX3#,RX3#,TX30197808-198008

BLACK,BLACK,TRIM2#

main69277-22030-02iMX3#,RX3#,TX30197808-198008

DARK WINE,RED/MAROON,TRIM3#

main69277-22030-05iMX3#,RX3#,TX30197612-198008

BEIGE,BEIGE,TRIM4#

69310LOCK ASSY, FRONT DOOR, RH

main69310-22040iMX3#,RX3#..SED,WG197612-197708

main69310-22041iMX3#,RX3#..(SED,WG)..(DLX,SDX,STD)197808-197912

sub69310-22042

sub69759-22010

main69310-22042iMX3#,RX3#..(SED,WG)..(DLX,STD)..(ARL,EUR,GEN)197912-198008

main69310-22051iRX30..RHD..GL197808-197912

FOR POWER WINDOW

sub69310-22052

sub69759-22010

main69310-22052iRX30..RHD..GL..GEN197912-198008

FOR POWER WINDOW

main69310-22060iMX3#,RX3#..SED,WG197708-197808

main69310-22061iRX30..SED..LHD..GL197808-197912

sub69310-22062

sub69759-22010

main69310-22062iRX30..SED..LHD..GL197912-198008

main69310-22070iRX30..RHD..GL197808-197912

W/RETAINER SW.

sub69310-22071

sub69759-22010

main69310-22071iRX30..RHD..GL..GEN197912-198008

W/RETAINER SW.

main69310-22080iRX30..SED..LHD..4F..DLX..GEN197908-197912

EXTRA INTERIOR

sub69310-22081

sub69759-22010

main69310-22080iRX30..SED..LHD..GL197808-197912

FOR POWER WINDOW

sub69310-22081

sub69759-22010

main69310-22081iRX30..SED..LHD..4F..DLX..GEN197912-198008

EXTRA INTERIOR

main69310-22081iRX30..SED..LHD..GL197912-198008

FOR POWER WINDOW

main69310-95800iRX30..HT197612-197808

main69310-95802iRX30..HT197808-197912

main69310-95805iRX30..HT..GL197808-197912

FOR POWER WINDOW

main69310-95806iRX30..HT197912-198008

main69310-95809iRX30..HT..GL197912-198008

FOR POWER WINDOW

69320LOCK ASSY, FRONT DOOR, LH

main69320-22040iMX3#,RX3#..SED,WG197612-197708

sub69320-22060

main69320-22041iMX3#,RX3#..(SED,WG)..(DLX,SDX,STD)197808-197912

sub69320-22042

sub69759-22020

main69320-22042iMX32,RX3#,TX30..SA197912-198008

main69320-22051iRX30..RHD..GL197808-197912

FOR POWER WINDOW

sub69320-22052

sub69759-22020

main69320-22052iRX30..RHD..GL..GEN197912-198008

FOR POWER WINDOW

main69320-22060iMX3#,RX3#..SED,WG197708-197808

main69320-22061iRX30..SED..LHD..GL197808-197912

W/RETAINER SW.

sub69320-22062

sub69759-22020

main69320-22062iRX30..SED..LHD..GL197912-198008

W/RETAINER SW.

main69320-22070iRX30..SED..LHD..4F..DLX..GEN197908-197912

EXTRA INTERIOR,W/RETAINER SW.

sub69320-22071

sub69759-22020

main69320-22070iRX30..SED..LHD..GL197808-197912

FOR POWER WINDOW

sub69320-22071

sub69759-22020

main69320-22071iRX30..SED..LHD..4F..DLX..GEN197912-198008

FOR POWER WINDOW

main69320-22071iRX30..SED..LHD..GL197912-198008

EXTRA INTERIOR,W/RETAINER SW.

main69320-95801iRX30..HT197612-197808

main69320-95804iRX30..HT..DLX197808-197912

main69320-95806iRX30..HT..GL197808-197912

FOR POWER WINDOW

main69320-95807iRX30..HT..GL197808-197912

main69320-95809iRX30..HT..DLX197912-198008

main69320-95811iRX30..HT..GL197912-198008

FOR POWER WINDOW

main69320-95812iRX30..HT..GL197912-198008

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iRX30..HT197612-198008

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iMX3#,RX3#,TX30197612-198008

sub69410-89103

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main69711-95800iRX30..HT197612-198008

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main69712-95801iRX30..HT197612-198008

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-22020iMX3#,RX3#,TX30..SED,WG197708-198008

sub69736-22021

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020iMX3#,RX3#..SED,WG197612-197808

sub69741-32010

main69741-20020-01iMX3#,RX3#,TX30..SED,WG197808-198008

BLACK,BLACK,TRIM2#

sub69741-20020

sub69741-32010

main69741-20020-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub69741-20020

sub69741-32010

main69741-20020-05iMX3#,RX3#,TX30..SED,WG197808-198008

BEIGE,BEIGE,TRIM4#

sub69741-20020

sub69741-32010

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iRX30..HT197612-198008

main69749-12030iRX30..HT198001-198008

69755SILENCER, FRONT DOOR LOCK LINK

main69759-30021iMX3#,RX3#,TX30..SED,WG197612-198008

main69759-95500iRX30..HT197612-198008

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iMX3#,RX3#,TX30197612-198008

9015240042

main90152-40042

9015980001

main90159-80001

9018906018

main90189-06018

9054103021

main90541-03021

9161140610

main91611-40610

9333016016

main93330-16016

9353054010

main93530-54010

9359016014

main93590-16014

27 parts on this diagram · 2 diagrams in section
