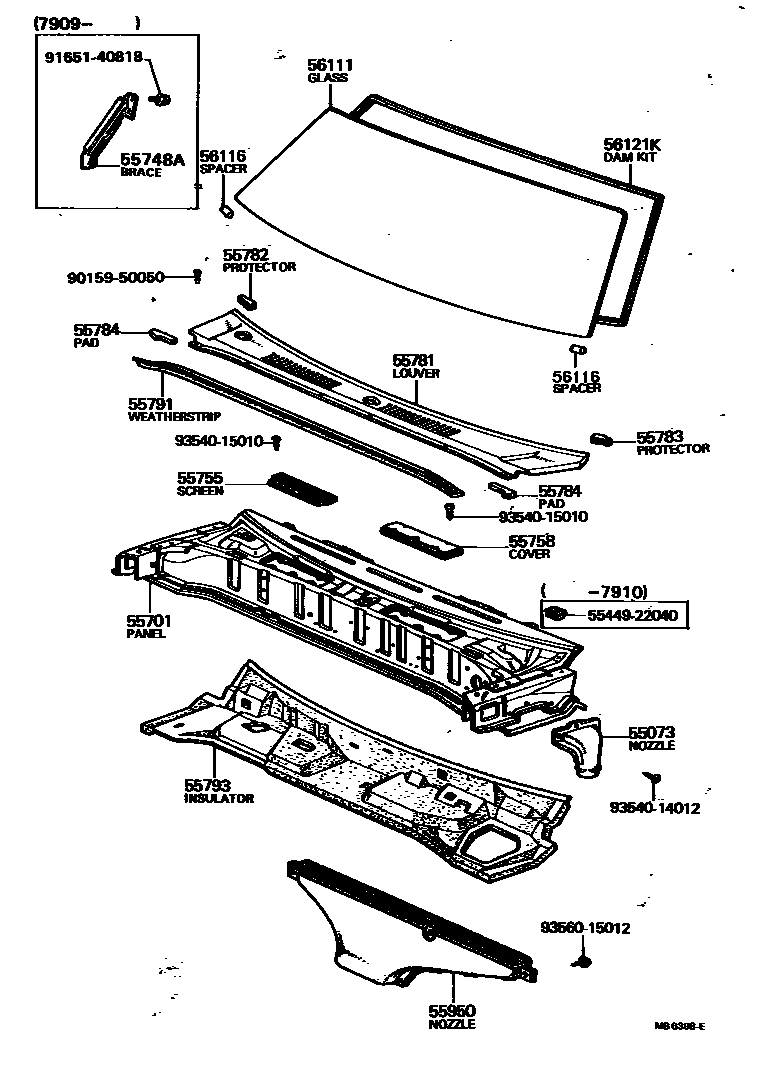

COWL PANEL & WINDSHIELD GLASS

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010iMX3#,RX3#,TX30197612-198008

55701PANEL SUB-ASSY, COWL

main55700-22120iRX3#..LHD197612-197808

main55700-22121iRX3#..LHD197808-198008

main55700-22150iTX30198001-198008

main55700-22200iMX3#,RX3#..RHD197612-198008

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-22020iMX3#,RX3#,TX30..RHD197909-198008

main55748-22030iRX3#..LHD197909-198008

55755SCREEN, HEATER AIR DUCT

main55731-22010iMX3#,RX3#,TX30197806-198008

55758COVER, HEATER AIR DUCT

main55077-22020iMX3#,RX3#,TX30..RHD197612-198008

main55077-22030iRX3#..LHD197612-198008

55781LOUVER, COWL VENTILATOR

main55781-22070iRX3#..LHD197612-198008

main55781-22080iMX3#,RX3#,TX30..RHD197612-198008

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55788-22040iMX3#,RX3#,TX30197612-198008

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55789-22030iMX3#,RX3#,TX30197612-198008

55784PAD, COWL OUTER PANEL, NO.1

main55783-22020iMX3#,RX3#,TX30197612-198008

FOR RH.

main55784-22020iMX3#,RX3#,TX30197612-198008

FOR LH.

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22010iMX3#,RX3#,TX30197612-198008

55793INSULATOR, COWL TOP PANEL, NO.1

main55787-22040iMX3#,RX3#,TX30..RHD197612-198008

main55787-22050iRX3#..LHD..MTM197612-198008

main55787-22070iMX3#,RX3#..RHD..3FC197612-197806

main55787-22080iRX3#..LHD..3FC197612-197806

55950NOZZLE ASSY, DEFROSTER

main55950-22010iRX3#..LHD197612-198008

main55950-22020iMX3#,RX3#,TX30..RHD197612-198008

56111GLASS, WINDSHIELD

main56111-22100iRX3#..STD..EUG197612-198008

TP.T=5.0

main56111-22110iRX3#..(SED,WG)..EUG197612-198008

TN.TP.T=5.0

main56111-22120iRX3#..(SED,WG)..(EUR,GEN)197612-198008

TN.LM.T=4.9

main56111-22130iMX32,RX30,TX30..SA197612-198008

LM.T=4.9

main56111-22140iRX3#..(SED,WG)..(DLX,GL)..GEN197808-197911

TN.LM.T=4.9,SUN SHADE

main56111-22141iRX3#..(SED,WG)..(DLX,GL)..GEN197911-198008

TN.LM.T=4.9,SUN SHADE

main56111-22150iMX3#..ARL197908-198008

LM.T=5.3

main56111-95800iRX30..HT197612-198008

TN.TP.T=5.0

main56111-95801iRX30..HT197612-198008

TN.LM.T=5.3

main56111-95802iRX30..HT..LHD..GEN197808-197911

TN.LM.T=5.3,SUN SHADE

main56111-95803iRX30..HT..LHD..GEN197911-198008

TN.LM.T=5.3,SUN SHADE

56116SPACER, WINDSHIELD GLASS

main56116-20040iRX30..HT197612-198008

main56116-30020iMX3#,RX3#,TX30..SED,WG197612-198008

56121KDAM KIT, WINDSHIELD GLASS

main04562-30020iMX3#,RX3#,TX30..SED,WG197612-198008

main04562-30030iRX30..HT197910-198008

main56117-95801iRX30..HT197612-197910

5544922040COVER, COOLER SWITCH HOLE

main55449-22040

9015950050

main90159-50050

9165140818

main91651-40818

9354014012

main93540-14012

9354015010

main93540-15010

9356015012

main93560-15012

21 parts on this diagram · 1 diagram in section
