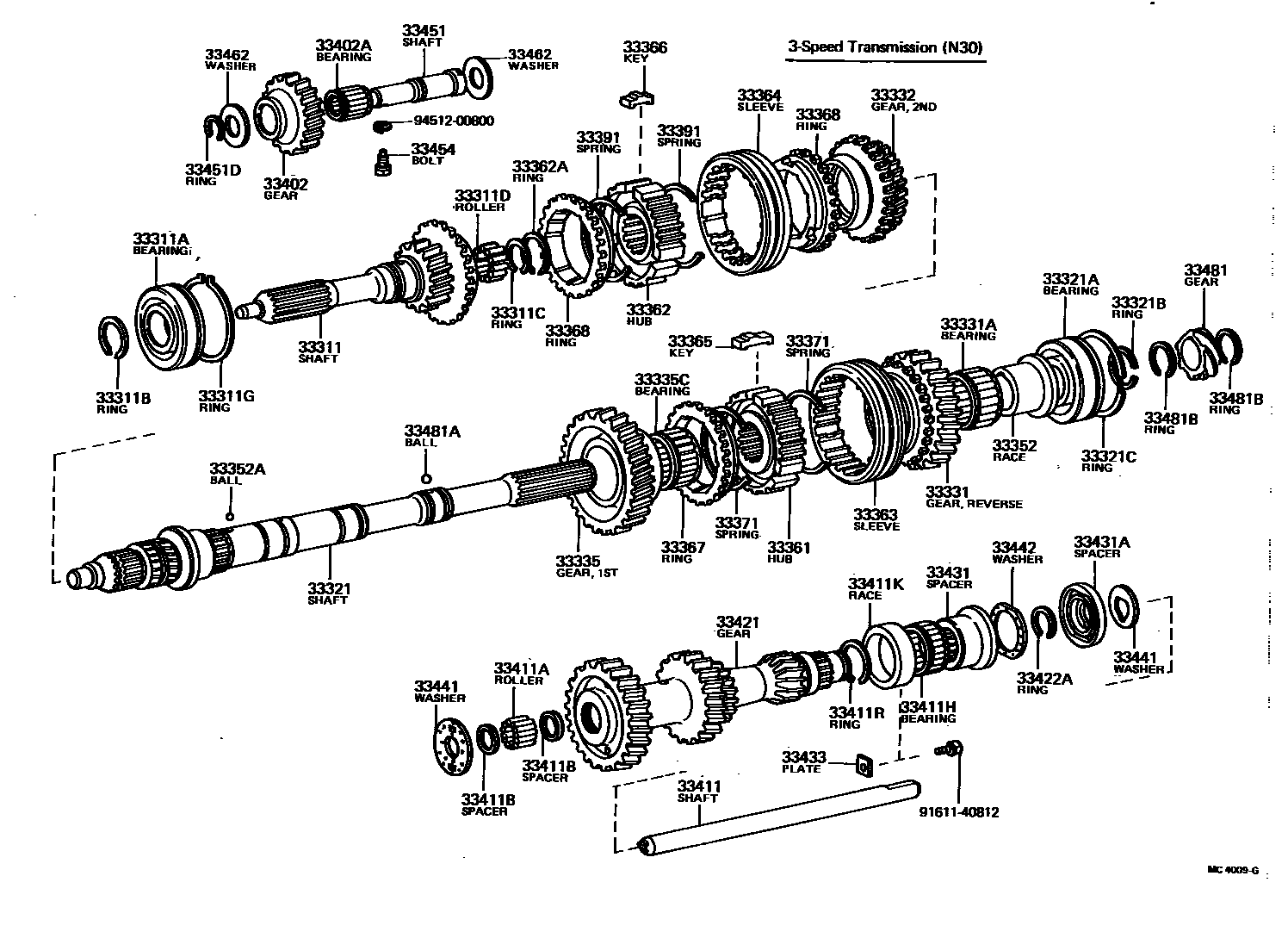

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
N=19
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.10,MARK 2
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
sub33321-20071
sub33321-30091
sub33317-30011
sub33334-30012
sub33349-30010
sub33368-30070
sub33385-30010
sub33393-30012
sub90280-07001
sub90360-06004
sub90364-28002
sub90520-26006
sub90520-26007
sub90520-26008
sub90520-41002
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.43-2.48,MARK 10,T=2.43-2.48
T=2.49-2.54,MARK 11,T=2.49-2.54
T=2.55-2.60,MARK 12,T=2.55-2.60
T=2.61-2.66,MARK 13,T=2.61-2.66
T=1.89-1.94
T=1.95-2.00
T=2.01-2.06
T=2.07-2.12
T=2.13-2.18
T=2.19-2.24
T=2.25-2.30
T=2.31-2.36,MARK 8,T=2.31-2.36
T=2.37-2.42,MARK 9,T=2.37-2.42
T=1.95-2.00
T=2.15-2.20
T=2.35-2.40
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.35,MARK 6,T=2.35-2.40
T=2.40-2.45
T=2.50-2.55
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
33331GEAR, REVERSE
N=31
N=39
N=39
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
N=25
N=29
33335GEAR, 1ST
N=32
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.35,MARK 6,T=2.35-2.40
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=31
N=31
N=19
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411KRACE, COUNTER BEARING OUTER(FOR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.00-1.95
T=1.80-1.85
T=1.60-1.65,T=1.60-1.75
T=1.40-1.45
33422ARING, SHAFT SNAP (FOR COUNTERSHAFT GEAR)
T=1.95-2.00
T=2.01-2.06
T=2.07-2.12
T=2.13-2.18
T=2.19-2.24
T=2.25-2.30
33431SPACER, COUNTER GEAR, NO.1
33431ASPACER, COUNTER GEAR, NO.2
33433PLATE, COUNTER GEAR REAR BEARING LOCK
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=1.90-2.00,FOR FRONT
T=2.30-2.35
T=2.45-2.50
T=2.60-2.65
T=2.75-2.80
T=2.90-2.95
T=3.05-3.10
T=3.20-3.25
T=3.35-3.40
33442WASHER, COUNTER GEAR SIDE THRUST, NO.2
33451SHAFT, REVERSE IDLER GEAR
33451DRING, SHAFT SNAP (FOR REVERSE IDLER GEAR SHAFT)
33454BOLT, SHAFT RETAINING
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X18-20,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161140812
main91611-40812
9451200800
main94512-00800
52 parts on this diagram · 3 diagrams in section
