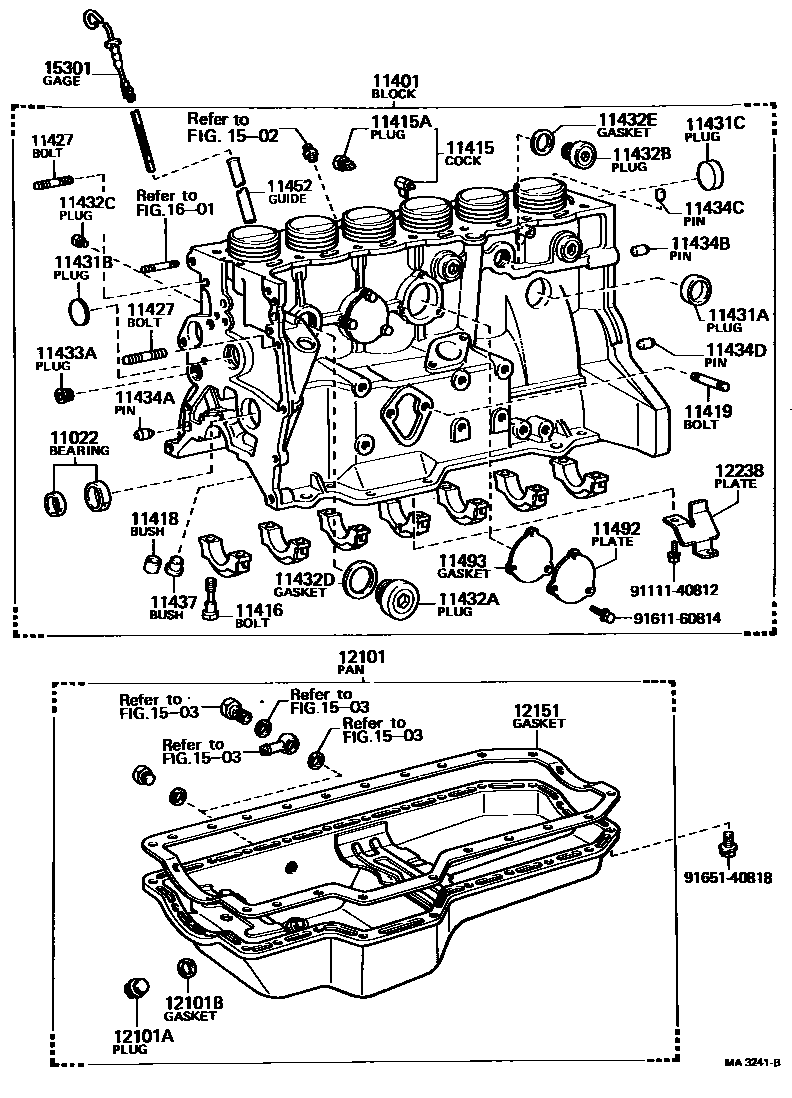

CYLINDER BLOCK
11022BEARING SET, PUMP DRIVE SHAFT
11401BLOCK SUB-ASSY, CYLINDER
sub11401-29236
sub11401-39207
sub11401-39285
sub11401-39286
sub11401-49265
sub11401-49266
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
12-1.25PX62-21
11418BUSH, SOLID(FOR DISTRIBUTOR)
11419BOLT, STUD(FOR FUEL PUMP)
L=43,S=10&10
L=39,S=25&9
11427BOLT, STUD(FOR TIMING CHAIN COVER SET)
L=65,S=12&12
L=80,S=12&26
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=40
OD=45
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=40
OD=35
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=35
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432CPLUG, W/HEAD TAPER SCREW, NO.3
11432DGASKET, W/HEAD TAPER SCREW PLUG
11432EGASKET, W/HEAD TAPER SCREW PLUG
sub90430-32002
11433APLUG, STRAIGHT, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=23,OD=8
L=18,OD=8,L=18,OD=8
L=22,OD=10,L=22,OD=10
L=11,OD=11,L=11,OD=11
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=18,OD=8,L=18,OD=8
L=22,OD=10,L=22,OD=10
L=22,OD=10,L=22,OD=10
L=16,OD=17
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8,L=18,OD=8
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=22,OD=10,L=22,OD=10
11437BUSH, OIL PUMP SHAFT GUIDE
11452GUIDE, OIL LEVEL GAGE
11492PLATE, WATER SEAL
11493GASKET, WATER SEAL PLATE
12101APLUG(FOR OIL PAN DRAIN)
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-18023
12151GASKET, OIL PAN
12238PLATE, VENTILATION BAFFLE
1502
1503
15301GAGE SUB-ASSY, OIL LEVEL
1601
9111140812
main91111-40812
9161160814
main91611-60814
9165140818
main91651-40818
37 parts on this diagram · 3 diagrams in section
