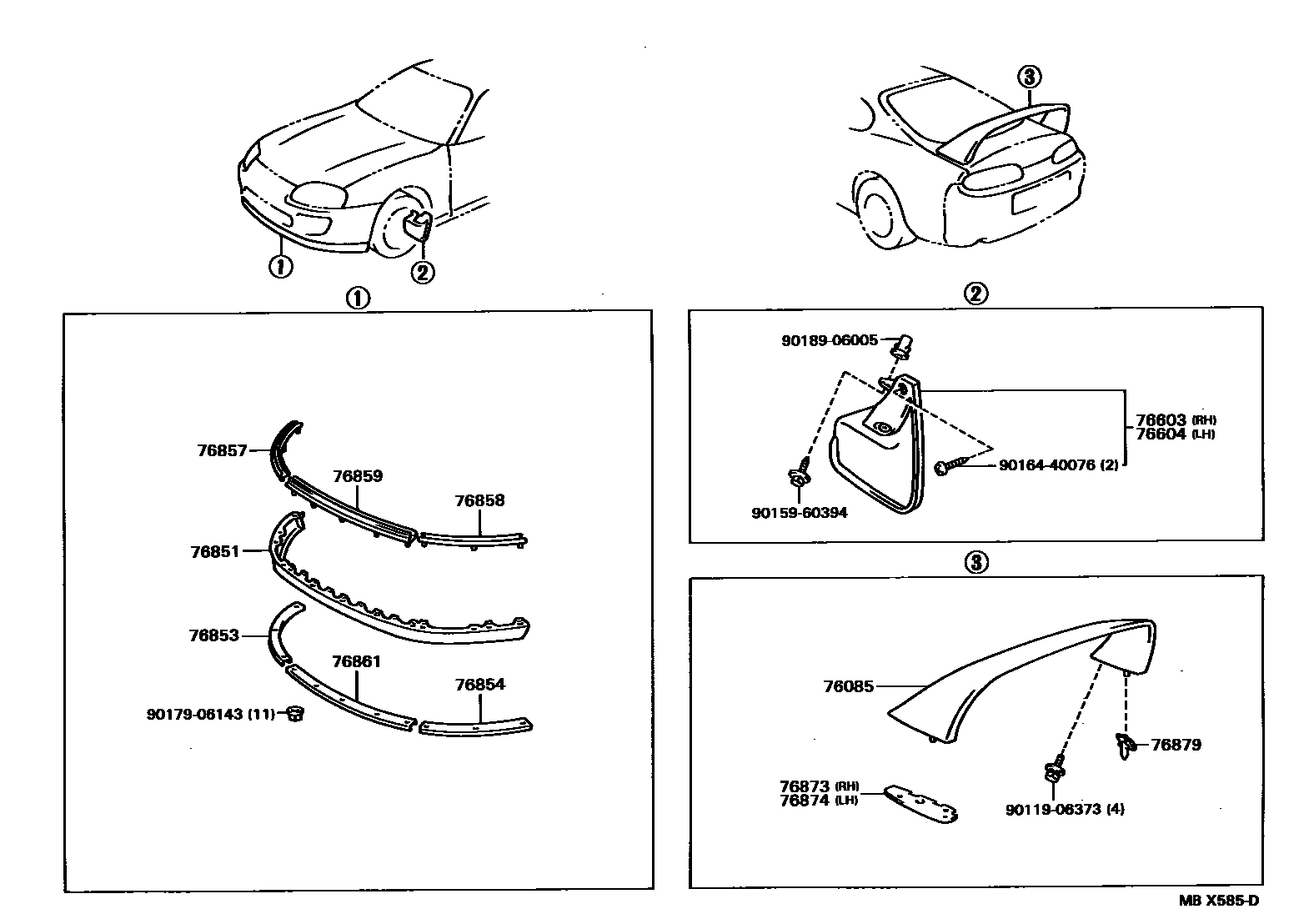

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-14909iJZA80..TWT199305-199401

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19255iJZA80199305-199808

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19255iJZA80199305-199808

76851COVER, FRONT SPOILER

main76851-14060iJZA80199305-199808

sub76851-14070

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-14020iJZA80199305-199808

76854RETAINER, FRONT SPOILER, UPPER LH

main76854-14020iJZA80199305-199808

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-14030iJZA80199305-199808

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-14030iJZA80199305-199808

76859RETAINER, FRONT SPOILER, UPPER NO.3

main76859-14010iJZA80199305-199808

76861RETAINER, FRONT SPOILER, LOWER NO.1

main76861-14040iJZA80199305-199808

76873PROTECTOR, REAR SPOILER, NO.2

main76873-14060iJZA80..TWT199305-199401

main76873-14061iJZA80199403-199607

76874PROTECTOR, REAR SPOILER, NO.3

main76874-14060iJZA80..TWT199305-199401

main76874-14061iJZA80199403-199607

76879CLIP, REAR SPOILER, NO.1

main76879-14040×2iJZA80..TWT199305-199401

9011906373

main90119-06373

9015960394

main90159-60394

9016440076

main90164-40076

9017906143

main90179-06143

9018906005

main90189-06005

18 parts on this diagram · 1 diagram in section
