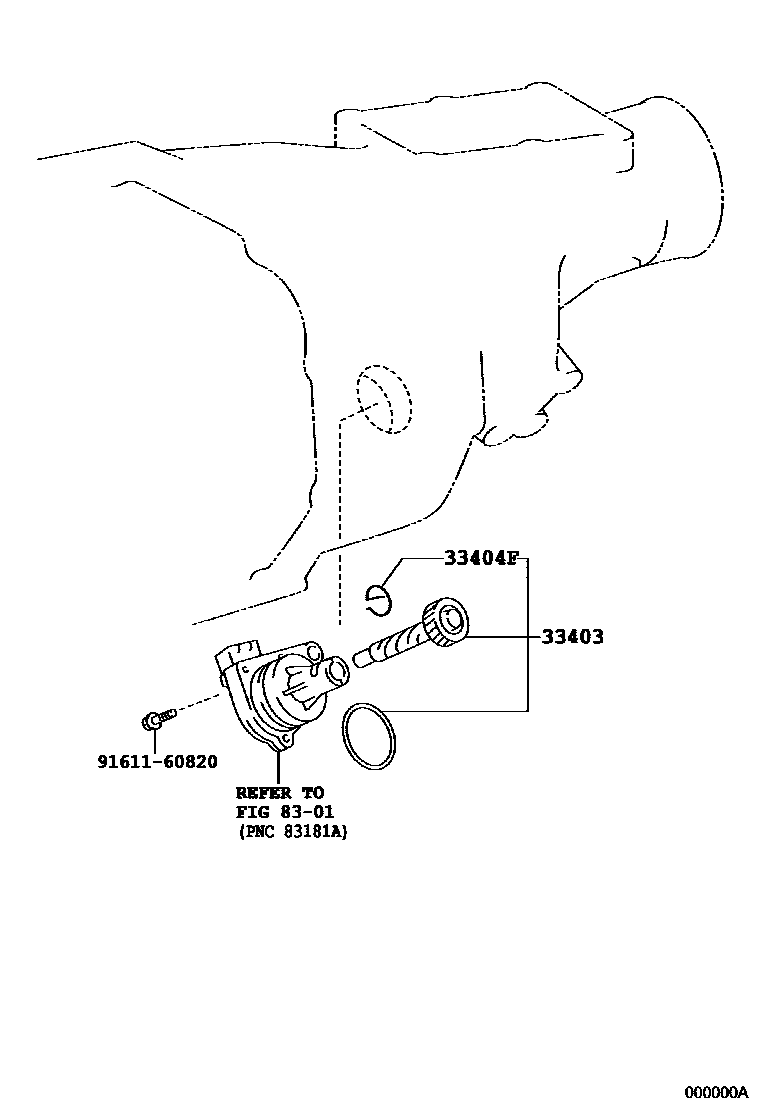

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1W58 0002 1V160

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19575iJZA80..6F199305-199808

N=31,MARK 31:12

main33403-39465iJZA80..5F199305-199709

N=34,MARK 34:10

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iJZA80..MTM199305-199808

8301METER

→ Go to FIG 83-01

9161160820

main91611-60820

4 parts on this diagram · 2 diagrams in section
