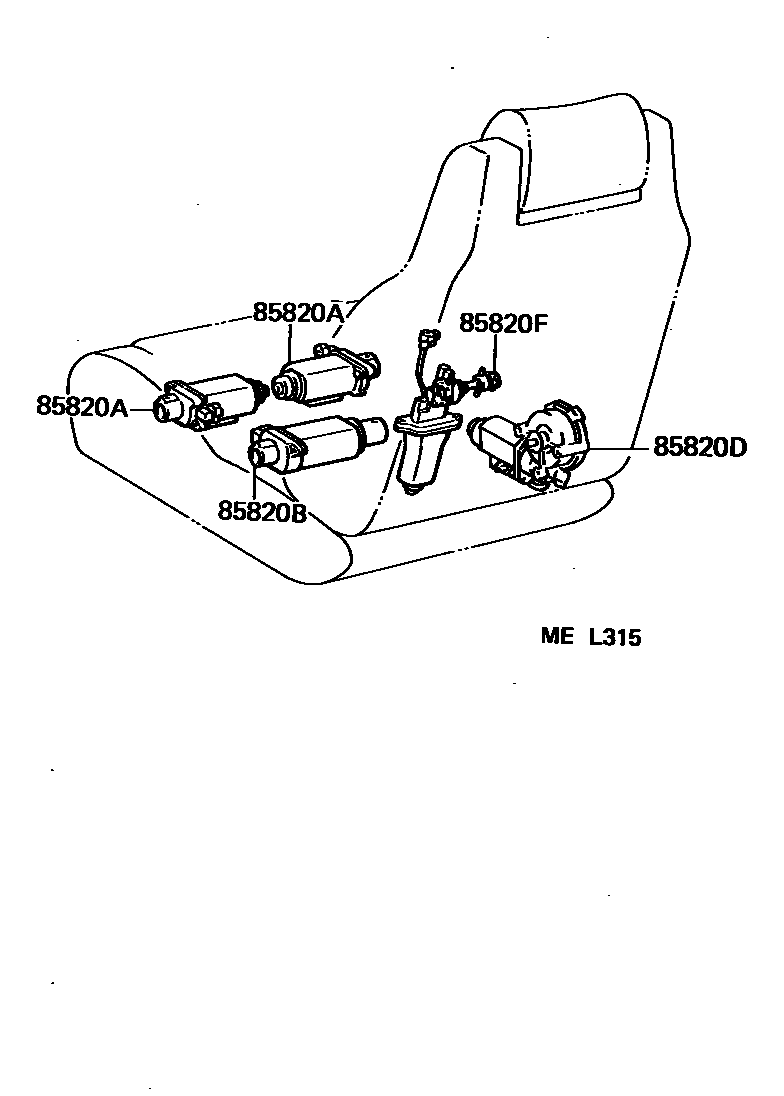

SEAT MOTOR & SEAT HEATER

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-14020iMA70198808-199305

FR VERTICAL

main85820-14030iMA70198910-199305

RR VERTICAL

main85820-14030iMA70198808-198910

FOR REAR VERTICAL

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-14010iMA70198808-199305

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85820-14040iMA70198808-199305

85820FMOTOR ASSY, POWER SEAT (FOR SIDE SUPPORT)

main85820-20030iMA70198808-199305

4 parts on this diagram · 1 diagram in section
