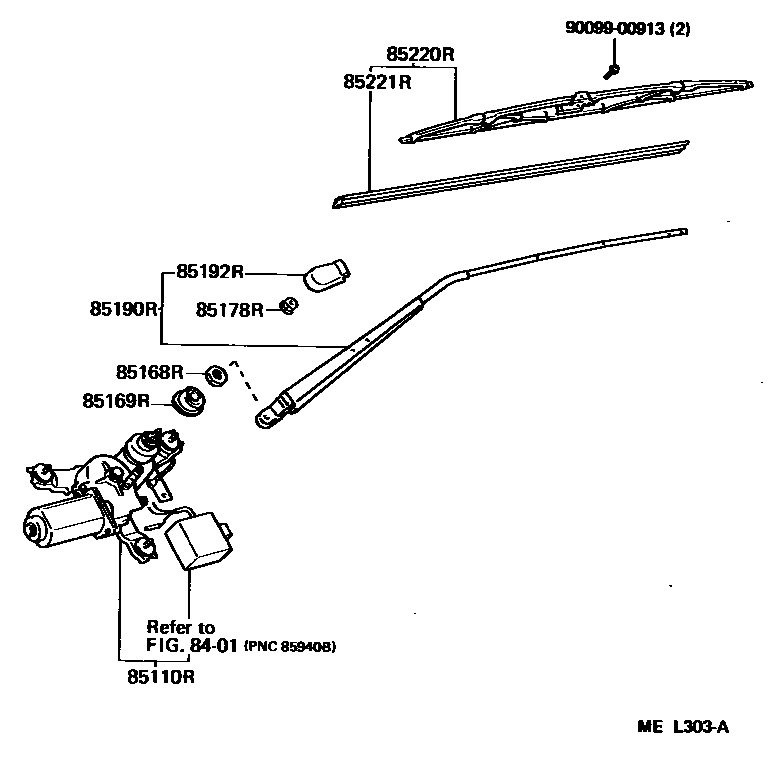

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85110-14380iMA70198811-198908

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iMA70198811-198908

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-14290iMA70198811-198908

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMA70198811-198908

85190RARM ASSY, REAR WIPER

main85190-14730iMA70198811-198908

main85190-14731iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198911-199008

85192RCOVER, REAR WIPER ARM

main85192-32010iMA70198811-198908

85220RBLADE ASSY, REAR WIPER

main85220-16440iMA70198811-198908

main85220-16441iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198911-199008

85221RBLADE, REAR WIPER

main85221-16080iMA70198811-198908

9009900913

main90099-00913

10 parts on this diagram · 1 diagram in section
