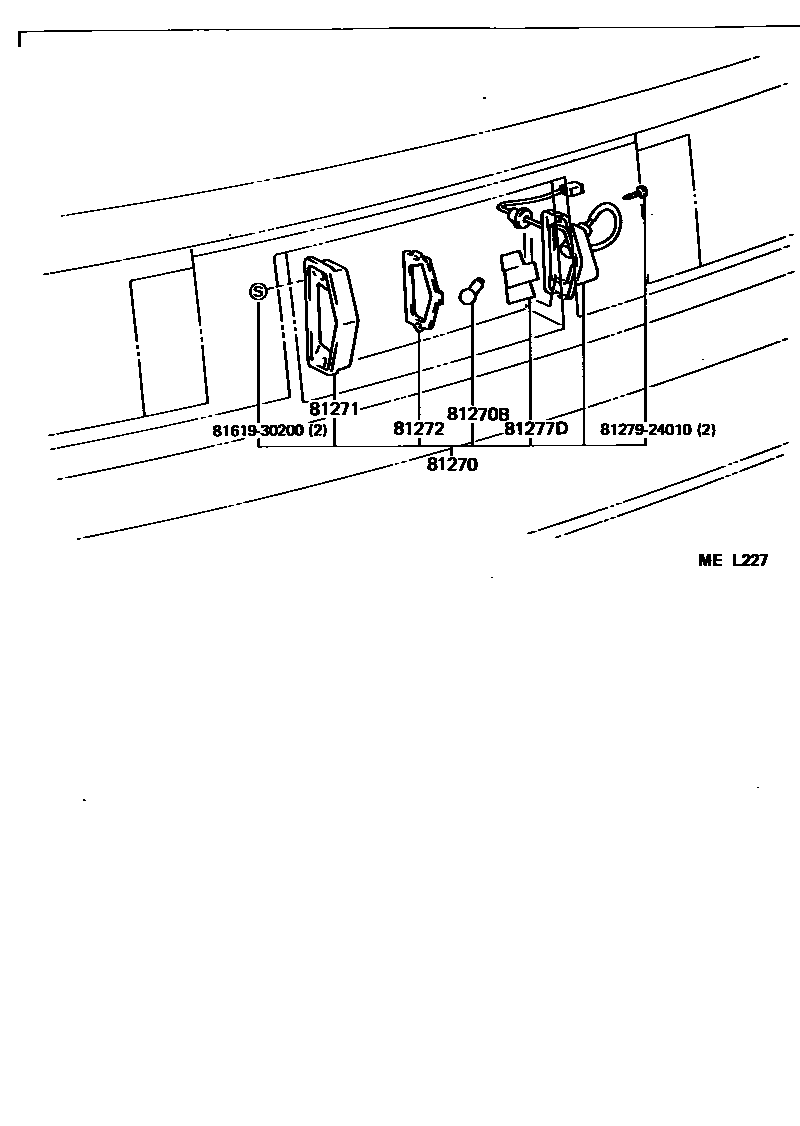

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-14240×2iMA70198808-198908

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iMA70198808-198908

12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-14220×2iMA70198808-198908

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iMA70198808-198908

81277DREFLECTOR, LICENSE PLATE LAMP

main81277-20210×2iMA70198808-198908

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

8161930200

main81619-30200

7 parts on this diagram · 1 diagram in section
