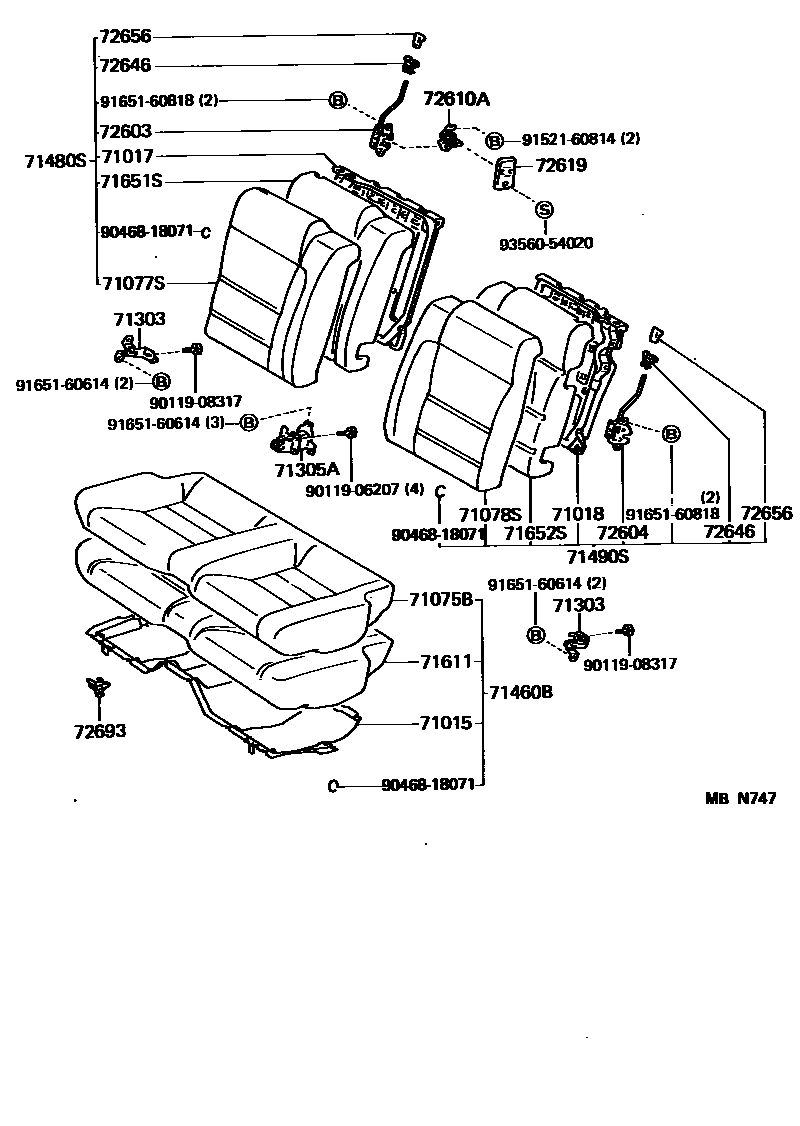

REAR SEAT & SEAT TRACK
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
BROWN,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
DEEP RED,TRIM3#
LIGHT GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
SHADOW GRAY,TRIM1#
W(LEATHER SEAT),MAROON,TRIM3#
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
W(LEATHER SEAT),DEEP BLUE,TRIM8#
W(LEATHER SEAT),BRWON,TRIM4#
W(LEATHER SEAT),DEEP RED,TRIM3#; W(SEAT HEATER & LEATHER SEAT);W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
W(LEATHER SEAT),TAN,TRIM4#
W(LEATHER SEAT),BLACK,BLACK,TRIM1#; W(LEATHER SEAT),BLACK,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
BROWN,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
DEEP RED,TRIM3#
LIGHT GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
SHADOW GRAY,TRIM1#
W(LEATHER SEAT),MAROON,TRIM3#
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
W(LEATHER SEAT),DEEP BLUE,TRIM8#
W(LEATHER SEAT),BRWON,TRIM4#
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#; W(LEATHER SEAT),DEEP RED,TRIM3#
W(LEATHER SEAT),TAN,TRIM4#
W(LEATHER SEAT),BLACK,BLACK,TRIM1#; W(LEATHER SEAT),BLACK,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
BROWN,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
DEEP RED,TRIM3#
LIGHT GRAY,TRIM1#
DEEP BLUE,TRIM8#
TAN,TRIM4#
SHADOW GRAY,TRIM1#
W(LEATHER SEAT),MAROON,MAROON,TRIM3#; W(LEATHER SEAT),MAROON,TRIM3#
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
W(LEATHER SEAT),DEEP BLUE,TRIM8#
W(LEATHER SEAT),BRWON,TRIM4#
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#; W(LEATHER SEAT),DEEP RED,TRIM3#
W(LEATHER SEAT),TAN,TAN,TRIM4#
W(LEATHER SEAT),BLACK,BLACK,TRIM1#; W(LEATHER SEAT),BLACK,TRIM1#
71303HINGE SUB-ASSY, REAR SEATBACK
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
***,MAROON,TRIM3#
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,BROWN; ***,BROWN,TRIM4#
***,MAROON,TRIM3#
***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,DEEP RED,TRIM3#
***,LIGHT GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,SHADOW GRAY,TRIM1#
***,W(LEATHER SEAT),MAROON,TRIM3#
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
***,W(LEATHER SEAT),BRWON; ***,W(LEATHER SEAT),BRWON,TRIM4#
***,W(LEATHER SEAT),DEEP RED,TRIM3#; ***,W(LEATHR SEAT),DEEP RED,DEEP RED,TRIM3#; ***,W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
***,W(LEATHR SEAT),TAN,TAN,TRIM4#
***,W(LEATHER SEAT),BLACK,TRIM1#; ***,W(LEATHR SEAT),BLACK,BLACK,TRIM1#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
***,W(LEATHER SEAT),MAROON,TRIM3#; ***,W(LEATHR SEAT),MAROON,MAROON,TRIM3#
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
***,W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
***,W(LEATHER SEAT),BRWON; ***,W(LEATHER SEAT),BRWON,TRIM4#
***,W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#; ***,W(LEATHER SEAT),DEEP RED,TRIM3#
***,W(LEATHER SEAT),TAN,TAN,TRIM4#
***,W(LEATHER SEAT),BLACK,BLACK,TRIM1#; ***,W(LEATHER SEAT),BLACK,TRIM1#
***,MAROON,TRIM3#
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,BROWN,TRIM4#
***,MAROON,TRIM3#
***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,DEEP RED,TRIM3#
***,LIGHT GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,SHADOW GRAY,TRIM1#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
***,MAROON,TRIM3#
***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,BROWN; ***,BROWN,TRIM4#
***,MAROON,TRIM3#
***,MEDIUM GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,DEEP RED,TRIM3#
***,LIGHT GRAY,TRIM1#
***,DEEP BLUE,TRIM8#
***,TAN,TRIM4#
***,SHADOW GRAY,TRIM1#
***,W(LEATHER SEAT),MAROON,TRIM3#
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
***,W(LEATHER SEAT),BRWON; ***,W(LEATHER SEAT),BRWON,TRIM4#
***,W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#; ***,W(LEATHER SEAT),DEEP RED,TRIM3#
***,W(LEATHER SEAT),TAN,TAN,TRIM4#
***,W(LEATHER SEAT),BLACK,BLACK,TRIM1#; ***,W(LEATHER SEAT),BLACK,TRIM1#
71611PAD, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
72603LOCK SUB-ASSY, REAR SEATBACK, RH
72604LOCK SUB-ASSY, REAR SEATBACK, LH
72610ASTRIKER ASSY, REAR SEATBACK LOCK
72619COVER, REAR SEATBACK LOCK STRIKER
MAROON,TRIM3#,RH
MEDIUM GRAY,TRIM1#,RH
DEEP BLUE,TRIM8#,RH
BROWN,TRIM4#,RH
DEEP RED,TRIM3#,RH
SHADOW GRAY,TRIM1#,RH
MAROON,TRIM3#,LH
MEDIUM GRAY,TRIM1#,LH
DEEP BLUE,TRIM8#,LH
BROWN,TRIM4#,LH
DEEP RED,TRIM3#,LH
SHADOW GRAY,TRIM1#,LH
72646GROMMET, REAR SEATBACK STOP BUTTON
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
DEEP BLUE,TRIM8#
LIGHT BROWN,TRIM4#
DEEP RED,TRIM3#
TAN,TRIM4#
SHADOW GREY,TRIM1#
72656BUTTON, REAR SEATBACK STOP RELEASE
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
DEEP BLUE,TRIM8#
LIGHT BROWN,TRIM4#
DEEP RED,TRIM3#
TAN,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
9011906207
main90119-06207
9011908317
main90119-08317
9046818071
main90468-18071
9152160814
main91521-60814
9165160614
main91651-60614
9165160818
main91651-60818
9356054020
main93560-54020
28 parts on this diagram · 1 diagram in section
