FRONT SEAT & SEAT TRACK

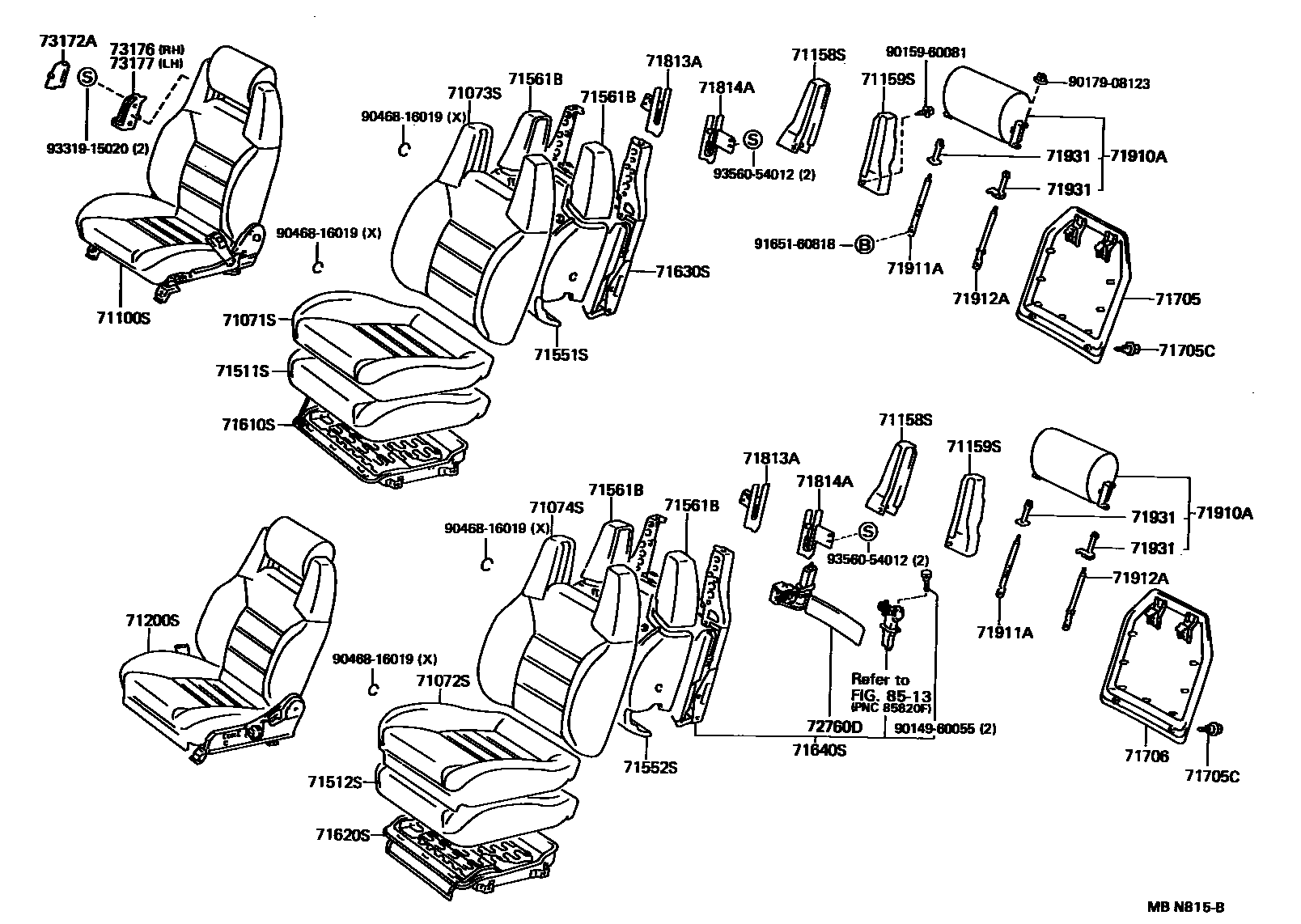

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1D182-02i198808-198908
MAROON,TRIM3#
main71071-1D182-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-1D182-04i198808-198908
DEEP BLUE,TRIM8#
main71071-1D182-06i198808-198908
BROWN,TRIM4#
main71071-1D183-02i198908-199008
MAROON,TRIM3#
main71071-1D183-03i198908-199008
MEDIUM GRAY,TRIM1#
main71071-1D183-04i198908-199008
DEEP BLUE,TRIM8#
main71071-1D183-06i198908-199008
TAN,TRIM4#
main71071-1D184-02i199008-199305
DEEP RED,TRIM3#
main71071-1D184-03i199008-199108
LIGHT GRAY,TRIM1#
main71071-1D184-04i199008-199305
DEEP BLUE,TRIM8#
main71071-1D184-06i199008-199108
TAN,TRIM4#
main71071-1D184-B0i199108-199305
SHADOW GRAY,TRIM1#
main71071-1D211-02i198908-199008
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71071-1D211-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71071-1D211-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71071-1D211-03i198908-199008
W(LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71071-1D211-04i198908-199008
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71071-1D211-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D211-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71071-1D211-16i198908-199008
W(LEATHER SEAT),TAN,TAN,TRIM4#
main71071-1D211-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71071-1D212-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71071-1D212-02i199008-199305
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71071-1D212-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D212-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71071-1D212-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71071-1D212-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D212-06i199008-199108
W(LEATHER SEAT),TAN,TAN,TRIM4#
main71071-1D212-C0i199108-199305
W(LEATHER SEAT),BLACK,BLACK,TRIM1#
main71071-1D212-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71071-1D400-02i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71071-1D400-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D400-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D400-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-1D192-02i198808-198908
MAROON,TRIM3#
main71072-1D192-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-1D192-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D192-06i198808-198908
BROWN,TRIM4#
main71072-1D193-02i198908-199008
MAROON,TRIM3#
main71072-1D193-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D193-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D193-06i198908-199008
TAN,TRIM4#
main71072-1D194-02i199008-199305
DEEP RED,TRIM3#
main71072-1D194-03i199008-199108
LIGHT GRAY,TRIM1#
main71072-1D194-04i199008-199305
DEEP BLUE,TRIM8#
main71072-1D194-06i199008-199108
TAN,TRIM4#
main71072-1D194-B0i199108-199305
SHADOW GRAY,TRIM1#
main71072-1D202-02i198808-198908
MAROON,TRIM3#
main71072-1D202-02i198808-198908
W(POWER SEAT),MAROON,MAROON,TRIM3#
main71072-1D202-03i198808-198908
W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71072-1D202-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-1D202-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D202-04i198808-198908
W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71072-1D202-06i198901-198908
W(POWER SEAT),BROWN,BROWN,TRIM4#
main71072-1D202-06i198808-198908
BROWN,TRIM4#
main71072-1D202-06i198808-198901
W(SEAT HEATER),BROWN,TRIM4#
main71072-1D203-02i198908-199008
W(POWER SEAT),MAROON,MAROON,TRIM3#
main71072-1D203-02i198908-199008
MAROON,TRIM3#
main71072-1D203-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D203-03i198908-199008
W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71072-1D203-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D203-04i198908-199008
W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71072-1D203-06i198908-199008
W(POWER SEAT),TAN,TAN,TRIM4#
main71072-1D203-06i198908-199008
TAN,TRIM4#
main71072-1D204-02i199008-199305
W(POWER SEAT),DEEP RED,TRIM3#
main71072-1D204-02i199008-199305
DEEP RED,TRIM3#
main71072-1D204-03i199008-199108
W(POWER SEAT),LIGHT GRAY,TRIM1#
main71072-1D204-03i199008-199108
LIGHT GRAY,TRIM1#
main71072-1D204-04i199008-199305
DEEP BLUE,TRIM8#
main71072-1D204-04i199008-199305
W(POWER SEAT),DEEP BLUE,TRIM8#
main71072-1D204-06i199008-199108
W(POWER SEAT),TAN,TRIM4#
main71072-1D204-B0i199108-199305
SHADOW GRAY,TRIM1#
main71072-1D204-B0i199108-199305
W(POWER SEAT),SHADOW GRAY,TRIM1#
main71072-1D211-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71072-1D211-02i198808-199008
W(POWER SEAT & LEATHER SEAT),MAROON,MAROON,TRIM3#
main71072-1D211-03i198808-199008
W(POWER SEAT & LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71072-1D211-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71072-1D211-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D211-04i198808-199008
W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71072-1D211-06i198808-198901
W(SEAT HEATER & LEATHER SEAT),BRWON,TRIM4#
main71072-1D211-06i198808-198901
W(LEATHER SEAT),BRWON,TRIM4#
main71072-1D211-06i198901-198908
W(LEATHER SEAT),BROWN,BRWON,TRIM4#
main71072-1D211-06i198901-198908
W(POWER SEAT & LEATHER SEAT),BROWN,BRWON,TRIM4#
main71072-1D211-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71072-1D211-16i198908-199008
W(POWER SEAT & LEATHER SEAT),TAN,TAN,TRIM4#
main71072-1D212-02i199008-199305
W(POWER SEAT & LEATHER SEAT),DEEP RED;W(POWER SEAT),DEEP RED,DEEP RED,TRIM3#
main71072-1D212-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71072-1D212-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D212-03i199008-199108
W(POWER SEAT & LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71072-1D212-04i199008-199305
W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71072-1D212-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D212-06i199008-199108
W(SEAT HEATER & LEATHER SEAT);W(POWER SEAT & LEATHER SEAT),TAN,TAN,TRIM4#
main71072-1D212-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71072-1D212-C0i199108-199305
W(POWER SEAT & LEATHER SEAT),BLACK,BLACK,TRIM1#
main71072-1D281-02i198808-198908
W(LEATHER SEAT),MAROON,TRIM3#
main71072-1D281-03i198808-198908
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71072-1D281-04i198808-198908
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D281-06i198901-198908
W(LEATHER SEAT),BROWN,BRWON,TRIM4#
main71072-1D281-06i198808-198901
W(LEATHER SEAT),BRWON,TRIM4#
main71072-1D470-02i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71072-1D470-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D470-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D470-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1B602-02i198808-198908
MAROON,TRIM3#
main71073-1B602-03i198808-198908
MEDIUM GRAY,TRIM1#
main71073-1B602-04i198808-198908
DEEP BLUE,TRIM8#
main71073-1B602-06i198808-198908
BROWN,TRIM4#
main71073-1B603-02i198908-199008
MAROON,TRIM3#
main71073-1B603-03i198908-199008
MEDIUM GRAY,TRIM1#
main71073-1B603-04i198908-199008
DEEP BLUE,TRIM8#
main71073-1B603-06i198908-199008
TAN,TRIM4#
main71073-1B604-02i199008-199305
DEEP RED,TRIM3#
main71073-1B604-03i199008-199108
LIGHT GRAY,TRIM1#
main71073-1B604-04i199008-199305
DEEP BLUE,TRIM8#
main71073-1B604-06i199008-199108
TAN,TRIM4#
main71073-1B604-B0i199108-199305
SHADOW GRAY,TRIM1#
main71073-1B661-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71073-1B661-02i198908-199008
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71073-1B661-03i198808-199108
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71073-1B661-03i198908-199108
W(LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71073-1B661-04i198808-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B661-04i198908-199305
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71073-1B661-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71073-1B661-12i199008-199305
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71073-1B661-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71073-1B661-16i198908-199108
W(LEATHER SEAT),BROWN,BROWN,TRIM4#
main71073-1B661-16i198908-199008
W(LEATHER SEAT),BROWN,TRIM4#
main71073-1B661-C0i199108-199305
W(LEATHER SEAT),BLACK,BLACK,TRIM1#
main71073-1B661-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71073-1B830-02i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71073-1B830-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71073-1B830-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B830-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-14741-02i198908-199008
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71074-14741-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71074-14741-03i198808-199108
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71074-14741-03i198908-199108
W(LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71074-14741-04i198808-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-14741-04i198908-199305
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71074-14741-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71074-14741-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71074-14741-12i199008-199305
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71074-14741-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71074-14741-16i198908-199108
W(LEATHER SEAT),TAN,TAN,TRIM4#
main71074-14741-C0i199108-199305
W(LEATHER SEAT),BLACK,BLACK,TRIM1#
main71074-14741-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71074-14811-02i198808-198908
MAROON,TRIM3#
main71074-14811-03i198808-198908
MEDIUM GRAY,TRIM1#
main71074-14811-04i198808-198908
DEEP BLUE,TRIM8#
main71074-14811-06i198808-198908
BROWN,TRIM4#
main71074-14812-02i198908-199008
MAROON,TRIM3#
main71074-14812-03i198908-199008
MEDIUM GRAY,TRIM1#
main71074-14812-04i198908-199008
DEEP BLUE,TRIM8#
main71074-14812-06i198908-199008
TAN,TRIM4#
main71074-14813-02i199008-199305
DEEP RED,TRIM3#
main71074-14813-03i199008-199108
LIGHT GRAY,TRIM1#
main71074-14813-04i199008-199305
DEEP BLUE,TRIM8#
main71074-14813-06i199008-199108
TAN,TRIM4#
main71074-14813-B0i199108-199305
SHADOW GRAY,TRIM1#
main71074-1B010-02i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71074-1B010-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71074-1B010-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-1B010-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71100SSEAT ASSY, FRONT RH
main71010-14092-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71010-14092-02i198908-199008
***,W(POWER SEAT & LEATHER SEAT),MAROON,MAROON,TRIM3#
main71010-14092-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71010-14092-03i198908-199008
***,W(POWER SEAT & LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71010-14092-04i198908-199008
***,W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71010-14092-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71010-14092-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71010-14092-06i198901-198908
***,W(LEATHER SEAT),BRWON
main71010-14092-16i198908-199008
***,W(POWER SEAT & LEATHER SEAT),BROWN,BROWN,TRIM4#
main71010-14092-16i198908-199008
***,W(LEATHER SEAT),BROWN,TRIM4#
main71010-14093-02i199008-199305
***,W(POWER SEAT & LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71010-14093-02i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71010-14093-03i199008-199108
***,W(POWER SEAT & LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71010-14093-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71010-14093-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71010-14093-04i199008-199305
***,W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71010-14093-06i199008-199108
***,W(POWER SEAT & LEATHER SEAT),TAN,TAN,TRIM4#
main71010-14093-06i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71010-14093-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71010-14093-C0i199108-199305
***,W(POWER SEAT & LEATHER SEAT),BLACK,BLACK,TRIM1#
main71010-14582-02i198808-198908
***,MAROON,TRIM3#
main71010-14582-03i198901-198908
***,MEDIUM GRAY
main71010-14582-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71010-14582-04i198808-198908
***,DEEP BLUE,TRIM8#
main71010-14582-06i198901-198908
***,BROWN
main71010-14582-06i198808-198908
***,BROWN,TRIM4#
main71010-14583-02i198908-199008
***,MAROON,TRIM3#
main71010-14583-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71010-14583-04i198908-199008
***,DEEP BLUE,TRIM8#
main71010-14583-06i198908-199008
***,TAN,TRIM4#
main71010-14584-02i199008-199305
***,DEEP RED,TRIM3#
main71010-14584-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71010-14584-04i199008-199305
***,DEEP BLUE,TRIM8#
main71010-14584-06i199008-199108
***,TAN,TRIM4#
main71010-14584-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71010-14592-02i198808-198908
***,W(POWER SEAT),MAROON,MAROON,TRIM3#
main71010-14592-02i198808-198908
***,MAROON,TRIM3#
main71010-14592-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71010-14592-03i198901-198908
***,MEDIUM GRAY
main71010-14592-03i198901-198908
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY
main71010-14592-03i198808-198908
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71010-14592-04i198808-198908
***,DEEP BLUE,TRIM8#
main71010-14592-04i198808-198908
***,W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71010-14592-06i198901-198908
***,W(POWER SEAT),BROWN,BROWN
main71010-14592-06i198901-198908
***,BROWN
main71010-14592-06i198808-198908
***,BROWN,TRIM4#
main71010-14592-06i198808-198908
***,W(POWER SEAT),BROWN,BROWN,TRIM4#
main71010-14593-02i198908-199008
***,W(POWER SEAT),MAROON,MAROON,TRIM3#
main71010-14593-02i198908-199008
***,MAROON,TRIM3#
main71010-14593-03i198908-199008
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71010-14593-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71010-14593-04i198908-199008
***,W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71010-14593-04i198908-199008
***,DEEP BLUE,TRIM8#
main71010-14593-06i198908-199008
***,W(POWER SEAT),TAN,TAN,TRIM4#
main71010-14593-06i198908-199008
***,TAN,TRIM4#
main71010-14594-02i199008-199305
***,DEEP RED,TRIM3#
main71010-14594-02i199008-199305
***,W(POWER SEAT),DEEP RED,TRIM3#
main71010-14594-03i199008-199108
***,W(POWER SEAT),LIGHT GRAY,TRIM1#
main71010-14594-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71010-14594-04i199008-199305
***,DEEP BLUE,TRIM8#
main71010-14594-04i199008-199305
***,W(POWER SEAT),DEEP BLUE,TRIM8#
main71010-14594-06i199008-199108
***,W(POWER SEAT),TAN,TRIM4#
main71010-14594-B0i199108-199305
***,W(POWER SEAT),SHADOW GRAY,TRIM1#
main71010-14594-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71050-14240-02i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71050-14240-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71050-14240-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71050-14240-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71158SFRAME, FRONT SEATBACK, UPPER RH
main71158-14060i198808-199305
LH
main71158-14070i198808-199305
RH
71159SFRAME, FRONT SEATBACK, UPPER LH
main71159-14050i198808-199305
RH
main71159-14060i198808-199305
LH
71200SSEAT ASSY, FRONT LH
main71020-14092-02i198808-198908
***,W(LEATHER SEAT),MAROON,TRIM3#
main71020-14092-03i198808-198908
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71020-14092-04i198808-198908
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71020-14092-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71020-14092-06i198901-198908
***,W(LEATHER SEAT),BRWON
main71020-14472-02i198808-198908
***,MAROON,TRIM3#
main71020-14472-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71020-14472-03i198901-198908
***,MEDIUM GRAY
main71020-14472-04i198808-198908
***,DEEP BLUE,TRIM8#
main71020-14472-06i198901-198908
***,BROWN
main71020-14472-06i198808-198908
***,BROWN,TRIM4#
main71020-14473-02i198908-199008
***,MAROON,TRIM3#
main71020-14473-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71020-14473-04i198908-199008
***,DEEP BLUE,TRIM8#
main71020-14473-06i198908-199008
***,TAN,TRIM4#
main71020-14474-02i199008-199305
***,DEEP RED,TRIM3#
main71020-14474-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71020-14474-04i199008-199305
***,DEEP BLUE,TRIM8#
main71020-14474-06i199008-199108
***,TAN,TRIM4#
main71020-14474-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71020-14482-02i198808-198908
***,MAROON,TRIM3#
main71020-14482-02i198808-198908
***,W(POWER SEAT),MAROON,MAROON,TRIM3#
main71020-14482-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71020-14482-03i198808-198908
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71020-14482-03i198901-198908
***,MEDIUM GRAY
main71020-14482-03i198901-198908
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY
main71020-14482-04i198808-198908
***,DEEP BLUE,TRIM8#
main71020-14482-04i198808-198908
***,W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71020-14482-06i198808-198908
***,BROWN,TRIM4#
main71020-14482-06i198901-198908
***,BROWN
main71020-14482-06i198901-198908
***,W(POWER SEAT),BROWN,BROWN
main71020-14482-06i198808-198908
***,W(POWER SEAT),BROWN,BROWN,TRIM4#
main71020-14483-02i198908-199008
***,W(POWER SEAT),MAROON,MAROON,TRIM3#
main71020-14483-02i198908-199008
***,MAROON,TRIM3#
main71020-14483-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71020-14483-03i198908-199008
***,W(POWER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71020-14483-04i198908-199008
***,W(POWER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71020-14483-04i198908-199008
***,DEEP BLUE,TRIM8#
main71020-14483-06i198908-199008
***,W(POWER SEAT),TAN,TAN,TRIM4#
main71020-14483-06i198908-199008
***,TAN,TRIM4#
main71020-14484-02i199008-199305
***,W(POWER SEAT),DEEP RED,TRIM3#
main71020-14484-02i199008-199305
***,DEEP RED,TRIM3#
main71020-14484-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71020-14484-03i199008-199108
***,W(POWER SEAT),LIGHT GRAY,TRIM1#
main71020-14484-04i199008-199305
***,DEEP BLUE,TRIM8#
main71020-14484-04i199008-199305
***,W(POWER SEAT),DEEP BLUE,TRIM8#
main71020-14484-06i199008-199108
***,W(POWER SEAT),TAN,TRIM4#
main71020-14484-B0i199108-199305
***,W(POWER SEAT),SHADOW GRAY,TRIM1#
main71020-14484-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71020-14762-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71020-14762-02i198808-199008
***,W(POWER SEAT & LEATHER SEAT),MAROON,MAROON,TRIM3#
main71020-14762-03i198808-199008
***,W(POWER SEAT & LEATHER SEAT),MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71020-14762-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71020-14762-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71020-14762-04i198808-199008
***,W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71020-14762-06i198808-198908
***,W(POWER SEAT & LEATHER SEAT),BROWN,BROWN,TRIM4#
main71020-14762-06i198901-198908
***,W(POWER SEAT & LEATHER SEAT),BROWN,BROWN
main71020-14762-06i198901-198908
***,W(LEATHER SEAT),BROWN
main71020-14762-06i198808-198908
***,W(LEATHER SEAT),BROWN,TRIM4#
main71020-14762-16i198908-199008
***,W(POWER SEAT & LEATHER SEAT),BROWN,BROWN,TRIM4#
main71020-14762-16i198908-199008
***,W(LEATHER SEAT),BROWN,TRIM4#
main71020-14763-02i199008-199305
***,W(POWER SEAT & LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71020-14763-02i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71020-14763-03i199008-199108
***,W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71020-14763-03i199008-199108
***,W(POWER SEAT & LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71020-14763-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71020-14763-04i199008-199305
***,W(POWER SEAT & LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71020-14763-06i199008-199108
***,W(POWER SEAT & LEATHER SEAT),TAN,TAN,TRIM4#
main71020-14763-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71020-14763-C0i199108-199305
***,W(POWER SEAT & LEATHER SEAT),BLACK,BLACK,TRIM1#
main71020-1B260-02i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP RED,TRIM3#
main71020-1B260-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71020-1B260-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71020-1B260-C1i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-14211i198808-199008
main71511-14212i199008-199305
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-14021i198808-199008
main71512-14022i199008-199305
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-14210i198808-199305
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-14210i198808-199305
71561BPAD, FRONT SEATBACK, UPPER
main71561-14190i198808-199305
DRIVER SEAT,RH
main71561-14210i198808-199305
PASSENGER SEAT,RH
main71562-14060i198808-199305
PASSENGER SEAT,LH
main71562-14070i198808-199305
DRIVER SEAT,LH
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-14250i198808-199305
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-14200i198808-199305
main71620-14260i199008-199305
W(POWER SEAT & LEATHER SEAT)
main71620-14260i198808-199305
W(POWER SEAT)
main71620-14260i198808-199008
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-14230i198808-199305
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-14210i198808-199305
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,TRIM1#
main71705-14051-02i199001-199008
W(SEAT HEATER & LEATHER SEAT),MAROON,TRIM1#
main71705-14051-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14051-03i199001-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14051-03i199001-199108
W(LEATHER SEAT),LIGHT GRAY;LIGHT GRAY,LIGHT GRAY,TRIM1#
main71705-14051-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM3#
main71705-14051-04i199001-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14051-04i199001-199305
W(LEATHER SEAT),DEEP BLUE;W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14051-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71705-14051-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM3#
main71705-14051-12i199008-199108
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71705-14051-12i199008-199305
W(SEAT HEATER),DEEP RED,TRIM3#
main71705-14051-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71705-14051-16i199001-199008
W(LEATHER SEAT),BROWN,TRIM4#
main71705-14051-16i199001-199108
W(LEATHER SEAT),BROWN;W(LEATHER SEAT),BROWN,TRIM4#
main71705-14051-B0i199108-199305
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71705-14061-02i199001-199008
MAROON,TRIM3#
main71705-14061-02i199001-199008
MAROON,MAROON,TRIM3#
main71705-14061-03i199001-199108
MEDIUM GRAY,TRIM1#
main71705-14061-04i199001-199305
DEEP BLUE,TRIM8#
main71705-14061-12i199008-199108
DEEP RED,TRIM3#
main71705-14061-16i199001-199108
BROWN,TRIM4#
main71705-14061-B0i199108-199305
SHADOW GRAY,TRIM1#
main71705-14061-D0i199108-199305
DEEP RED,TRIM1#
main71705-14070-02i198808-199001
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71705-14070-02i198808-199001
W(LEATHER SEAT),MAROON,TRIM3#
main71705-14070-03i198808-199001
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14070-03i198808-199001
W(LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71705-14070-04i198808-199001
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14070-04i198808-199001
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71705-14070-06i198808-198908
W(SEAT HEATER & LEATHER SEAT),LIGHT BROWN,TRIM4#
main71705-14070-06i198808-198908
W(LEATHER SEAT),LIGHT BROWN,TRIM4#
main71705-14070-16i198908-199001
W(LEATHER SEAT),BROWN,BROWN,TRIM4#
main71705-14070-16i198908-199001
W(LEATHER SEAT),BROWN,TRIM4#
main71705-14080-02i198808-199001
MAROON,TRIM3#
main71705-14080-02i198808-199001
MAROON,MAROON,TRIM3#
main71705-14080-03i198808-199001
MEDIUM GRAY,TRIM1#
main71705-14080-03i198808-199001
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71705-14080-04i198808-199001
DEEP BLUE,DEEP BLUE,TRIM8#
main71705-14080-04i198808-199001
DEEP BLUE,TRIM8#
main71705-14080-06i198808-198908
W(SEAT HEATER),BROWN,TRIM4#
main71705-14080-06i198808-198908
BROWN,TRIM4#
main71705-14080-16i198908-199001
BROWN,TRIM4#
main71705-14080-16i198908-199001
BROWN,BROWN,TRIM4#
71705CSCREW(FOR FRONT SEATBACK BOARD)
main90149-50043-03i199108-199305
SHADOW GRAY,TRIM1#
main90149-50043-04i198808-199305
DEEP BLUE,TRIM8#
main90149-50043-12i198808-199008
MAROON,TRIM3#
main90149-50043-13i198808-199108
LIGHT GRAY,TRIM1#
main90149-50043-22i199008-199305
DEEP RED,TRIM3#
main90149-50043-36i198808-199008
LIGHT BROWN,TRIM4#
main90149-50043-46i199008-199108
TAN,TRIM4#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,TRIM1#
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71705-14051-02i199001-199008
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71705-14051-02i199001-199008
W(SEAT HEATER & LEATHER SEAT),MAROON,TRIM1#
main71705-14051-03i199001-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14051-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14051-03i199001-199108
W(LEATHER SEAT),LIGHT GRAY;LIGHT GRAY,LIGHT GRAY,TRIM1#
main71705-14051-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM3#
main71705-14051-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71705-14051-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM3#
main71705-14051-04i199001-199305
W(LEATHER SEAT),DEEP BLUE;DEEP BLUE,DEEP BLUE,TRIM8#
main71705-14051-04i199001-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14051-12i199008-199305
W(SEAT HEATER),DEEP RED,TRIM3#
main71705-14051-12i199008-199108
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71705-14051-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71705-14051-16i199001-199108
W(LEATHER SEAT),BROWN;BROWN,BROWN,TRIM4#
main71705-14051-16i199001-199008
W(LEATHER SEAT),BROWN,TRIM4#
main71705-14051-B0i199108-199305
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71705-14061-02i199001-199008
MAROON,TRIM3#
main71705-14061-02i199001-199008
MAROON,MAROON,TRIM3#
main71705-14061-03i199001-199108
MEDIUM GRAY,TRIM1#
main71705-14061-04i199001-199305
DEEP BLUE,TRIM8#
main71705-14061-12i199008-199108
DEEP RED,TRIM3#
main71705-14061-16i199001-199108
BROWN,TRIM4#
main71705-14061-B0i199108-199305
SHADOW GRAY,TRIM1#
main71705-14061-D0i199108-199305
DEEP RED,DEEP RED,TRIM1#
main71705-14061-D0i199108-199305
DEEP RED,TRIM1#
main71705-14070-02i198808-199001
W(LEATHER SEAT),MAROON,MAROON,TRIM3#
main71705-14070-02i198808-199001
W(LEATHER SEAT),MAROON,TRIM3#
main71705-14070-03i198808-199001
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71705-14070-03i198808-199001
W(LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71705-14070-04i198808-199001
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14070-04i198808-199001
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71705-14070-06i198808-198908
W(LEATHER SEAT),LIGHT BROWN,TRIM4#
main71705-14070-06i198808-198908
W(LEATHER SEAT),LIGHT BROWN,LIGHT BROWN,TRIM4#
main71705-14070-16i198908-199001
W(LEATHER SEAT),BROWN,TRIM4#
main71705-14070-16i198908-199001
W(LEATHER SEAT),BROWN,BROWN,TRIM4#
main71705-14080-02i198808-199001
MAROON,TRIM3#
main71705-14080-02i198808-199001
MAROON,MAROON,TRIM3#
main71705-14080-03i198808-199001
MEDIUM GRAY,TRIM1#
main71705-14080-03i198808-199001
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71705-14080-04i198808-199001
DEEP BLUE,TRIM8#
main71705-14080-04i198808-199001
DEEP BLUE,DEEP BLUE,TRIM8#
main71705-14080-06i198808-198908
BROWN,TRIM4#
main71705-14080-06i198808-198908
BROWN,BROWN,TRIM4#
main71705-14080-16i198908-199001
BROWN,BROWN,TRIM4#
main71705-14080-16i198908-199001
BROWN,TRIM4#
71813ASHIELD, FRONT SEATBACK, RH
main71813-12020-03i199108-199305
GRAY,TRIM1#
main71813-12020-13i198808-199108
LIGHT GRAY,TRIM1#
main71813-12020-14i198808-199305
DEEP BLUE,TRIM8#
main71813-12020-16i198808-199008
LIGHT BROWN,TRIM4#
main71813-12020-22i198808-199008
MAROON,TRIM3#
main71813-12020-26i199008-199108
TAN,TRIM4#
main71813-12020-32i199008-199305
DEEP RED,TRIM3#
71814ASHIELD, FRONT SEATBACK, LH
main71814-12010-03i199108-199305
GRAY,TRIM1#
main71814-12010-13i198808-199108
LIGHT GRAY,TRIM1#
main71814-12010-14i198808-199305
DEEP BLUE,TRIM8#
main71814-12010-16i198808-199008
LIGHT BROWN,TRIM4#
main71814-12010-22i198808-199008
MAROON,TRIM3#
main71814-12010-26i199008-199108
TAN,TRIM4#
main71814-12010-32i199008-199305
DEEP RED,TRIM3#
71910AHEADREST ASSY, FRONT SEAT
main71910-14680-12i198808-199008
MAROON,TRIM3#
main71910-14680-13i198808-199008
LIGHT GRAY,TRIM1#
main71910-14680-16i198808-198908
LIGHT BROWN,TRIM4#
main71910-14680-24i198808-199008
DEEP BLUE,TRIM8#
main71910-14680-26i198908-199008
TAN,TRIM4#
main71910-14691-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71910-14691-02i198908-199008
W(SEAT HEATER & LEATHER SEAT),MAROON,TRIM3#
main71910-14691-03i198808-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71910-14691-03i198908-199108
W(LEATHER SEAT),LIGHT GRAY,LIGHT GRAY,TRIM1#
main71910-14691-04i198808-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71910-14691-04i198908-199305
W(LEATHER SEAT),DEEP BLUE,DEEP BLUE,TRIM8#
main71910-14691-06i198808-198908
W(LEATHER SEAT),LIGHT BROWN,TRIM4#
main71910-14691-12i199008-199305
W(LEATHER SEAT),DEEP RED,DEEP RED,TRIM3#
main71910-14691-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71910-14691-16i198908-199108
W(LEATHER SEAT),TAN,TAN,TRIM4#
main71910-14691-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71910-14691-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71910-14691-C0i199108-199305
W(LEATHER SEAT),BLACK,BLACK,TRIM1#
main71910-14730-02i199008-199305
DEEP RED,TRIM3#
main71910-14730-03i199008-199108
LIGHT GRAY,TRIM1#
main71910-14730-04i199008-199305
DEEP BLUE,TRIM8#
main71910-14730-06i199008-199108
TAN,TRIM4#
main71910-14730-B1i199108-199305
SHADOW GRAY,TRIM1#
71911ASTAY, FRONT SEAT HEADREST, RH
main71911-14050i198908-199305
W(LEATHER SEAT)
main71911-14050i198808-198908
71912ASTAY, FRONT SEAT HEADREST, LH
main71912-14070i198908-199305
W(LEATHER SEAT)
main71912-14070i198808-198908
71931SUPPORT, FRONT SEAT HEADREST
main71930-14080-01i199108-199305
W(LOCK),BLACK,TRIM1#
main71930-14080-14i198808-199305
W(LOCK),DEEP BLUE,TRIM8#
main71930-14080-23i198808-199108
W(LOCK),LIGHT GRAY,TRIM1#
main71930-14080-42i198808-199008
W(LOCK),MAROON,TRIM3#
main71930-14080-46i198808-199008
W(LOCK),LIGHT BROWN,TRIM4#
main71930-14080-52i199008-199305
W(LOCK),DEEP RED,TRIM3#
main71930-14080-56i199008-199108
W(LOCK),TAN,TRIM4#
main71931-14010-01i199108-199305
W/O(LOCK),BLACK,TRIM1#
main71931-14010-14i198808-199305
W/O(LOCK),DEEP BLUE,TRIM8#
main71931-14010-23i198808-199108
W/O(LOCK),LIGHT GRAY,TRIM1#
main71931-14010-42i198808-199008
W/O(LOCK),MAROON,TRIM3#
main71931-14010-46i198808-199008
W/O(LOCK),LIGHT BROWN,TRIM4#
main71931-14010-52i199008-199305
W/O(LOCK),DEEP RED,TRIM3#
main71931-14010-56i199008-199108
W/O(LOCK),TAN,TRIM4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-20070i198808-199305
73172ACAP, FRONT SHOULDER BELT HANGER
main73172-14010-02i198808-199008
MAROON,TRIM3#,RH
main73172-14010-03i198808-199008
MEDIUM GRAY,TRIM1#,RH
main73172-14010-04i198808-199305
DEEP BLUE,TRIM8#,RH
main73172-14010-06i198808-199008
LIGHT BROWN,TRIM4#,RH
main73172-14010-12i199008-199305
DEEP RED,TRIM3#,RH
main73172-14010-13i199108-199305
RH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main73172-14010-23i199008-199108
SHADOW GRAY,TRIM1#,RH
main73172-14010-26i199008-199108
BROWN,TRIM4#,RH
main73173-14020-02i198808-199008
MAROON,TRIM3#,LH
main73173-14020-03i198808-199008
MEDIUM GRAY,TRIM1#,LH
main73173-14020-04i198808-199305
DEEP BLUE,TRIM8#,LH
main73173-14020-06i198808-199008
LIGHT BROWN,TRIM4#,LH
main73173-14020-12i199008-199305
DEEP RED,TRIM3#,LH
main73173-14020-13i199108-199305
LH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main73173-14020-23i199008-199108
SHADOW GRAY,TRIM1#,LH
main73173-14020-26i199008-199108
BROWN,TRIM4#,LH
73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)
main73176-14040-02i198808-198906
MAROON,TRIM3#
main73176-14040-03i198808-198906
MEDIUM GRAY,TRIM1#
main73176-14040-04i198808-198906
DEEP BLUE,TRIM8#
main73176-14040-06i198808-198906
LIGHT BROWN,TRIM4#
main73176-14041-02i198906-199006
MAROON,TRIM3#
main73176-14041-03i198906-199006
MEDIUM GRAY,TRIM1#
main73176-14041-04i198906-199006
DEEP BLUE,TRIM8#
main73176-14041-06i198906-199006
LIGHT BROWN,TRIM4#
main73176-14042-02i199006-199008
MAROON,TRIM3#
main73176-14042-03i199006-199008
MEDIUM GRAY,TRIM1#
main73176-14042-04i199006-199305
DEEP BLUE,TRIM8#
main73176-14042-06i199006-199008
LIGHT BROWN,TRIM4#
main73176-14042-12i199008-199305
DEEP RED,TRIM3#
main73176-14042-13i199108-199305
SHADOW GRAY,SHADOW GRAY,TRIM1#
main73176-14042-23i199008-199108
SHADOW GRAY,TRIM1#
main73176-14042-26i199008-199108
BROWN,TRIM4#
73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)
main73177-14040-02i198808-198906
MAROON,TRIM3#
main73177-14040-03i198808-198906
MEDIUM GRAY,TRIM1#
main73177-14040-04i198808-198906
DEEP BLUE,TRIM8#
main73177-14040-06i198808-198906
LIGHT BROWN,TRIM4#
main73177-14041-02i198906-199006
MAROON,TRIM3#
main73177-14041-03i198906-199006
MEDIUM GRAY,TRIM1#
main73177-14041-04i198906-199006
DEEP BLUE,TRIM8#
main73177-14041-06i198906-199006
LIGHT BROWN,TRIM4#
main73177-14042-02i199006-199008
MAROON,TRIM3#
main73177-14042-03i199006-199008
MEDIUM GRAY,TRIM1#
main73177-14042-04i199006-199305
DEEP BLUE,TRIM8#
main73177-14042-06i199006-199008
LIGHT BROWN,TRIM4#
main73177-14042-12i199008-199305
DEEP RED,TRIM3#
main73177-14042-23i199108-199305
SHADOW GRAY,SHADOW GRAY,TRIM1#
main73177-14042-23i199008-199108
SHADOW GRAY,TRIM1#
main73177-14042-26i199008-199108
BROWN,TRIM4#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9014960055
main90149-60055
9015960081
main90159-60081
9017908123
main90179-08123
9046816019
main90468-16019
9165160818
main91651-60818
9331915020
main93319-15020
9356054012
main93560-54012

38 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
