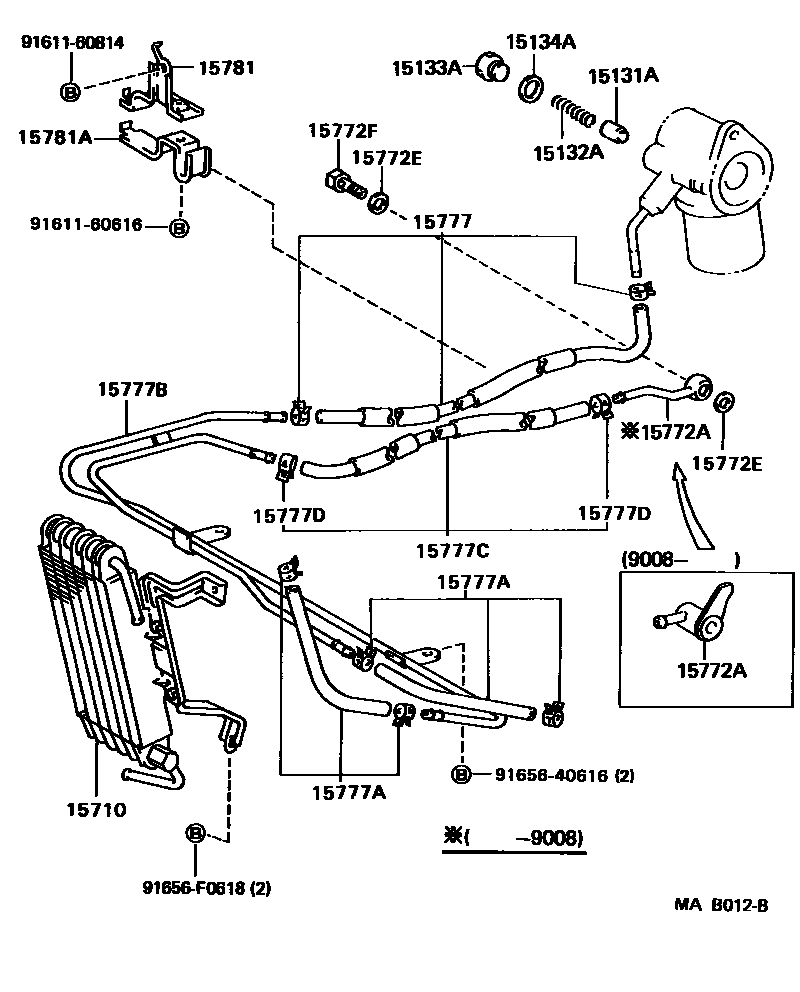

ENGINE OIL COOLER

15131AVALVE, OIL COOLER RELIEF

main15131-38030i7MGTE..MA70198808-198908

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-21010i7MGTE..MA70198808-198908

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010i7MGTE..MA70198808-198908

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010i7MGTE..MA70198808-198908

15710COOLER ASSY, OIL

main15710-42020i7MGTE..MA70198808-198908

15772AUNION(FOR OIL PIPE)

main90405-10019i7MGTE..MA70198808-198908

main90407-10023i7MGTE..MA70199008-199305

15772EGASKET(FOR OIL PIPE)

main90430-12018×2i7MGTE..MA70198808-198908

main90430-12023×2i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199008

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i7MGTE..MA70198808-198908

main90401-12031i7MGTE..MA70199008-199305

15777HOSE, OIL COOLER

main15778-42020i7MGTE..MA70198808-198908

15777AHOSE, OIL COOLER

main15779-42010×2i7MGTE..MA70198808-198908

15777BPIPE, OIL COOLER

main15707-42010i7MGTE..MA70198808-198908

15777CHOSE, OIL COOLER

main15777-42020i7MGTE..MA70198808-198908

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-16015×2i7MGTE..MA70198808-198908

15781BRACKET, OIL COOLER, NO.1

main15781-42030i7MGTE..MA70198808-198908

15781ACLAMP(FOR OIL COOLER BRACKET NO.1)

main90929-01160i7MGTE..MA70198808-198908

9161160616

main91611-60616

9161160814

main91611-60814

9165640616

main91656-40616

91656F0618

main91656-F0618

19 parts on this diagram · 1 diagram in section
