ENGINE OVERHAUL GASKET KIT

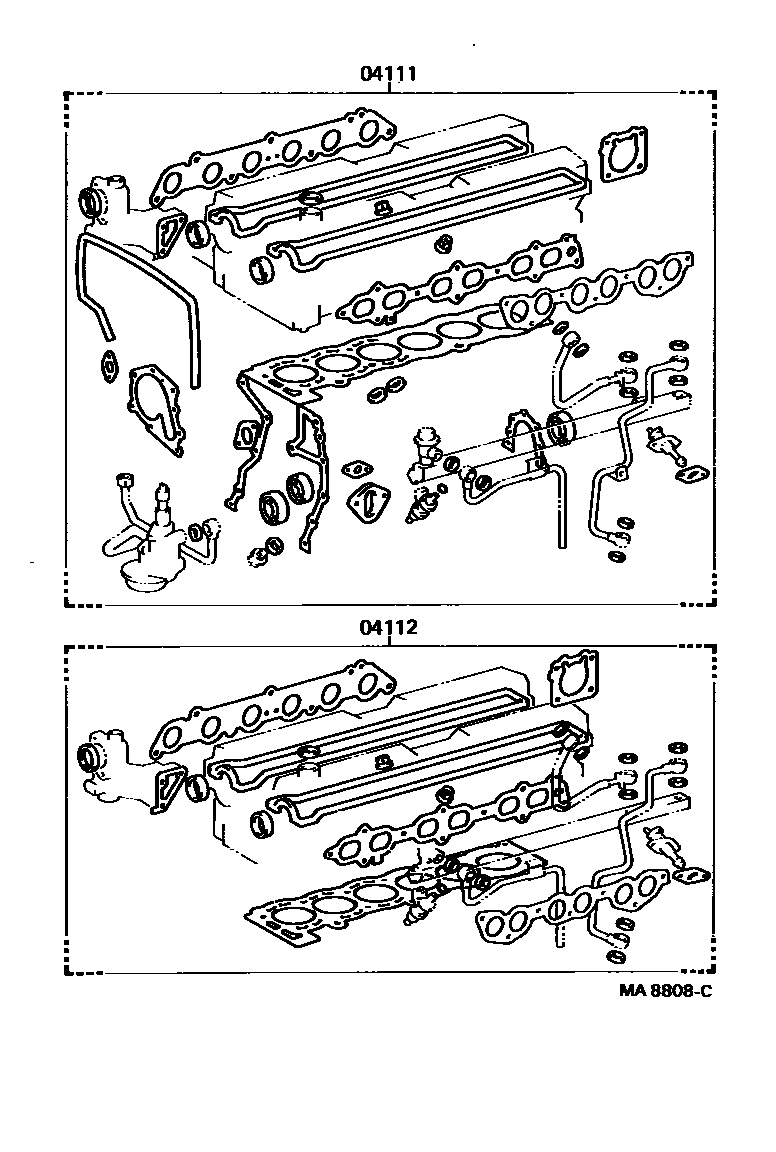

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-42020i198908-199008

main04111-42021i199008-199110

main04111-42022i199110-199111

main04111-42023i199111-199305

main04111-42030i198808-199008

main04111-42031i199008-199110

main04111-42032i199110-199111

main04111-42033i199111-199305

04112GASKET KIT, ENGINE VALVE GRIND

main04112-42020i198808-198908

main04112-42021i199008-199110

main04112-42022i199110-199111

main04112-42023i199111-199305

main04112-42030i198808-199008

main04112-42031i199008-199110

main04112-42032i199110-199111

main04112-42033i199111-199305

2 parts on this diagram · 2 diagrams in section
