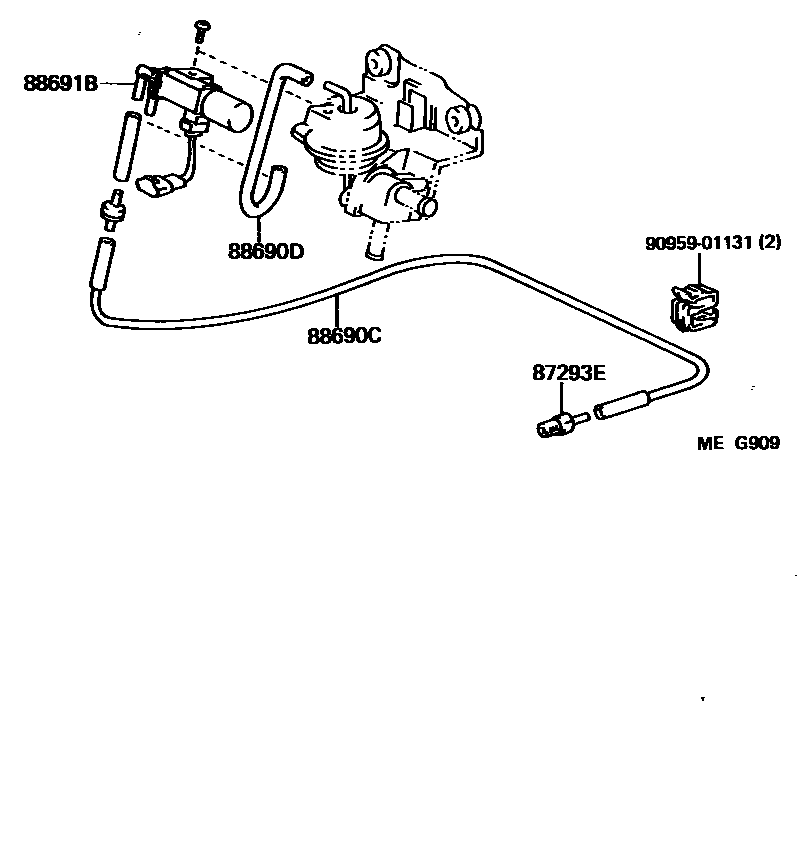

HEATING & AIR CONDITIONING - VACUUM PIPING

87293EUNION, HOSE

main90404-51093iMA70198601-198808

88690CHOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)

main95413-40065iMA70198601-198808

L=650

88690DHOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)

main90999-92002iMA70198803-198808

L=300

main95411-19930iMA70198601-198803

*H,L=300,MARK=#*

88691BVALVE, MAGNET (FOR WATER VALVE)

main88690-14820iMA70198606-198808

main88690-24050iMA70..TWC198601-198606

9095901131

main90959-01131

5 parts on this diagram · 1 diagram in section
