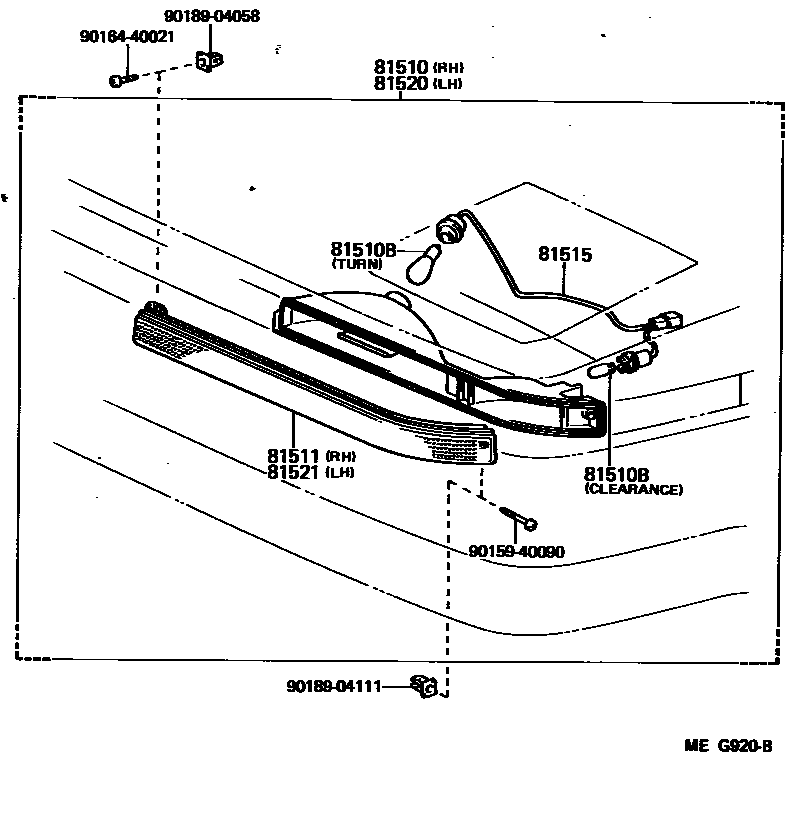

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-14350iMA70198601-198808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11020×2iMA70198601-198808

12V 3.8W,12V 3.8W(CLEARANCE)

main99132-11270×2iMA70198601-198808

12V 27W,12V 27W(TURN)

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-14350iMA70198601-198808

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-14330×2iMA70198601-198808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-14350iMA70198601-198808

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-14350iMA70198601-198808

9015940090

main90159-40090

9016440021

main90164-40021

9018904058

main90189-04058

9018904111

main90189-04111

10 parts on this diagram · 1 diagram in section
