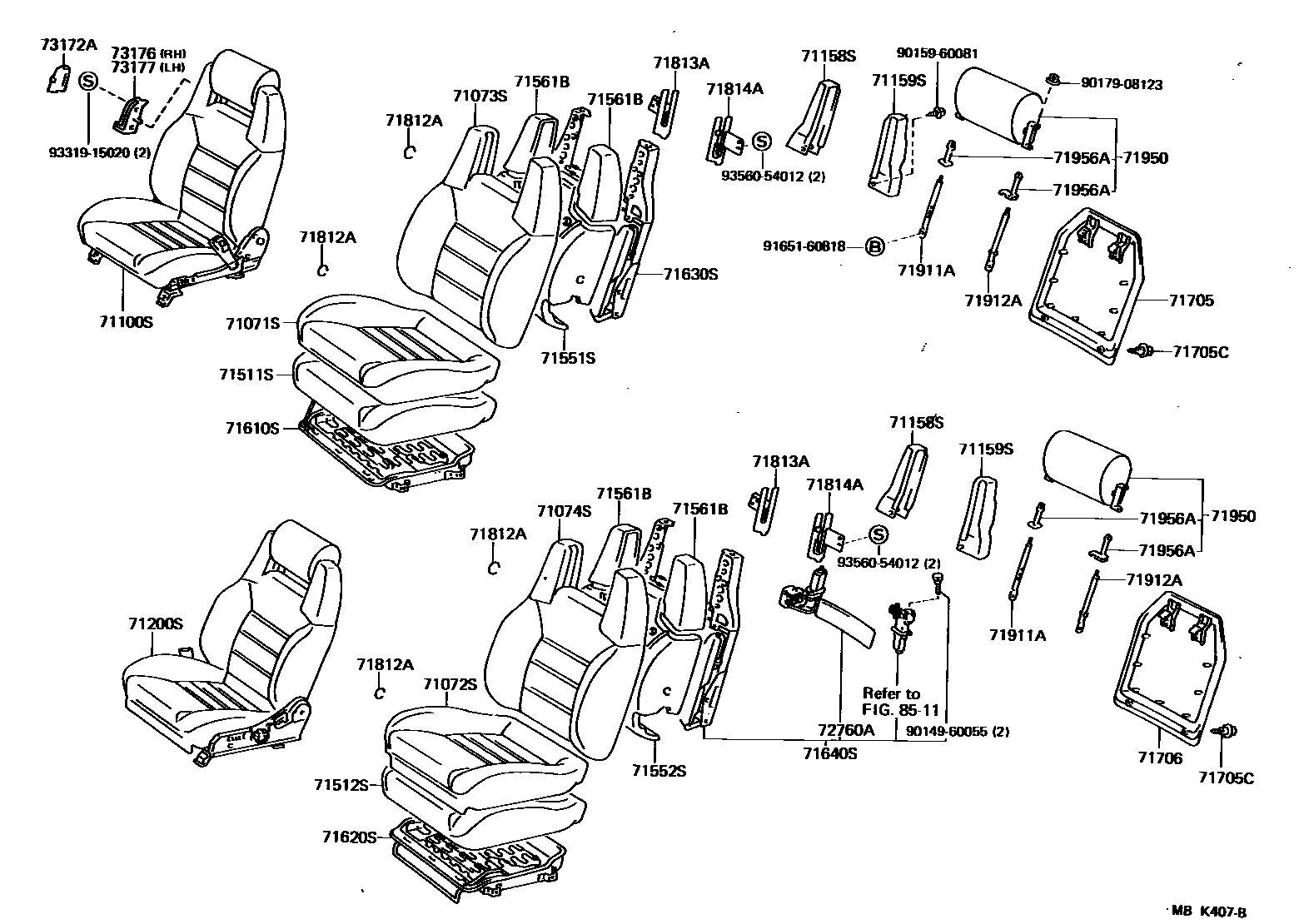

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1D180-02iMA70; MA70..USA198601-198708

FB,MAROON,MAROON,TRIM3#; FB,W/*PSE,MAROON,MAROON,TRIM3#

main71071-1D180-03iMA70; MA70..USA198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#; FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1#

main71071-1D180-04iMA70; MA70..USA198601-198708

FB,BLUE,DEEP BLUE,TRIM8#; FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71071-1D180-05iMA70; MA70..USA198601-198708

FB,BEIGE,BEIGE,TRIM4#; FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71071-1D181-02iMA70198708-198808

FB,MAROON,MAROON,TRIM3#

main71071-1D181-03iMA70198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71071-1D181-04iMA70198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71071-1D181-05iMA70198708-198808

FB,BEIGE,BEIGE,TRIM4#

main71071-1D240-02iMA70198601-198808

LEATHER,MAROON,MAROON,TRIM3#

main71071-1D240-03iMA70198601-198808

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71071-1D240-04iMA70198601-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71071-1D240-05iMA70198601-198808

LEATHER,BEIGE,BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1D190-02iMA70..USA198601-198708

FB,MAROON,MAROON,TRIM3#

main71072-1D190-03iMA70..USA198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#

main71072-1D190-04iMA70..USA198601-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71072-1D190-05iMA70..USA198601-198708

FB,BEIGE,BEIGE,TRIM4#

main71072-1D191-02iMA70..USA198708-198808

FB,MAROON,MAROON,TRIM3#

main71072-1D191-03iMA70..USA198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71072-1D191-04iMA70..USA198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71072-1D191-05iMA70..USA198708-198808

FB,BEIGE,BEIGE,TRIM4#

main71072-1D200-02iMA70198601-198708

FB,W/*PSE,MAROON,MAROON,TRIM3#

main71072-1D200-03iMA70198601-198708

FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1#

main71072-1D200-04iMA70198601-198708

FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71072-1D200-05iMA70198601-198708

FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71072-1D201-02iMA70198708-198808

FB,W/*PSE,MAROON,MAROON,TRIM3#

main71072-1D201-03iMA70198708-198808

FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1#

main71072-1D201-04iMA70198708-198808

FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71072-1D201-05iMA70198708-198808

FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71072-1D210-02iMA70198601-198808

LEATHER,MAROON,MAROON,TRIM3#

main71072-1D210-03iMA70198601-198808

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71072-1D210-04iMA70198601-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71072-1D210-05iMA70198601-198808

LEATHER,BEIGE,BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1B600-02iMA70198601-198708

FB,MAROON,MAROON,TRIM3#

main71073-1B600-03iMA70198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#

main71073-1B600-04iMA70198601-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71073-1B600-05iMA70198601-198708

FB,BEIGE,BEIGE,TRIM4#

main71073-1B601-02iMA70198708-198808

FB,MAROON,MAROON,TRIM3#

main71073-1B601-03iMA70198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71073-1B601-04iMA70198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71073-1B601-05iMA70198708-198808

FB,BEIGE,BEIGE,TRIM4#

main71073-1B610-02iMA70198601-198808

LEATHER,MAROON,MAROON,TRIM3#

main71073-1B610-03iMA70198601-198808

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71073-1B610-04iMA70198601-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71073-1B610-05iMA70198601-198808

LEATHER,BEIGE,BEIGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1B600-02iMA70198601-198708

FB,MAROON,MAROON,TRIM3#

main71073-1B600-03iMA70198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#

main71073-1B600-04iMA70198601-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71073-1B600-05iMA70198601-198708

FB,BEIGE,BEIGE,TRIM4#

main71074-14700-02iMA70198601-198808

LEATHER,MAROON,MAROON,TRIM3#

main71074-14700-03iMA70198601-198808

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71074-14700-04iMA70198601-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71074-14700-05iMA70198601-198808

LEATHER,BEIGE,BEIGE,TRIM4#

main71074-14810-02iMA70198708-198808

FB,MAROON,MAROON,TRIM3#

main71074-14810-03iMA70198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71074-14810-04iMA70198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71074-14810-05iMA70198708-198808

FB,BEIGE,BEIGE,TRIM4#

71100SSEAT ASSY, FRONT RH

main71010-14090-02iMA70198601-198708

LEATHER,MAROON,MAROON,TRIM3#

main71010-14090-03iMA70198601-198708

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71010-14090-04iMA70198601-198708

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71010-14090-05iMA70198601-198708

LEATHER,BEIGE,BEIGE,TRIM4#

main71010-14091-02iMA70198708-198808

LEATHER,MAROON,MAROON,TRIM3#

main71010-14091-03iMA70198708-198808

LEATHER,GRAY,MIDIUM GRAY,TRIM1#

main71010-14091-04iMA70198708-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71010-14091-05iMA70198708-198808

LEATHER,BEIGE,BEIGE,TRIM4#

main71010-14580-02iMA70..USA198601-198708

FB,MAROON,MAROON,TRIM3#

main71010-14580-03iMA70..USA198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#

main71010-14580-04iMA70..USA198601-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71010-14580-05iMA70..USA198601-198708

FB,BEIGE,BEIGE,TRIM4#

main71010-14581-02iMA70..USA198708-198808

FB,MAROON,MAROON,TRIM3#

main71010-14581-03iMA70..USA198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71010-14581-04iMA70..USA198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71010-14581-05iMA70..USA198708-198808

FB,BEIGE,BEIGE,TRIM4#

main71010-14590-02iMA70198601-198708

FB,W/*PSE,MAROON,MAROON,TRIM3#

main71010-14590-03iMA70198601-198708

FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1#

main71010-14590-04iMA70198601-198708

FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71010-14590-05iMA70198601-198708

FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71010-14591-02iMA70198708-198808

FB,W/*PSE,MAROON,MAROON,TRIM3#

main71010-14591-03iMA70198708-198808

FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1#

main71010-14591-04iMA70198708-198808

FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71010-14591-05iMA70198708-198808

FB,W/*PSE,BEIGE,BEIGE,TRIM4#

71158SFRAME, FRONT SEATBACK, UPPER RH

main71158-12060×2iMA70198601-198603

main71158-14060×2iMA70198603-198708

main71158-14070iMA70198708-198808

RH

71159SFRAME, FRONT SEATBACK, UPPER LH

main71159-12040×2iMA70198601-198603

main71159-14050×2iMA70198603-198708

main71159-14060iMA70198708-198808

LH

71200SSEAT ASSY, FRONT LH

main71020-14090-02iMA70198601-198708

LEATHER,MAROON,MAROON,TRIM3#

main71020-14090-03iMA70198601-198708

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71020-14090-04iMA70198601-198708

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71020-14090-05iMA70198601-198708

LEATHER,BEIGE,BEIGE,TRIM4#

main71020-14091-02iMA70..USA198708-198808

LEATHER,MAROON,MAROON,TRIM3#

main71020-14091-03iMA70..USA198708-198808

LEATHER,GRAY,MIDIUM GRAY,TRIM1#

main71020-14091-04iMA70..USA198708-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71020-14091-05iMA70..USA198708-198808

LEATHER,BEIGE,BEIGE,TRIM4#

main71020-14470-02iMA70..USA198601-198708

FB,MAROON,MAROON,TRIM3#

main71020-14470-03iMA70..USA198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#

main71020-14470-04iMA70..USA198601-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71020-14470-05iMA70..USA198601-198708

FB,BEIGE,BEIGE,TRIM4#

main71020-14471-02iMA70..USA198708-198808

FB,MAROON,MAROON,TRIM3#

main71020-14471-03iMA70..USA198708-198808

FB,GRAY,MIDIUM GRAY,TRIM1#

main71020-14471-04iMA70..USA198708-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71020-14471-05iMA70..USA198708-198808

FB,BEIGE,BEIGE,TRIM4#

main71020-14480-02iMA70; MA70..CND198601-198708

FB,MAROON,MAROON,TRIM3#; FB,W/*PSE,MAROON,MAROON,TRIM3#

main71020-14480-03iMA70; MA70..CND198601-198708

FB,GRAY,LIGHT GRAY,TRIM1#; FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1#

main71020-14480-04iMA70; MA70..CND198601-198708

FB,BLUE,DEEP BLUE,TRIM8#; FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71020-14480-05iMA70; MA70..CND198601-198708

FB,BEIGE,BEIGE,TRIM4#; FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71020-14481-02iMA70198708-198808

FB,W/*PSE,MAROON,MAROON,TRIM3#

main71020-14481-03iMA70198708-198808

FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1#

main71020-14481-04iMA70198708-198808

FB,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71020-14481-05iMA70198708-198808

FB,W/*PSE,BEIGE,BEIGE,TRIM4#

main71020-14761-02iMA70198708-198808

LEATHER,W/*PSE,MAROON,MAROON,TRIM3#

main71020-14761-03iMA70198708-198808

LEATHER,W/*PSE,GRAY,MIDIUM GRAY,TRIM1#

main71020-14761-04iMA70198708-198808

LEATHER,W/*PSE,BLUE,DEEP BLUE,TRIM8#

main71020-14761-05iMA70198708-198808

LEATHER,W/*PSE,BEIGE,BEIGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-14210iMA70198601-198808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-14020iMA70198601-198808

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-14210iMA70198601-198808

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-14210iMA70198601-198808

71561BPAD, FRONT SEATBACK, UPPER

main71561-14190×2iMA70198601-198708

RH

main71561-14210iMA70198708-198808

PASSENGER SEAT,RH

main71562-14060iMA70198708-198808

PASSENGER SEAT,LH

main71562-14070iMA70198708-198808

DRIVER SEAT,LH

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-14250iMA70198601-198808

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-14200iMA70..USA198601-198808

main71620-14260iMA70198601-198808

W/*PSE

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-14210iMA70198601-198708

main71630-14230iMA70198708-198808

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-14220iMA70198601-198708

main71640-14210iMA70198708-198808

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-14030-02iMA70198601-198808

VL,MAROON,MAROON,TRIM3#

main71705-14030-03iMA70198601-198808

VL,GRAY,LIGHT GRAY,TRIM1#

main71705-14030-04iMA70198601-198808

VL,BLUE,DEEP BLUE,TRIM8#

main71705-14030-05iMA70198601-198808

VL,BEIGE,BEIGE,TRIM4#

main71705-14040-02iMA70198601-198808

FB,MAROON,MAROON,TRIM3#

main71705-14040-03iMA70198601-198808

FB,GRAY,LIGHT GRAY,TRIM1#

main71705-14040-04iMA70198601-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71705-14040-05iMA70198601-198808

FB,BEIGE,BEIGE,TRIM4#

71705CSCREW(FOR FRONT SEATBACK BOARD)

main90149-50043-04×4iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main90149-50043-05×4iMA70198601-198808

BEIGE,BEIGE,TRIM4#

main90149-50043-12×4iMA70198601-198808

MAROON,MAROON,TRIM3#

main90149-50043-13×4iMA70198601-198808

GRAY,LIGHT GRAY,TRIM1#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-14030-02iMA70198601-198808

VL,MAROON,MAROON,TRIM3#

main71705-14030-03iMA70198601-198808

VL,GRAY,LIGHT GRAY,TRIM1#

main71705-14030-04iMA70198601-198808

VL,BLUE,DEEP BLUE,TRIM8#

main71705-14030-05iMA70198601-198808

VL,BEIGE,BEIGE,TRIM4#

main71705-14040-02iMA70198601-198808

FB,MAROON,MAROON,TRIM3#

main71705-14040-03iMA70198601-198808

FB,GRAY,LIGHT GRAY,TRIM1#

main71705-14040-04iMA70198601-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71705-14040-05iMA70198601-198808

FB,BEIGE,BEIGE,TRIM4#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iMA70198601-198808

71813ASHIELD, FRONT SEATBACK, RH

main71813-12020-05×2iMA70198601-198808

BEIGE,BEIGE,TRIM4#

main71813-12020-13×2iMA70198601-198808

GRAY,LIGHT GRAY,TRIM1#

main71813-12020-14×2iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main71813-12020-22×2iMA70198601-198808

MAROON,MAROON,TRIM3#

71814ASHIELD, FRONT SEATBACK, LH

main71814-12010-05×2iMA70198601-198808

BEIGE,BEIGE,TRIM4#

main71814-12010-13×2iMA70198601-198808

GRAY,LIGHT GRAY,TRIM1#

main71814-12010-14×2iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main71814-12010-22×2iMA70198601-198808

MAROON,MAROON,TRIM3#

71911ASTAY, FRONT SEAT HEADREST, RH

main71911-14050×2iMA70198601-198808

71912ASTAY, FRONT SEAT HEADREST, LH

main71912-14070×2iMA70198601-198808

71950HEADREST ASSY, FRONT SEAT

main71910-14680-02×2iMA70198601-198808

FB,MAROON,MAROON,TRIM3#

main71910-14680-03×2iMA70198601-198808

FB,GRAY,LIGHT GRAY,TRIM1#

main71910-14680-04×2iMA70198601-198808

FB,BLUE,DEEP BLUE,TRIM8#

main71910-14680-05×2iMA70198601-198808

FB,BEIGE,BEIGE,TRIM4#

main71910-14690-02×2iMA70198601-198808

LEATHER,MAROON,MAROON,TRIM3#

main71910-14690-03×2iMA70198601-198808

LEATHER,GRAY,LIGHT GRAY,TRIM1#

main71910-14690-04×2iMA70198601-198808

LEATHER,BLUE,DEEP BLUE,TRIM8#

main71910-14690-05×2iMA70198601-198808

LEATHER,BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-14080-05×2iMA70198601-198808

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

main71930-14080-14×2iMA70198601-198808

W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8#

main71930-14080-23×2iMA70198601-198808

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

main71930-14080-42×2iMA70198601-198808

W(LOCK),W/LOCK,MAROON,MAROON,TRIM3#

main71931-14010-05×2iMA70198601-198808

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

main71931-14010-14×2iMA70198601-198808

W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8#

main71931-14010-23×2iMA70198601-198808

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

main71931-14010-42×2iMA70198601-198808

W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3#

72760AADJUSTER ASSY, LUMBAR SUPPORT

main72750-20070iMA70198601-198808

73172ACAP, FRONT SHOULDER BELT HANGER

main73172-14010-02iMA70198708-198808

RH,MAROON,MAROON,TRIM3#

main73172-14010-03iMA70198708-198808

RH,GRAY,MEDIUM GRAY,TRIM1#

main73172-14010-04iMA70198708-198808

RH,BLUE,DEEP BLUE,TRIM8#

main73172-14010-05iMA70198708-198808

RH,BEIGE,BEIGE,TRIM4#

main73173-14020-02iMA70198708-198808

LH,MAROON,MAROON,TRIM3#

main73173-14020-03iMA70198708-198808

LH,GRAY,MEDIUM GRAY,TRIM1#

main73173-14020-04iMA70198708-198808

LH,BLUE,DEEP BLUE,TRIM8#

main73173-14020-05iMA70198708-198808

LH,BEIGE,BEIGE,TRIM4#

73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)

main73176-14040-02iMA70198708-198808

MAROON,MAROON,TRIM3#

main73176-14040-03iMA70198708-198808

GRAY,MEDIUM GRAY,TRIM1#

main73176-14040-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

main73176-14040-05iMA70198708-198808

BEIGE,BEIGE,TRIM4#

73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)

main73177-14040-02iMA70198708-198808

MAROON,MAROON,TRIM3#

main73177-14040-03iMA70198708-198808

GRAY,MEDIUM GRAY,TRIM1#

main73177-14040-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

main73177-14040-05iMA70198708-198808

BEIGE,BEIGE,TRIM4#

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9014960055

main90149-60055

9015960081

main90159-60081

9017908123

main90179-08123

9165160818

main91651-60818

9331915020

main93319-15020

9356054012

main93560-54012

38 parts on this diagram · 2 diagrams in section
