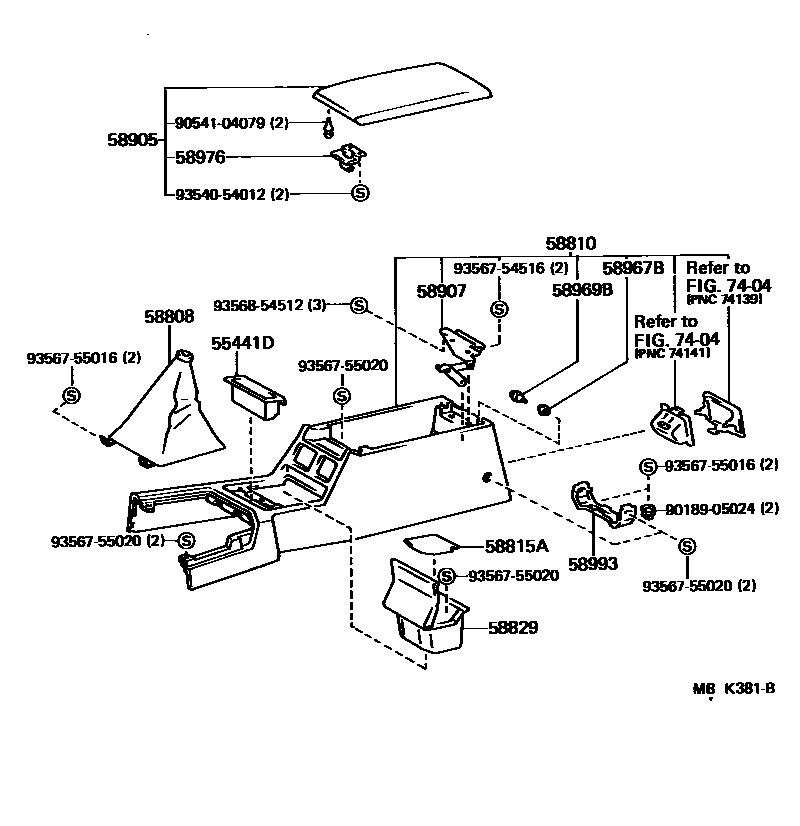

CONSOLE BOX & BRACKET
55441DBOX, INSTRUMENT PANEL COIN
58808COVER SUB-ASSY, SHIFTING HOLE
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58810CONSOLE ASSY
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58815ACARPET, CONSOLE BOX
58829POCKET, CONSOLE BOX
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58967BSPACER, CONSOLE COMPARTMENT DOOR STOPPER
58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7404
9018905024
main90189-05024
9054104079
main90541-04079
9354054012
main93540-54012
9356754516
main93567-54516
9356755016
main93567-55016
9356755020
main93567-55020
9356854512
main93568-54512
19 parts on this diagram · 1 diagram in section
