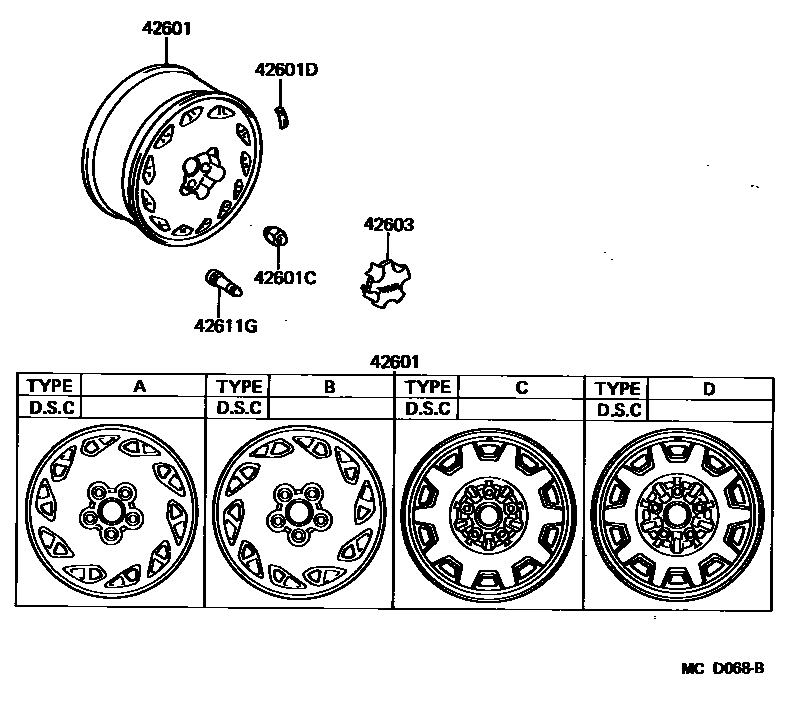

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X7JJ,LH,TYPE A
16X7JJ,RH,TYPE B
16X7JJ,SPARE TIRE,TYPE C
16X7JJ,7JJ-16,STEEL,TYPE D,SILVER
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
10G,10G,ALUMI WHEEL
15G,15G,ALUMI WHEEL
20G,20G,ALUMI WHEEL
25G,25G,ALUMI WHEEL
30G,30G,ALUMI WHEEL
35G,35G,ALUMI WHEEL
40G,40G,ALUMI WHEEL
45G,45G,ALUMI WHEEL
50G,50G,ALUMI WHEEL
55G,55G,ALUMI WHEEL
60G,60G,ALUMI WHEEL
65G,65G,ALUMI WHEEL
70G,70G,ALUMI WHEEL
75G,75G,ALUMI WHEEL
80G,80G,ALUMI WHEEL
5G,5G,ALUMI WHEEL
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU
42611GVALVE (FOR TUBELESS TIRE)
5 parts on this diagram · 1 diagram in section
