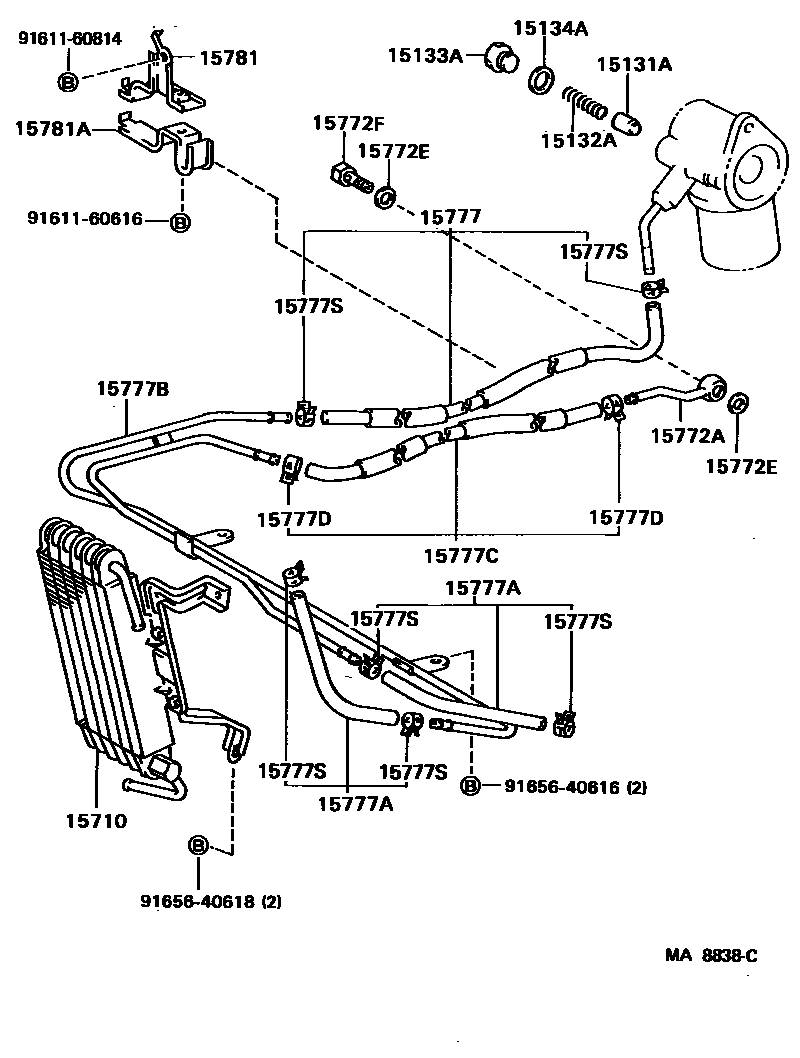

ENGINE OIL COOLER

15131AVALVE, OIL COOLER RELIEF

main15131-38030i7MGTE..MA70198608-198808

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-21010i7MGTE..MA70198608-198808

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010i7MGTE..MA70198608-198808

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010i7MGTE..MA70198608-198808

15710COOLER ASSY, OIL

main15710-42020i7MGTE..MA70198608-198808

15772AUNION(FOR OIL PIPE)

main90405-10019i7MGTE..MA70198608-198808

15772EGASKET(FOR OIL PIPE)

main90430-12018×2i7MGTE..MA70198608-198808

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i7MGTE..MA70198608-198808

15777HOSE, OIL COOLER

main15778-42020i7MGTE..MA70198608-198808

15777AHOSE, OIL COOLER

main15779-42010×2i7MGTE..MA70198608-198808

15777BPIPE, OIL COOLER

main15707-42010i7MGTE..MA70198608-198808

15777CHOSE, OIL COOLER

main15777-42020i7MGTE..MA70198608-198808

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-16004×2i7MGTE..MA70198608-198802

main90467-16015×2i7MGTE..MA70198802-198808

15777SCLAMP OR CLIP, HOSE

main90467-16015×6i7MGTE..MA70198802-198808

15781BRACKET, OIL COOLER, NO.1

main15781-42030i7MGTE..MA70198608-198808

15781ACLAMP(FOR OIL COOLER BRACKET NO.1)

main90929-01160i7MGTE..MA70198608-198808

9161160616

main91611-60616

9161160814

main91611-60814

9165640616

main91656-40616

9165640618

main91656-40618

20 parts on this diagram · 1 diagram in section
