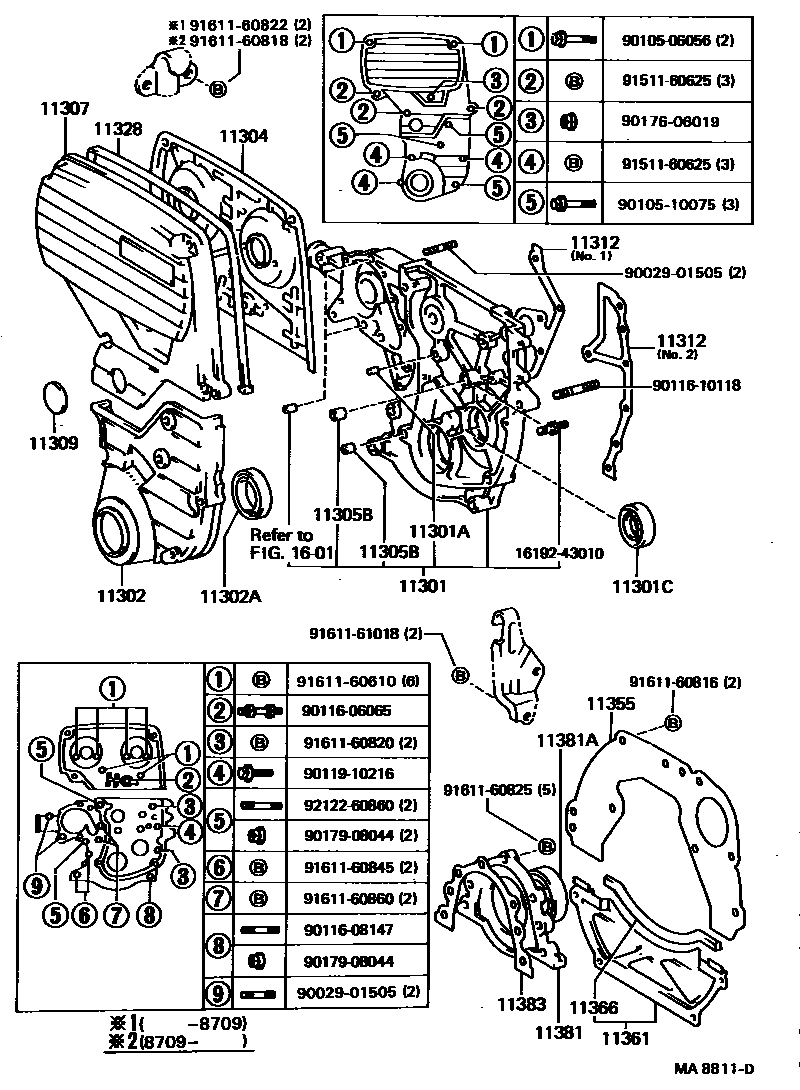

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301APIN, STRAIGHT(FOR TIMING GEAR CASE)
L=15,OD=8
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
11304COVER, TIMING CHAIN OR BELT, NO.2
11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)
OD=11
OD=13
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11309COVER SUB-ASSY, TIMING BELT, NO.4
11312GASKET, FRONT END PLATE
NO.1
NO.2
11328GASKET, TIMING GEAR OR CHAIN COVER
11355PLATE, REAR END
11361COVER, FLYWHEEL HOUSING UNDER
11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
1601WATER PUMP
1619243010
main16192-43010
9002901505
main90029-01505
9010506056
main90105-06056
9010510075
main90105-10075
9011606065
main90116-06065
9011608147
main90116-08147
9011610118
main90116-10118
9011910216
main90119-10216
9017606019
main90176-06019
9017908044
main90179-08044
9151160625
main91511-60625
9161160610
main91611-60610
9161160816
main91611-60816
9161160818
main91611-60818
9161160820
main91611-60820
9161160822
main91611-60822
9161160825
main91611-60825
9161160845
main91611-60845
9161160860
main91611-60860
9161161018
main91611-61018
9212260860
main92122-60860
39 parts on this diagram · 1 diagram in section
