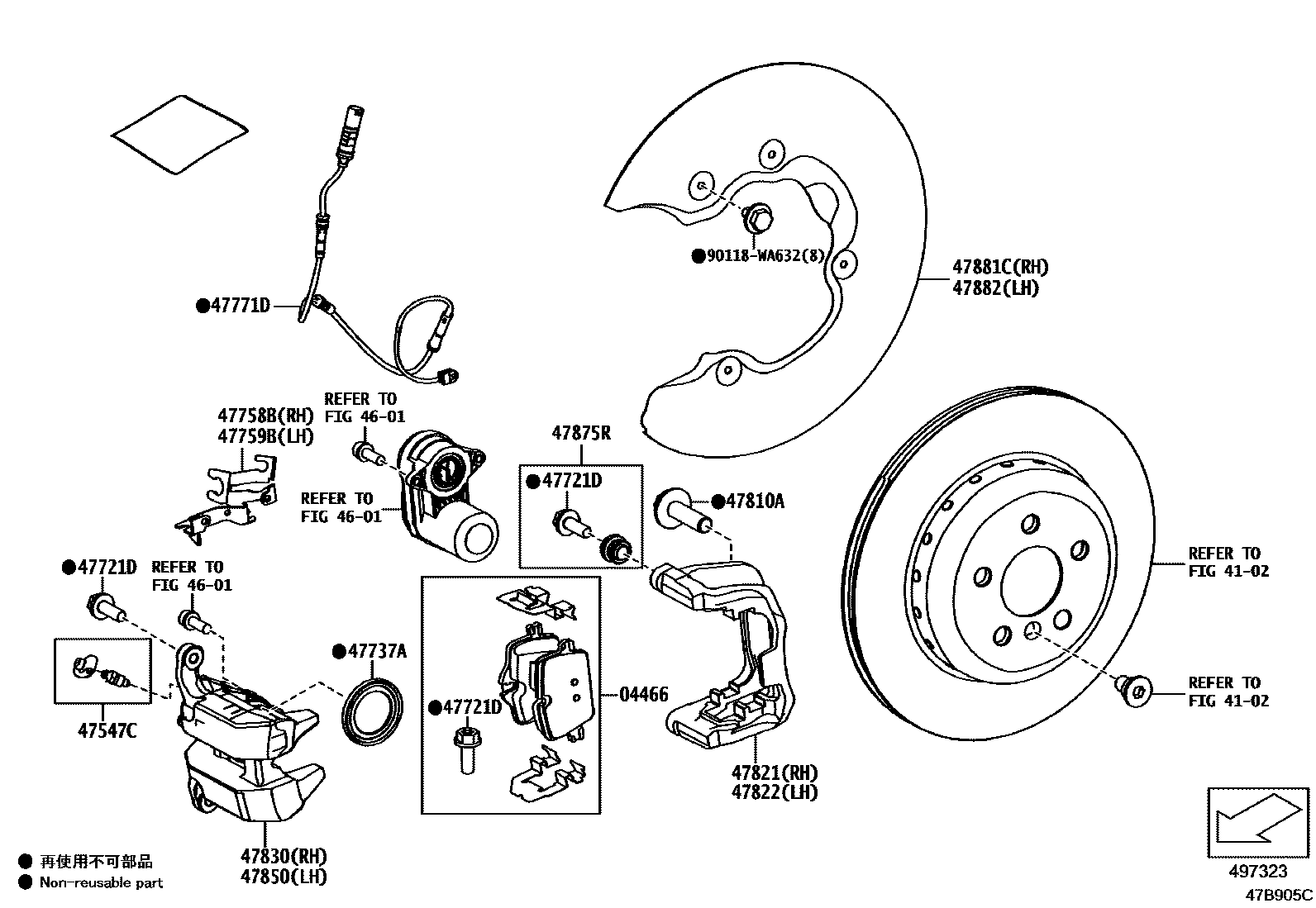

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-WAA01i201903

FRONT WHEEL BRAKE-17OL NO COLOR 348X36; FRONT WHEEL BRAKE-17UL NO COLOR 330X24

main04466-WAA03i201903

FRONT WHEEL BRAKE-17OL BLACK WITH LOGO; FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-WAA04×2i201903-202006

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90118-WA651×4i201903-202006

M8X1.0

47737ASEAL, REAR DISC BRAKE CYLINDER PISTON

main47737-WAA02×2i201903

FRONT WHEEL BRAKE-17OL NO COLOR 348X36; FRONT WHEEL BRAKE-17UL NO COLOR 330X24

main47737-WAA03×2i201903

FRONT WHEEL BRAKE-17OL BLACK WITH LOGO; FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

47758BBRACKET, WIRE CLAMP, RH NO.1

main47758-WAA01i201903-202006

47759BBRACKET, WIRE CLAMP, LH NO.1

main47759-WAA01i201903-202006

47771DWIRE, PAD WEAR INDICATOR RH

main47770-WAA03i201903-202006

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90118-WA852×4i201903

FRONT WHEEL BRAKE-17OL BLACK WITH LOGO; FRONT WHEEL BRAKE-17OL NO COLOR 348X36; FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-17UL NO COLOR 330X24; FRONT WHEEL BRAKE-RED PAINTED

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-WAA01i201903-202006

main47821-WAA02i202003

FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-WAA01i201903-202006

main47822-WAA02i202003

FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47813-WAA03i201903-202006

main47813-WAA04i201903

FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47823-WAA03i201903

FRONT WHEEL BRAKE-17OL NO COLOR 348X36; FRONT WHEEL BRAKE-17UL NO COLOR 330X24

main47823-WAA04i202003

FRONT WHEEL BRAKE-17OL RED WITH LOGO; FRONT WHEEL BRAKE-RED PAINTED

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-WAA02×2i201903-202006

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-WAA01i201903-202006

47882COVER, DISC BRAKE DUST, REAR LH

main47882-WAA01i201903-202006

90118WA632

main90118-WA632

18 parts on this diagram · 1 diagram in section
