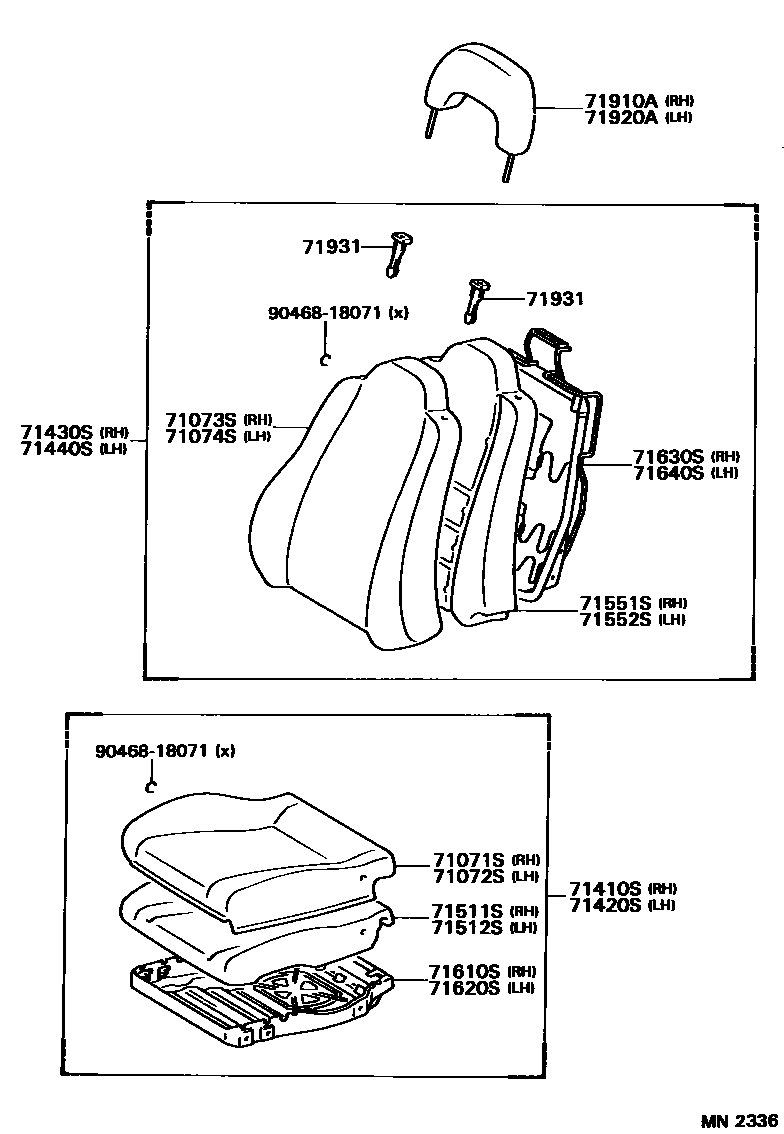

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1D440-C1iJZA80..LHD199305-199408

BLACK,TRIM2#

main71071-1D450-A0iJZA80..GCC; JZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71071-1D450-C1iJZA80..GEN; JZA80..LHD..(EUR,GCC)199508-199601

BLACK,BLACK,TRIM2#; BLACK,TRIM2#

main71071-1D460-C1iJZA80..RHD199305-199408

BLACK,TRIM2#

main71071-1D470-A0iJZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71071-1D470-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71071-1D480-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71071-1D480-C1iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71071-1D490-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71071-1D490-C1iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1D510-C1iJZA80..LHD199305-199408

BLACK,TRIM2#

main71072-1D520-A0iJZA80..GCC; JZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71072-1D520-C1iJZA80..GEN; JZA80..LHD..(EUR,GCC)199508-199601

BLACK,BLACK,TRIM2#; BLACK,TRIM2#

main71072-1D530-C1iJZA80..RHD199305-199408

BLACK,TRIM2#

main71072-1D540-A0iJZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71072-1D540-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71072-1D550-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71072-1D550-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71072-1D560-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71072-1D560-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1B810-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71073-1B810-C1iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71073-1B811-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71073-1B811-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71073-1B850-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71073-1B850-C1iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71073-1B851-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71073-1B851-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71073-1D030-C1iJZA80199305-199408

BLACK,TRIM2#

main71073-1D040-A0iJZA80..GCC;JZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71073-1D040-C1iJZA80..GCC;JZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71073-1D041-A0iJZA80..GCC199408-199508

W(LEATHER SEAT),IVORY,TRIM0#

main71073-1D041-C1iJZA80..GCC; JZA80..RHD199408-199508

BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#

main71073-1D090-A0iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71073-1D090-C1iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71073-1D091-A0iJZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#

main71073-1D091-C1iJZA80..LHD..(EUR,GEN)199408-199605

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1B870-A0iJZA80..LHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71073-1B870-C1iJZA80..LHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71073-1B871-A0iJZA80..GEN199508-199601

IVORY,IVORY,TRIM0#

main71073-1B871-C1iJZA80..GEN; JZA80..LHD..(EUR,GCC)199508-199601

BLACK,BLACK,TRIM2#; BLACK,TRIM2#

main71073-1B880-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71073-1B880-C1iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71073-1B881-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71073-1B881-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71073-1B890-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71073-1B890-C1iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71073-1D030-C1iJZA80..GCC199305-199508

BLACK,TRIM2#

main71073-1D070-C1iJZA80..EUR,GEN199305-199408

BLACK,TRIM2#

main71073-1D080-A0iJZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71073-1D080-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71073-1D081-C1iJZA80..RHD199408-199601

BLACK,TRIM2#

main71073-1D100-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71073-1D100-C0iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-1D560-C1iJZA80..LHD..(EUR,GEN)199305-199408

BLACK,TRIM2#

main71410-1D570-A0iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71410-1D570-C1iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71410-1D580-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71410-1D580-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71410-1D590-C1iJZA80..RHD199305-199408

BLACK,TRIM2#

main71410-1D600-A0iJZA80..RHD199408-199601

IVORY,TRIM0#

main71410-1D600-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71410-1D610-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71410-1D610-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-1D610-C1iJZA80..LHD..(EUR,GEN)199305-199408

BLACK,TRIM2#

main71420-1D620-A0iJZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#

main71420-1D620-C1iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71420-1D630-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71420-1D630-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71420-1D640-C1iJZA80..RHD199305-199408

BLACK,TRIM2#

main71420-1D650-A0iJZA80..RHD199408-199601

IVORY,TRIM0#

main71420-1D650-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71420-1D660-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71420-1D660-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-1D400-C1iJZA80..EUR,GEN199305-199408

BLACK,TRIM2#

main71430-1D410-A0iJZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71430-1D410-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71430-1D411-C1iJZA80..RHD199408-199601

BLACK,TRIM2#

main71430-1D430-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71430-1D430-C1iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71430-1D431-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71430-1D431-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71430-1D440-A0iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71430-1D440-C1iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71430-1D441-A0iJZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#

main71430-1D441-C1iJZA80..LHD..(EUR,GEN)199408-199605

BLACK,TRIM2#

main71430-1D450-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71430-1D450-C1iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71430-1D451-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71430-1D451-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-1D420-C1iJZA80..EUR,GEN199305-199408

BLACK,TRIM2#

main71440-1D430-A0iJZA80..RHD199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71440-1D430-C1iJZA80..RHD199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71440-1D431-C1iJZA80..RHD199408-199601

BLACK,TRIM2#

main71440-1D440-A0iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71440-1D440-C1iJZA80..RHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71440-1D441-A0iJZA80..RHD199408-199601

W(SEAT HEATER),IVORY,TRIM0#

main71440-1D441-C1iJZA80..RHD199408-199601

W(SEAT HEATER),BLACK,TRIM2#

main71440-1D450-A0iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71440-1D450-C1iJZA80..LHD..(EUR,GEN)199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71440-1D451-A0iJZA80..LHD..(EUR,GEN)199408-199508

IVORY,TRIM0#

main71440-1D451-C1iJZA80..LHD..(EUR,GEN)199408-199605

BLACK,TRIM2#

main71440-1D460-A0iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0#

main71440-1D460-C1iJZA80..LHD..EUR199305-199408

W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2#

main71440-1D461-A0iJZA80..LHD..EUR199408-199508

W(SEAT HEATER),IVORY,TRIM0#

main71440-1D461-C1iJZA80..LHD..EUR199408-199601

W(SEAT HEATER),BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-14220iJZA80199305-199605

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-14030iJZA80199305-199605

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-14220iJZA80199305-199605

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-14220iJZA80199305-199605

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-14270iJZA80..LHD..EUR199408-199601

main71610-14280iJZA80..LHD199305-199605

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-14270iJZA80..LHD..EUR199305-199408

main71610-14280iJZA80..LHD..EUR199408-199601

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-14250iJZA80199305-199605

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-14250iJZA80199305-199605

71910AHEADREST ASSY, FRONT SEAT

main71910-14740iJZA80..GCC199305-199605

main71910-14740-C0iJZA80..EUR,GEN199305-199408

BLACK,TRIM2#

main71910-14760-A0iJZA80199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71910-14760-C0iJZA80199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71910-14761-A0iJZA80..EUR,GEN; JZA80..GCC199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71910-14761-A1iJZA80..GCC;JZA80..RHD199508-199605

IVORY,TRIM0#

main71910-14761-C0iJZA80..EUR; JZA80..GCC199408-199508

BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#

71920AHEADREST ASSY, FRONT SEAT, LH

main71920-14090iJZA80..GCC199305-199508

main71920-14090-C0iJZA80..EUR,GEN199305-199408

BLACK,TRIM2#

main71920-14110-A0iJZA80199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71920-14110-C0iJZA80199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71920-14111-A0iJZA80..EUR,GEN; JZA80..GCC199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71920-14111-A1iJZA80..GCC;JZA80..RHD199508-199605

IVORY,TRIM0#

main71920-14111-C0iJZA80..EUR; JZA80..GCC199408-199508

BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-22×4iJZA80..GCC; JZA80..GEN199601-199605

W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#

9046818071

main90468-18071

20 parts on this diagram · 3 diagrams in section
