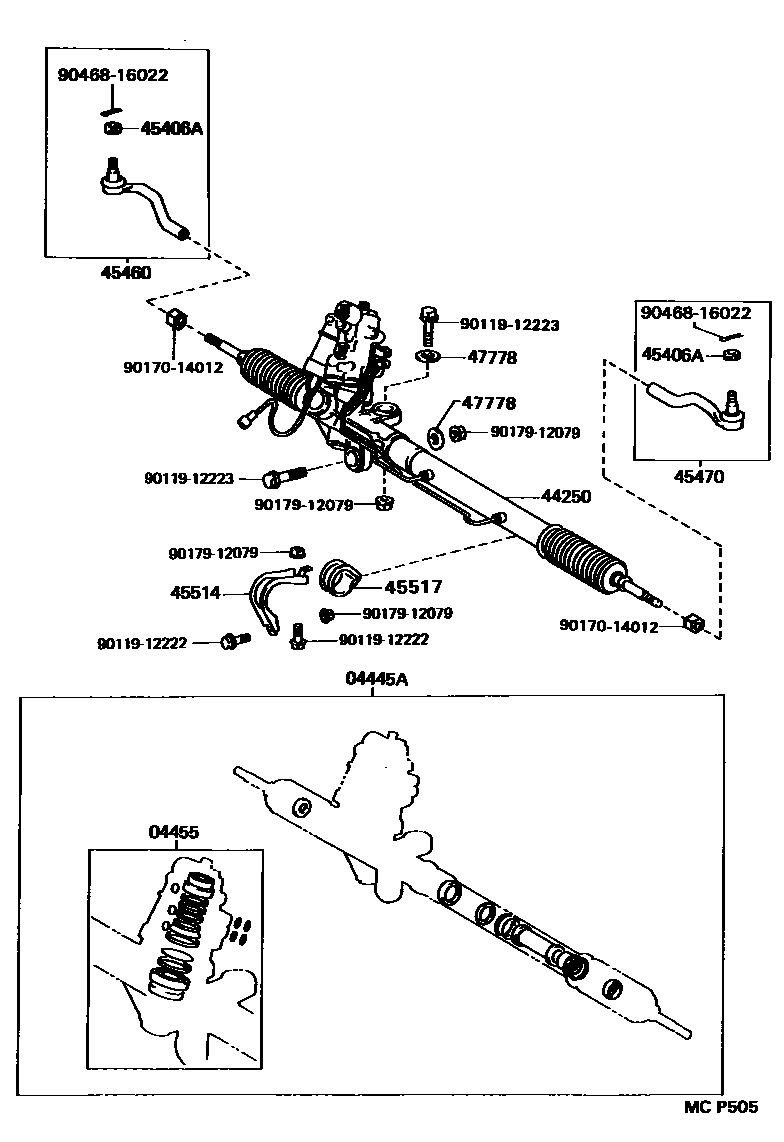

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-14040iJZA80199305-199605

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-24051iJZA80199305-199605

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14210iJZA80..RHD199305-199408

sub44250-14211

sub89656-14010

main44250-14211iJZA80..RHD199408-199505

sub44250-14230

sub89650-14093

main44250-14212iJZA80..RHD199505-199601

sub44250-14230

sub89650-14093

main44250-14220iJZA80..LHD199305-199408

sub44250-14221

sub89656-14010

main44250-14221iJZA80..LHD199408-199505

sub44250-14222

sub89650-14082

sub89650-14102

main44250-14222iJZA80..LHD199505-199605

sub44250-14240

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12002iJZA80199305-199605

45460ROD ASSY, TIE, RH

main45460-19235iJZA80199305-199605

45470ROD ASSY, TIE, LH

main45470-19065iJZA80199305-199605

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-24030iJZA80199305-199605

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14040iJZA80199305-199605

47778RETAINER, STEERING RACK HOUSING

main47778-24010iJZA80199305-199605

9011912222

main90119-12222

9011912223

main90119-12223

9017014012

main90170-14012

9017912079

main90179-12079

9046816022

main90468-16022

14 parts on this diagram · 4 diagrams in section
