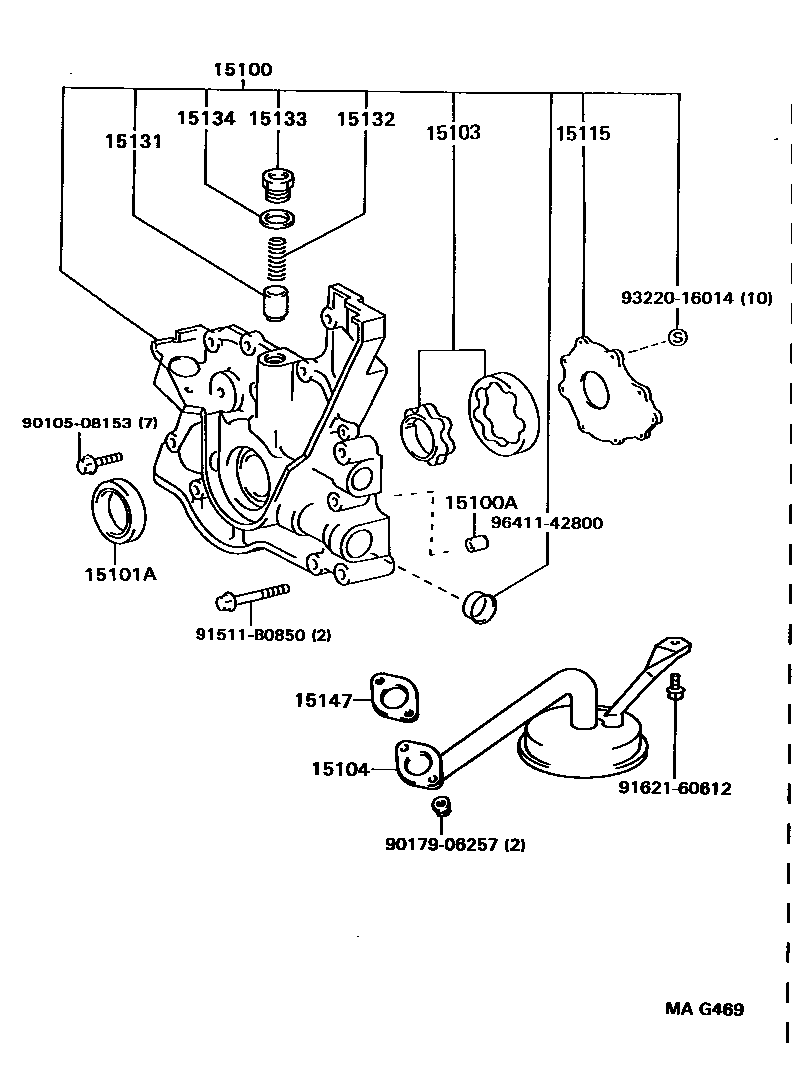

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-46041i2JZGE..JZA80199305-199602

main15100-46042i2JZGE..JZA80199602-199605

main15100-46051i2JZGTE..JZA80199305-199601

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i2JZ#..JZA80199305-199605

15101BODY SUB-ASSY, OIL PUMP

main15101-46051i2JZGTE..JZA80199305-199601

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i2JZ#..JZA80199305-199605

15103GEAR SET, OIL PUMP

main15103-46040i2JZGE..JZA80199305-199309

main15103-46070i2JZGE..JZA80199309-199605

15104STRAINER SUB-ASSY, OIL

main15104-46030i2JZ#..JZA80199305-199605

15115COVER, OIL PUMP

main15115-46040i2JZGE..JZA80199305-199605

main15115-46050i2JZGTE..JZA80199305-199601

15131VALVE, OIL PUMP RELIEF

main15131-17010i2JZGE..JZA80199305-199605

main15131-46050i2JZGTE..JZA80199305-199601

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2JZGE..JZA80199305-199605

main15132-46050i2JZGTE..JZA80199305-199601

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JZA80199305-199605

main15133-46050i2JZGTE..JZA80199305-199601

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i2JZGE..JZA80199305-199508

main15134-67020i2JZGE..JZA80199508-199605

15147GASKET, OIL STRAINER

main15147-46010i2JZ#..JZA80199305-199605

9010508153

main90105-08153

9017906257

main90179-06257

91511B0850

main91511-B0850

9162160612

main91621-60612

9322016014

main93220-16014

9641142800

main96411-42800

18 parts on this diagram · 2 diagrams in section
