EPC Data

FRONT SEAT & SEAT TRACK

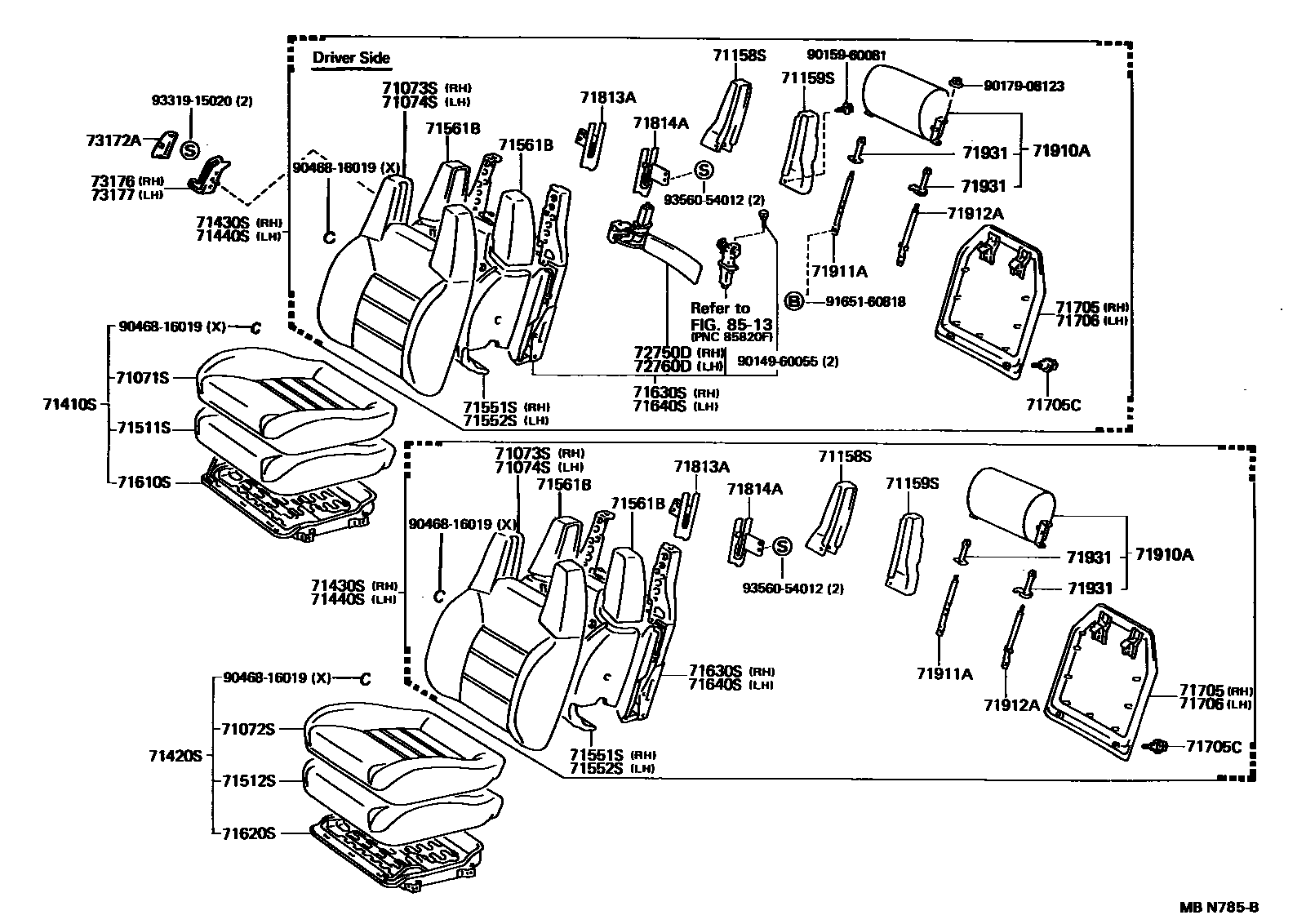

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1D162-02i198808-198908
MAROON,TRIM3#
main71071-1D162-03i198901-198908
MEDIUM GRAY,TRIM1#
main71071-1D162-04i198808-198908
DEEP BLUE,TRIM8#
main71071-1D162-06i198901-198908
BROWN,TRIM4#
main71071-1D163-02i198908-199008
MAROON,TRIM3#
main71071-1D163-03i198908-199008
MEDIUM GRAY,TRIM1#
main71071-1D163-04i198908-199008
DEEP BLUE,TRIM8#
main71071-1D163-06i198908-199008
TAN,TRIM4#
main71071-1D182-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-1D182-04i198808-198908
DEEP BLUE,TRIM8#
main71071-1D182-06i198808-198908
BROWN,TRIM4#
main71071-1D183-03i198908-199008
MEDIUM GRAY,TRIM1#
main71071-1D183-04i198908-199008
DEEP BLUE,TRIM8#
main71071-1D183-06i198908-199008
TAN,TRIM4#
main71071-1D184-02i199008-199305
DEEP RED,TRIM3#
main71071-1D184-03i199008-199108
LIGHT GRAY,TRIM1#
main71071-1D184-04i199008-199305
DEEP BLUE,TRIM8#
main71071-1D184-06i199008-199108
TAN,TRIM4#
main71071-1D184-B0i199108-199305
SHADOW GRAY,TRIM1#
main71071-1D211-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71071-1D211-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71071-1D211-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D211-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71071-1D211-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71071-1D212-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71071-1D212-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D212-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D212-06i199008-199108
W(LEATHER SEAT),TAN,TRIM4#
main71071-1D212-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71071-1D232-02i198808-198908
MAROON,TRIM3#
main71071-1D232-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-1D232-04i198808-198908
DEEP BLUE,TRIM8#
main71071-1D232-06i198808-198908
BROWN,TRIM4#
main71071-1D233-02i198908-199008
MAROON,TRIM3#
main71071-1D233-03i198908-199008
MEDIUM GRAY,TRIM1#
main71071-1D233-04i198908-199008
DEEP BLUE,TRIM8#
main71071-1D233-06i198908-199008
TAN,TRIM4#
main71071-1D241-02i198908-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71071-1D241-03i198908-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71071-1D241-04i198808-198908
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D241-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71071-1D241-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71071-1D242-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71071-1D242-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D242-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D242-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71071-1D292-03i198808-198908
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-1D292-04i198808-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71071-1D292-06i198808-198908
W(SEAT HEATER),BROWN,TRIM4#
main71071-1D293-03i198908-199008
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-1D293-04i198908-199008
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71071-1D293-06i198908-199008
W(SEAT HEATER),TAN,TRIM4#
main71071-1D294-03i199008-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-1D294-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71071-1D294-06i199008-199108
W(SEAT HEATER),TAN,TRIM4#
main71071-1D294-B0i199108-199305
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71071-1D320-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-1D320-04i198808-198908
DEEP BLUE,TRIM8#
main71071-1D320-06i198808-198908
BROWN,TRIM4#
main71071-1D321-03i198908-199008
MEDIUM GRAY,TRIM1#
main71071-1D321-04i198908-199008
DEEP BLUE,TRIM8#
main71071-1D321-06i198908-199008
TAN,TRIM4#
main71071-1D322-02i199008-199305
DEEP RED,TRIM3#
main71071-1D322-03i199008-199108
LIGHT GRAY,TRIM1#
main71071-1D322-04i199008-199305
DEEP BLUE,TRIM8#
main71071-1D322-B0i199108-199305
SHADOW GRAY,TRIM1#
main71071-1D400-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D400-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D400-06i199008-199108
W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71071-1D400-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71071-1D410-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71071-1D410-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71071-1D410-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-1D181-02i198808-198908
MAROON,TRIM3#
main71072-1D181-03i198901-198908
MEDIUM GRAY,TRIM1#
main71072-1D181-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D181-06i198808-198901
BROWN,TRIM4#
main71072-1D182-02i198908-199008
MAROON,TRIM3#
main71072-1D182-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D182-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D182-06i198908-199008
TAN,TRIM4#
main71072-1D192-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-1D192-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D192-06i198808-198908
BROWN,TRIM4#
main71072-1D193-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D193-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D193-06i198908-199008
TAN,TRIM4#
main71072-1D194-02i199008-199305
DEEP RED,TRIM3#
main71072-1D194-03i199008-199108
LIGHT GRAY,TRIM1#
main71072-1D194-04i199008-199305
DEEP BLUE,TRIM8#
main71072-1D194-06i199008-199108
TAN,TRIM4#
main71072-1D194-B0i199108-199305
SHADOW GRAY,TRIM1#
main71072-1D242-02i198808-198908
MAROON,TRIM3#
main71072-1D242-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-1D242-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D242-06i198808-198908
BROWN,TRIM4#
main71072-1D243-02i198908-199008
MAROON,TRIM3#
main71072-1D243-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D243-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D243-06i198908-199008
TAN,TRIM4#
main71072-1D281-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71072-1D281-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71072-1D281-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D281-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71072-1D281-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71072-1D282-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71072-1D282-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D282-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D282-06i199008-199108
W(LEATHER SEAT),TAN,TRIM4#
main71072-1D282-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71072-1D291-02i198908-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71072-1D291-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71072-1D291-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D291-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71072-1D291-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71072-1D292-02i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71072-1D292-03i199008-199108
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D292-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D292-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71072-1D342-03i198808-198908
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-1D342-04i198808-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71072-1D342-06i198808-198908
W(SEAT HEATER),BROWN,TRIM4#
main71072-1D343-03i198908-199008
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-1D343-04i198908-199008
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71072-1D343-06i198908-199008
W(SEAT HEATER),MAROON,TRIM4#
main71072-1D344-03i199008-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-1D344-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71072-1D344-06i199008-199108
W(SEAT HEATER),TAN,TRIM4#
main71072-1D344-B0i199108-199305
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71072-1D380-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-1D380-04i198808-198908
DEEP BLUE,TRIM8#
main71072-1D380-06i198808-198908
BROWN,TRIM4#
main71072-1D381-03i198908-199008
MEDIUM GRAY,TRIM1#
main71072-1D381-04i198908-199008
DEEP BLUE,TRIM8#
main71072-1D381-06i198908-199008
TAN,TRIM4#
main71072-1D382-02i199008-199305
DEEP RED,TRIM3#
main71072-1D382-03i199008-199108
LIGHT GRAY,TRIM1#
main71072-1D382-04i199008-199305
DEEP BLUE,TRIM8#
main71072-1D382-B0i199108-199305
SHADOW GRAY,TRIM1#
main71072-1D480-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D480-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D480-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71072-1D490-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71072-1D490-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71072-1D490-06i199008-199108
W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71072-1D490-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1B592-03i198808-198908
MEDIUM GRAY,TRIM1#
main71073-1B592-04i198808-198908
DEEP BLUE,TRIM8#
main71073-1B592-06i198808-198908
BROWN,TRIM4#
main71073-1B593-03i198908-199008
MEDIUM GRAY,TRIM1#
main71073-1B593-04i198908-199008
DEEP BLUE,TRIM8#
main71073-1B593-06i198908-199008
TAN,TRIM4#
main71073-1B594-03i199008-199108
LIGHT GRAY,TRIM1#
main71073-1B594-04i199008-199305
DEEP BLUE,TRIM8#
main71073-1B594-B0i199108-199305
SHADOW GRAY,TRIM1#
main71073-1B602-03i198808-198908
MEDIUM GRAY,TRIM1#
main71073-1B602-04i198808-198908
DEEP BLUE,TRIM8#
main71073-1B602-06i198808-198908
BROWN,TRIM4#
main71073-1B603-03i198908-199008
MEDIUM GRAY,TRIM1#
main71073-1B603-04i198908-199008
DEEP BLUE,TRIM8#
main71073-1B603-06i198908-199008
TAN,TRIM4#
main71073-1B604-02i199008-199305
DEEP RED,TRIM3#
main71073-1B604-03i199008-199108
LIGHT GRAY,TRIM1#
main71073-1B604-04i199008-199305
DEEP BLUE,TRIM8#
main71073-1B604-06i199008-199108
TAN,TRIM4#
main71073-1B604-B0i199108-199305
SHADOW GRAY,TRIM1#
main71073-1B611-02i198808-198908
W(LEATHER SEAT) & NEW ZEALAND SPEC,MAROON,TRIM3#
main71073-1B611-03i198808-199008
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71073-1B611-04i199008-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B611-06i198808-198908
W(LEATHER SEAT) & NEW ZEALAND SPEC,BRWON,TRIM4#; W(LEATHER SEAT),BRWON,TRIM4#
main71073-1B611-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71073-1B611-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71073-1B651-02i198808-198908
MAROON,TRIM3#
main71073-1B651-03i198901-198908
MEDIUM GRAY,TRIM1#
main71073-1B651-04i198808-198908
DEEP BLUE,TRIM8#
main71073-1B651-06i198901-198908
BROWN,TRIM4#
main71073-1B652-02i198908-199008
MAROON,TRIM3#
main71073-1B652-03i198908-199008
MEDIUM GRAY,TRIM1#
main71073-1B652-04i198908-199008
DEEP BLUE,TRIM8#
main71073-1B652-06i198908-199008
TAN,TRIM4#
main71073-1B661-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71073-1B661-03i198808-199108
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71073-1B661-04i198808-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B661-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71073-1B661-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71073-1B661-16i199008-199108
W(LEATHER SEAT),BROWN,TRIM4#
main71073-1B661-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71073-1B722-03i198808-198908
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-1B722-04i198808-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71073-1B722-06i198808-198908
W(SEAT HEATER),BROWN,TRIM4#
main71073-1B723-03i198908-199008
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-1B723-04i198908-199008
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71073-1B723-06i198908-199008
W(SEAT HEATER),TAN,TRIM4#
main71073-1B724-03i199008-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-1B724-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71073-1B724-06i199008-199108
W(SEAT HEATER),TAN,TRIM4#
main71073-1B724-B0i199108-199305
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71073-1B830-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71073-1B830-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B830-06i199008-199108
W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71073-1B830-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71073-1B840-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71073-1B840-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71073-1B840-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1B592-03i198808-198908
MEDIUM GRAY,TRIM1#
main71073-1B592-04i198808-198908
DEEP BLUE,TRIM8#
main71073-1B592-06i198808-198908
BROWN,TRIM4#
main71073-1B593-03i198908-199008
MEDIUM GRAY,TRIM1#
main71073-1B593-04i198908-199008
DEEP BLUE,TRIM8#
main71073-1B593-06i198908-199008
TAN,TRIM4#
main71073-1B594-03i199008-199108
LIGHT GRAY,TRIM1#
main71073-1B594-04i199008-199305
DEEP BLUE,TRIM8#
main71073-1B594-B0i199108-199305
SHADOW GRAY,TRIM1#
main71074-14701-02i198808-198908
NEW ZEALAND SPEC & W(SEAT HEATER),MAROON,TRIM3#
main71074-14701-03i199008-199108
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71074-14701-04i198808-199008
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-14701-06i198808-198908
NEW ZEALAND SPEC & W(SEAT HEATER),BRWON,TRIM4#; W(LEATHER SEAT),BRWON,TRIM4#
main71074-14701-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71074-14701-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71074-14731-02i198808-198908
MAROON,TRIM3#
main71074-14731-03i198808-198901
MEDIUM GRAY,TRIM1#
main71074-14731-04i198808-198908
DEEP BLUE,TRIM8#
main71074-14731-06i198808-198901
BROWN,TRIM4#
main71074-14732-02i198908-199008
MAROON,TRIM3#
main71074-14732-03i198908-199008
MEDIUM GRAY,TRIM1#
main71074-14732-04i198908-199008
DEEP BLUE,TRIM8#
main71074-14732-06i198908-199008
TAN,TRIM4#
main71074-14741-02i198808-199008
W(LEATHER SEAT),MAROON,TRIM3#
main71074-14741-03i198808-199108
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71074-14741-04i198808-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-14741-06i198808-198908
W(LEATHER SEAT),BRWON,TRIM4#
main71074-14741-12i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71074-14741-16i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71074-14741-C0i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71074-14782-03i198808-198908
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-14782-04i198808-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71074-14782-06i198808-198908
W(SEAT HEATER),BROWN,TRIM4#
main71074-14783-03i198908-199008
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-14783-04i198908-199008
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71074-14783-06i198908-199008
W(SEAT HEATER),TAN,TRIM4#
main71074-14784-03i199008-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-14784-04i199008-199305
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71074-14784-06i199008-199108
W(SEAT HEATER),TAN,TRIM4#
main71074-14784-B0i199108-199305
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71074-14811-03i198808-198908
MEDIUM GRAY,TRIM1#
main71074-14811-04i198808-198908
DEEP BLUE,TRIM8#
main71074-14811-06i198808-198908
BROWN,TRIM4#
main71074-14812-03i198908-199008
MEDIUM GRAY,TRIM1#
main71074-14812-04i198908-199008
DEEP BLUE,TRIM8#
main71074-14812-06i198908-199008
TAN,TRIM4#
main71074-14813-02i199008-199305
DEEP RED,TRIM3#
main71074-14813-03i199008-199108
LIGHT GRAY,TRIM1#
main71074-14813-04i199008-199305
DEEP BLUE,TRIM8#
main71074-14813-06i199008-199108
TAN,TRIM4#
main71074-14813-B0i199108-199305
SHADOW GRAY,TRIM1#
main71074-1B010-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71074-1B010-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-1B010-06i199008-199108
W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71074-1B010-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71074-1B020-03i199008-199108
W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71074-1B020-04i199008-199305
W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71074-1B020-C0i199108-199305
W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71158SFRAME, FRONT SEATBACK, UPPER RH
main71158-14060×2i198808-199305
main71158-14070i198808-199008
RH
71159SFRAME, FRONT SEATBACK, UPPER LH
main71159-14050i198808-199008
RH
main71159-14060i198808-199008
LH
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1B662-02i199008-199305
***,W(LEATHER SEAT),MAROON,TRIM3#
main71410-1B662-03i199008-199108
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1B662-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1B662-06i199008-199108
***,W(LEATHER SEAT),TAN,TRIM4#
main71410-1B662-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71410-1B792-02i198808-198908
***,MAROON,TRIM3#
main71410-1B792-03i198901-198908
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
main71410-1B792-04i198808-198908
***,DEEP BLUE,TRIM8#
main71410-1B792-06i198901-198908
***,BROWN; ***,BROWN,TRIM4#
main71410-1B793-02i198908-199008
***,MAROON,TRIM3#
main71410-1B793-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71410-1B793-04i198908-199008
***,DEEP BLUE,TRIM8#
main71410-1B793-06i198908-199008
***,TAN,TRIM4#
main71410-1D124-02i199008-199305
***,DEEP RED,TRIM3#
main71410-1D124-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71410-1D124-04i199008-199305
***,DEEP BLUE,TRIM8#
main71410-1D124-06i199008-199108
***,TAN,TRIM4#
main71410-1D124-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71410-1D262-02i198808-198908
***,MAROON,TRIM3#
main71410-1D262-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71410-1D262-04i198808-198908
***,DEEP BLUE,TRIM8#
main71410-1D262-06i198808-198908
***,BROWN,TRIM4#
main71410-1D263-02i198908-199008
***,MAROON,TRIM3#
main71410-1D263-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71410-1D263-04i198908-199008
***,DEEP BLUE,TRIM8#
main71410-1D263-06i198908-199008
***,TAN,TRIM4#
main71410-1D291-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71410-1D291-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1D291-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D291-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71410-1D291-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71410-1D301-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71410-1D301-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1D301-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D301-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71410-1D301-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71410-1D352-03i198808-198908
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-1D352-04i198808-198908
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71410-1D352-06i198808-198908
***,W(SEAT HEATER),BROWN,TRIM4#
main71410-1D353-03i198908-199008
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-1D353-04i198908-199008
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71410-1D353-06i198908-199008
***,W(SEAT HEATER),TAN,TRIM4#
main71410-1D354-03i199008-199108
***,W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-1D354-04i199008-199305
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71410-1D354-06i199008-199108
***,W(SEAT HEATER),TAN,TRIM4#
main71410-1D354-B0i199108-199305
***,W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71410-1D380-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71410-1D380-04i198808-198908
***,DEEP BLUE,TRIM8#
main71410-1D380-06i198808-198908
***,BROWN,TRIM4#
main71410-1D381-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71410-1D381-04i198908-199008
***,DEEP BLUE,TRIM8#
main71410-1D381-06i198908-199008
***,TAN,TRIM4#
main71410-1D382-02i199008-199305
***,DEEP RED,TRIM3#
main71410-1D382-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71410-1D382-04i199008-199305
***,DEEP BLUE,TRIM8#
main71410-1D382-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71410-1D400-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71410-1D400-04i198808-198908
***,DEEP BLUE,TRIM8#
main71410-1D400-06i198808-198908
***,BROWN,TRIM4#
main71410-1D401-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71410-1D401-04i198908-199008
***,DEEP BLUE,TRIM8#
main71410-1D401-06i198908-199008
***,TAN,TRIM4#
main71410-1D410-02i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MAROON,TRIM3#
main71410-1D410-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1D410-04i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),DEEP BLUE,TRIM8#
main71410-1D410-06i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),BRWON,TRIM4#; ***,W(LEATHER SEAT),BRWON,TRIM4#
main71410-1D410-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71410-1D411-02i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71410-1D411-03i199008-199108
***,W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71410-1D411-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D411-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71410-1D420-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1D420-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D420-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71410-1D420-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71410-1D490-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71410-1D490-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D490-06i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71410-1D490-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71410-1D500-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71410-1D500-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71410-1D500-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-1D271-02i198808-198908
***,MAROON,TRIM3#
main71420-1D271-03i198901-198908
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
main71420-1D271-04i198808-198908
***,DEEP BLUE,TRIM8#
main71420-1D271-06i198901-198908
***,BROWN; ***,BROWN,TRIM4#
main71420-1D272-02i198908-199008
***,MAROON,TRIM3#
main71420-1D272-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71420-1D272-04i198908-199008
***,DEEP BLUE,TRIM8#
main71420-1D272-06i198908-199008
***,TAN,TRIM4#
main71420-1D284-02i199008-199305
***,DEEP RED,TRIM3#
main71420-1D284-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71420-1D284-04i199008-199305
***,DEEP BLUE,TRIM8#
main71420-1D284-06i199008-199108
***,TAN,TRIM4#
main71420-1D284-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71420-1D302-02i198808-198908
***,MAROON,TRIM3#
main71420-1D302-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71420-1D302-04i198808-198908
***,DEEP BLUE,TRIM8#
main71420-1D302-06i198808-198908
***,BROWN,TRIM4#
main71420-1D303-02i198908-199008
***,MAROON,TRIM3#
main71420-1D303-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71420-1D303-04i198908-199008
***,DEEP BLUE,TRIM8#
main71420-1D303-06i198908-199008
***,TAN,TRIM4#
main71420-1D321-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71420-1D321-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71420-1D321-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D321-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71420-1D321-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71420-1D331-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71420-1D331-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71420-1D331-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D331-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71420-1D331-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71420-1D392-03i198808-198908
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-1D392-04i198808-198908
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71420-1D392-06i198808-198908
***,W(SEAT HEATER),BROWN,TRIM4#
main71420-1D393-03i198908-199008
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-1D393-04i198908-199008
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71420-1D393-06i198908-199008
***,W(SEAT HEATER),TAN,TRIM4#
main71420-1D394-03i199008-199108
***,W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-1D394-04i199008-199305
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71420-1D394-06i199008-199108
***,W(SEAT HEATER),TAN,TRIM4#
main71420-1D394-B0i199108-199305
***,W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71420-1D411-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71420-1D411-04i198808-198908
***,DEEP BLUE,TRIM8#
main71420-1D411-06i198808-198908
***,BROWN,TRIM4#
main71420-1D412-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71420-1D412-04i198908-199008
***,DEEP BLUE,TRIM8#
main71420-1D412-06i198908-199008
***,TAN,TRIM4#
main71420-1D413-02i199008-199305
***,DEEP RED,TRIM3#
main71420-1D413-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71420-1D413-04i199008-199305
***,DEEP BLUE,TRIM8#
main71420-1D413-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71420-1D440-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71420-1D440-04i198808-198908
***,DEEP BLUE,TRIM8#
main71420-1D440-06i198808-198908
***,BROWN,TRIM4#
main71420-1D441-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71420-1D441-04i198908-199008
***,DEEP BLUE,TRIM8#
main71420-1D441-06i198908-199008
***,TAN,TRIM4#
main71420-1D450-02i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MAROON,TRIM3#
main71420-1D450-03i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-1D450-04i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),DEEP BLUE,TRIM8#
main71420-1D450-06i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),BRWON,TRIM4#; ***,W(LEATHER SEAT),BRWON,TRIM4#
main71420-1D450-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71420-1D451-02i199008-199305
***,W(LEATHER SEAT),TAN,TRIM3#
main71420-1D451-03i199008-199108
***,W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71420-1D451-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D451-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71420-1D460-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71420-1D460-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D460-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71420-1D460-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71420-1D461-02i199008-199305
***,W(LEATHER SEAT),TAN,TRIM3#
main71420-1D461-03i199008-199108
***,W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71420-1D461-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D461-06i199008-199108
***,W(LEATHER SEAT),TAN,TRIM4#
main71420-1D461-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71420-1D550-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71420-1D550-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D550-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71420-1D560-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71420-1D560-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71420-1D560-06i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71420-1D560-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1B882-02i199008-199305
***,DEEP RED,TRIM3#
main71430-1B882-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71430-1B882-04i199008-199305
***,DEEP BLUE,TRIM8#
main71430-1B882-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71430-1B892-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71430-1B892-04i198808-198908
***,DEEP BLUE,TRIM8#
main71430-1B892-06i198808-198908
***,BROWN,TRIM4#
main71430-1B893-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71430-1B893-04i198908-199008
***,DEEP BLUE,TRIM8#
main71430-1B893-06i198908-199008
***,TAN,TRIM4#
main71430-1B894-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71430-1B894-04i199008-199305
***,DEEP BLUE,TRIM8#
main71430-1B894-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71430-1D012-02i198808-198908
***,MAROON,TRIM3#
main71430-1D012-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71430-1D012-04i198808-198908
***,DEEP BLUE,TRIM8#
main71430-1D013-02i198908-199008
***,MAROON,TRIM3#
main71430-1D013-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71430-1D013-04i198908-199008
***,DEEP BLUE,TRIM8#
main71430-1D013-06i198908-199008
***,TAN,TRIM4#
main71430-1D021-02i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MAROON,TRIM3#
main71430-1D021-03i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-1D021-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D021-06i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),BRWON,TRIM4#; ***,W(LEATHER SEAT),BRWON,TRIM4#
main71430-1D021-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71430-1D021-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71430-1D072-02i198808-198908
***,MAROON,TRIM3#
main71430-1D072-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71430-1D072-04i198808-198908
***,DEEP BLUE,TRIM8#
main71430-1D072-06i198808-198908
***,BROWN,TRIM4#
main71430-1D073-02i198908-199008
***,MAROON,TRIM3#
main71430-1D073-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71430-1D073-04i198908-199008
***,DEEP BLUE,TRIM8#
main71430-1D073-06i198908-199008
***,TAN,TRIM4#
main71430-1D081-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71430-1D081-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71430-1D081-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D081-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71430-1D081-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71430-1D091-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71430-1D091-03i198808-199108
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71430-1D091-04i198808-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D091-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71430-1D091-12i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71430-1D091-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71430-1D091-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71430-1D102-02i198808-198908
***,MAROON,TRIM3#
main71430-1D102-03i198901-198908
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
main71430-1D102-04i198808-198908
***,DEEP BLUE,TRIM8#
main71430-1D102-06i198901-198908
***,BROWN; ***,BROWN,TRIM4#
main71430-1D103-02i198908-199008
***,MAROON,TRIM3#
main71430-1D103-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71430-1D103-04i198908-199008
***,DEEP BLUE,TRIM8#
main71430-1D103-06i198908-199008
***,TAN,TRIM4#
main71430-1D182-03i198808-198908
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-1D182-04i198808-198908
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71430-1D182-06i198808-198908
***,W(SEAT HEATER),BROWN,TRIM4#
main71430-1D183-03i198908-199008
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-1D183-04i198908-199008
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71430-1D183-06i198908-199008
***,W(SEAT HEATER),TAN,TRIM4#
main71430-1D184-03i199008-199108
***,W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-1D184-04i199008-199305
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71430-1D184-06i199008-199108
***,W(SEAT HEATER),TAN,TRIM4#
main71430-1D184-B0i199108-199305
***,W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71430-1D201-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71430-1D201-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71430-1D201-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D201-06i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71430-1D230-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71430-1D230-04i198808-198908
***,DEEP BLUE,TRIM8#
main71430-1D230-06i198808-198908
***,BROWN,TRIM4#
main71430-1D231-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71430-1D231-04i198908-199008
***,DEEP BLUE,TRIM8#
main71430-1D231-06i198908-199008
***,TAN,TRIM4#
main71430-1D232-02i199008-199305
***,DEEP RED,TRIM3#
main71430-1D232-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71430-1D232-04i199008-199305
***,DEEP BLUE,TRIM8#
main71430-1D232-06i199008-199108
***,TAN,TRIM4#
main71430-1D232-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71430-1D240-02i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71430-1D240-03i199008-199108
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71430-1D240-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D240-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71430-1D240-16i198908-199108
***,W(LEATHER SEAT),TAN,TRIM4#
main71430-1D240-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71430-1D350-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71430-1D350-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D350-C1i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71430-1D360-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71430-1D360-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71430-1D360-06i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71430-1D360-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1D012-02i199008-199305
***,DEEP RED,TRIM3#
main71440-1D012-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71440-1D012-04i199008-199305
***,DEEP BLUE,TRIM8#
main71440-1D012-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71440-1D052-02i198808-198908
***,MAROON,TRIM3#
main71440-1D052-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71440-1D052-04i198808-198908
***,DEEP BLUE,TRIM8#
main71440-1D052-06i198808-198908
***,BROWN,TRIM4#
main71440-1D053-02i198908-199008
***,MAROON,TRIM3#
main71440-1D053-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71440-1D053-04i198908-199008
***,DEEP BLUE,TRIM8#
main71440-1D053-06i198908-199008
***,TAN,TRIM4#
main71440-1D061-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71440-1D061-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71440-1D061-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D061-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71440-1D061-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71440-1D071-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71440-1D071-03i198808-199108
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71440-1D071-04i198808-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D071-06i198808-198908
***,W(LEATHER SEAT),BROWN,TRIM4#
main71440-1D071-12i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71440-1D071-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71440-1D071-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71440-1D082-02i198808-198908
***,MAROON,TRIM3#
main71440-1D082-03i198901-198908
***,MEDIUM GRAY; ***,MEDIUM GRAY,TRIM1#
main71440-1D082-04i198808-198908
***,DEEP BLUE,TRIM8#
main71440-1D082-06i198808-198901
***,BROWN,TRIM4#
main71440-1D083-02i198908-199008
***,MAROON,TRIM3#
main71440-1D083-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71440-1D083-04i198908-199008
***,DEEP BLUE,TRIM8#
main71440-1D083-06i198908-199008
***,TAN,TRIM4#
main71440-1D162-03i198808-198908
***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-1D162-04i198808-198908
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71440-1D162-06i198808-198908
***,W(SEAT HEATER),BROWN,TRIM4#
main71440-1D163-03i198908-199008
***,W(SEAT HEATER),MEDIUM GARY,TRIM1#
main71440-1D163-04i198908-199008
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71440-1D163-06i198908-199008
***,W(SEAT HEATER),TAN,TRIM4#
main71440-1D164-03i199008-199108
***,W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-1D164-04i199008-199305
***,W(SEAT HEATER),DEEP BLUE,TRIM8#
main71440-1D164-06i199008-199108
***,W(SEAT HEATER),TAN,TRIM4#
main71440-1D164-B0i199108-199305
***,W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71440-1D181-02i198808-199008
***,W(LEATHER SEAT),MAROON,TRIM3#
main71440-1D181-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71440-1D181-04i198808-199008
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D181-06i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71440-1D191-02i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),MAROON,TRIM3#
main71440-1D191-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71440-1D191-04i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),DEEP BLUE,TRIM8#
main71440-1D191-06i198808-198908
***,NEW ZEALAND SPEC & W(SEAT HEATER),BRWON,TRIM4#; ***,W(LEATHER SEAT),BRWON,TRIM4#
main71440-1D191-16i198908-199008
***,W(LEATHER SEAT),TAN,TRIM4#
main71440-1D191-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71440-1D211-02i198808-198908
***,MAROON,TRIM3#
main71440-1D211-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71440-1D211-04i198808-198908
***,DEEP BLUE,TRIM8#
main71440-1D212-02i198908-199008
***,MAROON,TRIM3#
main71440-1D212-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71440-1D212-04i198908-199008
***,DEEP BLUE,TRIM8#
main71440-1D212-06i198908-199008
***,TAN,TRIM4#
main71440-1D221-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71440-1D221-04i198808-198908
***,DEEP BLUE,TRIM8#
main71440-1D221-06i198808-198908
***,BROWN,TRIM4#
main71440-1D222-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71440-1D222-04i198908-199008
***,DEEP BLUE,TRIM8#
main71440-1D222-06i198908-199008
***,TAN,TRIM4#
main71440-1D223-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71440-1D223-04i199008-199305
***,DEEP BLUE,TRIM8#
main71440-1D223-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71440-1D250-03i198808-198908
***,MEDIUM GRAY,TRIM1#
main71440-1D250-04i198808-198908
***,DEEP BLUE,TRIM8#
main71440-1D250-06i198808-198908
***,BROWN,TRIM4#
main71440-1D251-03i198908-199008
***,MEDIUM GRAY,TRIM1#
main71440-1D251-04i198908-199008
***,DEEP BLUE,TRIM8#
main71440-1D251-06i198908-199008
***,TAN,TRIM4#
main71440-1D252-02i199008-199305
***,DEEP RED,TRIM3#
main71440-1D252-03i199008-199108
***,LIGHT GRAY,TRIM1#
main71440-1D252-04i199008-199305
***,DEEP BLUE,TRIM8#
main71440-1D252-06i199008-199108
***,TAN,TRIM4#
main71440-1D252-B0i199108-199305
***,SHADOW GRAY,TRIM1#
main71440-1D260-02i199008-199305
***,W(LEATHER SEAT),DEEP RED,TRIM3#
main71440-1D260-03i198808-199008
***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71440-1D260-04i199008-199305
***,W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D260-06i198808-198908
***,W(LEATHER SEAT),BRWON,TRIM4#
main71440-1D260-16i198908-199108
***,W(LEATHER SEAT),TAN,TRIM4#
main71440-1D260-C0i199108-199305
***,W(LEATHER SEAT),BLACK,TRIM1#
main71440-1D370-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71440-1D370-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D370-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
main71440-1D380-03i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),LIGHT GRAY,TRIM1#
main71440-1D380-04i199008-199305
***,W(SEAT HEATER & LEATHER SEAT),DEEP BLUE,TRIM8#
main71440-1D380-06i199008-199108
***,W(SEAT HEATER & LEATHER SEAT),TAN,TRIM4#
main71440-1D380-C0i199108-199305
***,W(SEAT HEATER & LEATHER SEAT),BLACK,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-14211i198808-199008
main71511-14212i199008-199305
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-14021i198808-199008
main71512-14022i199008-199305
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-14210i198808-199305
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-14210i199008-199305
71561BPAD, FRONT SEATBACK, UPPER
main71561-14190×2i198808-199305
DRIVER SEAT,RH
main71561-14210i198808-199305
PASSENGER SEAT,RH
main71562-14060×2i198808-199305
PASSENGER SEAT,LH
main71562-14070i198808-199008
DRIVER SEAT,LH
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-14200i198808-199305
main71610-14250i198808-199305
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-14200i198808-199305
main71620-14250i198808-199305
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-14220i198808-198908
NEW ZEALAND SPEC & W(SEAT HEATER)
main71630-14230i198808-199305
main71630-14240i198808-199305
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-14210i198808-198908
NEW ZEALAND SPEC & W(SEAT HEATER)
main71640-14200i198808-199305
main71640-14210i198808-199305
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-24090-02i198808-199008
MAROON,TRIM3#
main71705-24090-03i198908-199108
LIGHT GRAY,TRIM1#
main71705-24090-06i198901-198908
LIGHT BROWN,TRIM4#
main71705-24090-12i199008-199305
DEEP RED,TRIM3#
main71705-24090-14i198808-199305
DEEP BLUE,TRIM8#
main71705-24090-16i199008-199108
BROWN,TRIM4#
main71705-24090-B0i199108-199305
SHADOW GRAY,TRIM1#
71705CSCREW(FOR FRONT SEATBACK BOARD)
main90149-50043-03×4i199108-199305
SHADOW GRAY,TRIM1#
main90149-50043-04×4i198808-199008
DEEP BLUE,TRIM8#
main90149-50043-12×4i198808-199008
MAROON,TRIM3#
main90149-50043-13×4i198808-198901
LIGHT GRAY,TRIM1#
main90149-50043-22×4i199008-199305
DEEP RED,TRIM3#
main90149-50043-36×4i198908-199008
LIGHT BROWN,TRIM4#
main90149-50043-46×4i199008-199108
TAN,TRIM4#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-24090-02i198808-199008
MAROON,TRIM3#
main71705-24090-03i198901-198908
LIGHT GRAY,TRIM1#
main71705-24090-06i198808-198901
LIGHT BROWN,TRIM4#
main71705-24090-12i199008-199305
DEEP RED,TRIM3#
main71705-24090-14i198808-199305
DEEP BLUE,TRIM8#
main71705-24090-16i198908-199008
BROWN,TRIM4#
main71705-24090-B0i199108-199305
SHADOW GRAY,TRIM1#
71813ASHIELD, FRONT SEATBACK, RH
main71813-12020-03×2i199209-199305
GRAY,TRIM1#
main71813-12020-13×2i198901-198908
LIGHT GRAY,TRIM1#
main71813-12020-14×2i198808-199008
DEEP BLUE,TRIM8#
main71813-12020-16×2i198908-199008
LIGHT BROWN,TRIM4#
main71813-12020-22×2i198808-199008
MAROON,TRIM3#
main71813-12020-26×2i199008-199108
TAN,TRIM4#
main71813-12020-32×2i199008-199305
DEEP RED,TRIM3#
71814ASHIELD, FRONT SEATBACK, LH
main71814-12010-03×2i199209-199305
GRAY,TRIM1#
main71814-12010-13×2i198908-199008
LIGHT GRAY,TRIM1#
main71814-12010-14×2i198808-199008
DEEP BLUE,TRIM8#
main71814-12010-16×2i198901-198908
LIGHT BROWN,TRIM4#
main71814-12010-22×2i198808-199008
MAROON,TRIM3#
main71814-12010-26×2i199008-199108
TAN,TRIM4#
main71814-12010-32×2i199008-199305
DEEP RED,TRIM3#
71910AHEADREST ASSY, FRONT SEAT
main71910-14680-12×2i198808-199008
MAROON,TRIM3#
main71910-14680-13×2i198808-198901
LIGHT GRAY,TRIM1#
main71910-14680-16×2i198901-198908
LIGHT BROWN,TRIM4#
main71910-14680-24×2i198808-199008
DEEP BLUE,TRIM8#
main71910-14680-26×2i198908-199008
TAN,TRIM4#
main71910-14691-02×2i198808-198908
W(LEATHER SEAT),MAROON,TRIM3#
main71910-14691-03×2i198808-198908
W(LEATHER SEAT),LIGHT GRAY,TRIM1#
main71910-14691-04×2i198908-199305
W(LEATHER SEAT),DEEP BLUE,TRIM8#
main71910-14691-06×2i198808-198908
W(LEATHER SEAT),LIGHT BROWN,TRIM4#
main71910-14691-12×2i199008-199305
W(LEATHER SEAT),DEEP RED,TRIM3#
main71910-14691-16×2i198908-199008
W(LEATHER SEAT),TAN,TRIM4#
main71910-14691-C0×2i199108-199305
W(LEATHER SEAT),BLACK,TRIM1#
main71910-14730-02×2i199008-199305
DEEP RED,TRIM3#
main71910-14730-03×2i199008-199108
LIGHT GRAY,TRIM1#
main71910-14730-04×2i199008-199305
DEEP BLUE,TRIM8#
main71910-14730-06×2i199008-199108
TAN,TRIM4#
main71910-14730-B1×2i199108-199305
SHADOW GRAY,TRIM1#
71911ASTAY, FRONT SEAT HEADREST, RH
main71911-14050×2i198808-199305
OK; W(LEATHER SEAT)
71912ASTAY, FRONT SEAT HEADREST, LH
main71912-14070×2i198808-199305
OK; W(LETHER SEAT)
71931SUPPORT, FRONT SEAT HEADREST
main71930-14080-01×2i199108-199305
W(LOCK),BLACK,TRIM1#
main71930-14080-14×2i198808-199008
W(LOCK),DEEP BLUE,TRIM8#
main71930-14080-23×2i198808-198901
W(LOCK),LIGHT GRAY,TRIM1#
main71930-14080-42×2i198808-199008
W(LOCK),MAROON,TRIM3#
main71930-14080-46×2i198908-199008
W(LOCK),LIGHT BROWN,TRIM4#
main71930-14080-52×2i199008-199305
W(LOCK),DEEP RED,TRIM3#
main71930-14080-56×2i199008-199108
W(LOCK),TAN,TRIM4#
main71931-14010-01×2i199108-199305
W/O(LOCK),BLACK,TRIM1#
main71931-14010-14×2i199008-199305
W/O(LOCK),DEEP BLUE,TRIM8#
main71931-14010-23×2i198901-198908
W/O(LOCK),LIGHT GRAY,TRIM1#
main71931-14010-42×2i198808-199008
W/O(LOCK),MAROON,TRIM3#
main71931-14010-46×2i198908-199008
W/O(LOCK),LIGHT BROWN,TRIM4#
main71931-14010-52×2i199008-199305
W/O(LOCK),DEEP RED,TRIM3#
main71931-14010-56×2i199008-199108
W/O(LOCK),TAN,TRIM4#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20070i198808-199305
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-20070i198808-199305
73172ACAP, FRONT SHOULDER BELT HANGER
main73172-14010-02i198808-199008
MAROON,TRIM3#,RH
main73172-14010-03i198808-198901
MEDIUM GRAY,TRIM1#,RH
main73172-14010-04i198808-199305
DEEP BLUE,TRIM8#,RH
main73172-14010-06i198901-198908
LIGHT BROWN,TRIM4#,RH
main73172-14010-12i199008-199305
DEEP RED,TRIM3#,RH
main73172-14010-13i199108-199305
RH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main73172-14010-23i199008-199108
SHADOW GRAY,TRIM1#,RH
main73172-14010-26i199008-199108
BROWN,TRIM4#,RH
main73173-14020-02i198808-199008
MAROON,TRIM3#,LH
main73173-14020-03i198808-198901
MEDIUM GRAY,TRIM1#,LH
main73173-14020-04i198808-199305
DEEP BLUE,TRIM8#,LH
main73173-14020-06i198808-198901
LIGHT BROWN,TRIM4#,LH
main73173-14020-12i199008-199305
DEEP RED,TRIM3#,LH
main73173-14020-13i199108-199305
LH,SHADOW GRAY,SHADOW GRAY,TRIM1#
main73173-14020-23i199008-199108
SHADOW GRAY,TRIM1#,LH
main73173-14020-26i199008-199108
BROWN,TRIM4#,LH
73176HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT)
main73176-14040-02i198808-198906
MAROON,TRIM3#
main73176-14040-03i198808-198901
MEDIUM GRAY,TRIM1#
main73176-14040-04i198808-198906
DEEP BLUE,TRIM8#
main73176-14040-06i198808-198901
LIGHT BROWN,TRIM4#
main73176-14041-02i198906-199006
MAROON,TRIM3#
main73176-14041-03i198906-199006
MEDIUM GRAY; MEDIUM GRAY,TRIM1#
main73176-14041-04i198906-199006
DEEP BLUE,TRIM8#
main73176-14041-06i198906-198908
LIGHT BROWN; LIGHT BROWN,TRIM4#
main73176-14042-02i199006-199008
MAROON,TRIM3#
main73176-14042-03i199006-199008
MEDIUM GRAY,TRIM1#
main73176-14042-04i199006-199305
DEEP BLUE,TRIM8#
main73176-14042-06i199006-199008
LIGHT BROWN,TRIM4#
main73176-14042-12i199008-199305
DEEP RED,TRIM3#
main73176-14042-13i199108-199305
SHADOW GRAY,SHADOW GRAY,TRIM1#
main73176-14042-23i199008-199108
SHADOW GRAY,TRIM1#
main73176-14042-26i199008-199108
BROWN,TRIM4#
73177HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT)
main73177-14040-02i198808-198906
MAROON,TRIM3#
main73177-14040-03i198808-198901
MEDIUM GRAY,TRIM1#
main73177-14040-04i198808-198906
DEEP BLUE,TRIM8#
main73177-14040-06i198808-198901
LIGHT BROWN,TRIM4#
main73177-14041-02i198906-199006
MAROON,TRIM3#
main73177-14041-03i198906-199006
MEDIUM GRAY; MEDIUM GRAY,TRIM1#
main73177-14041-04i198906-199006
DEEP BLUE,TRIM8#
main73177-14041-06i198906-198908
LIGHT BROWN; LIGHT BROWN,TRIM4#
main73177-14042-02i199006-199008
MAROON,TRIM3#
main73177-14042-03i199006-199008
MEDIUM GRAY,TRIM1#
main73177-14042-04i199006-199305
DEEP BLUE,TRIM8#
main73177-14042-06i199006-199008
LIGHT BROWN,TRIM4#
main73177-14042-12i199008-199305
DEEP RED,TRIM3#
main73177-14042-13i199108-199305
SHADOW GRAY,SHADOW GRAY,TRIM1#
main73177-14042-23i199008-199108
SHADOW GRAY,TRIM1#
main73177-14042-26i199008-199108
BROWN,TRIM4#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9014960055
main90149-60055
9015960081
main90159-60081
9017908123
main90179-08123
9046816019
main90468-16019
9165160818
main91651-60818
9331915020
main93319-15020
9356054012
main93560-54012

41 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
