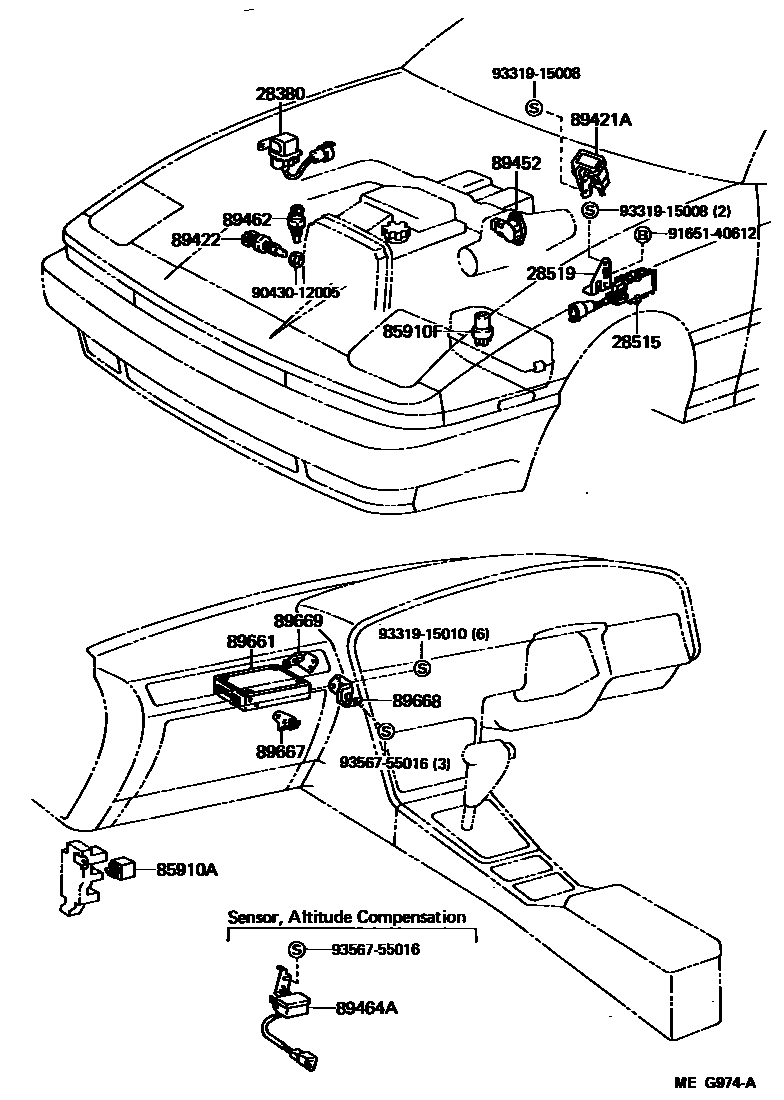

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main28380-43010i7MG#..MA70198601-198808

28515RESISTOR, SOLENOID

main28515-43040i7MG#..MA70198601-198808

28519BRACKET, SOLENOID RESISTOR

main28519-70020i7MG#..MA70198601-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iMA70198601-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iMA70198601-198808

89421ASENSOR, TURBO PRESSURE

main89420-14020iMA70..TWT198708-198808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iMA70198601-198808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iMA70198611-198808

main89452-28030iMA70198601-198611

89462SWITCH, START INJECTOR TIME

main89462-30011iMA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA)198601-198808

main89462-40010iMA70..ARL;MA70..SDZ198601-198808

89464ASENSOR, ALTITUDE COMPENSATION

main89464-14040iMA70..TWT198708-198808

89661COMPUTER, ENGINE CONTROL

main89661-14090iMA70..5F..ARL;MA70..5F..SDZ198601-198606

main89661-14091iMA70..5F..ARL;MA70..5F..SDZ198606-198608

main89661-14092iMA70..5F..ARL;MA70..5F..TWC..SDZ198608-198803

main89661-14093iMA70..5F..ARL;MA70..5F..TWC..SDZ198803-198808

main89661-14100iMA70..4FC..ARL;MA70..4FC..SDZ198601-198608

main89661-14101iMA70..4FC..ARL;MA70..4FC..TWC..SDZ198608-198803

main89661-14102iMA70..4FC..ARL;MA70..4FC..TWC..SDZ198803-198808

main89661-14110iMA70..LHD..5F..EUG;MA70..LHD..5F..(GCC,GEN);MA70..RHD..5F..(EUR,GEN,SA)198601-198808

main89661-14120iMA70..4FC..EUG;MA70..4FC..(GCC,GEN)198601-198808

main89661-14160iMA70..5F..TWT198708-198808

main89661-14170iMA70..4FC..TWT198708-198808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-14060iMA70..RHD198601-198808

main89667-14070iMA70..LHD198601-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-14010iMA70..RHD198601-198808

main89668-14020iMA70..LHD198601-198808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-14010iMA70..RHD198601-198808

main89669-14020iMA70..LHD198601-198808

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
