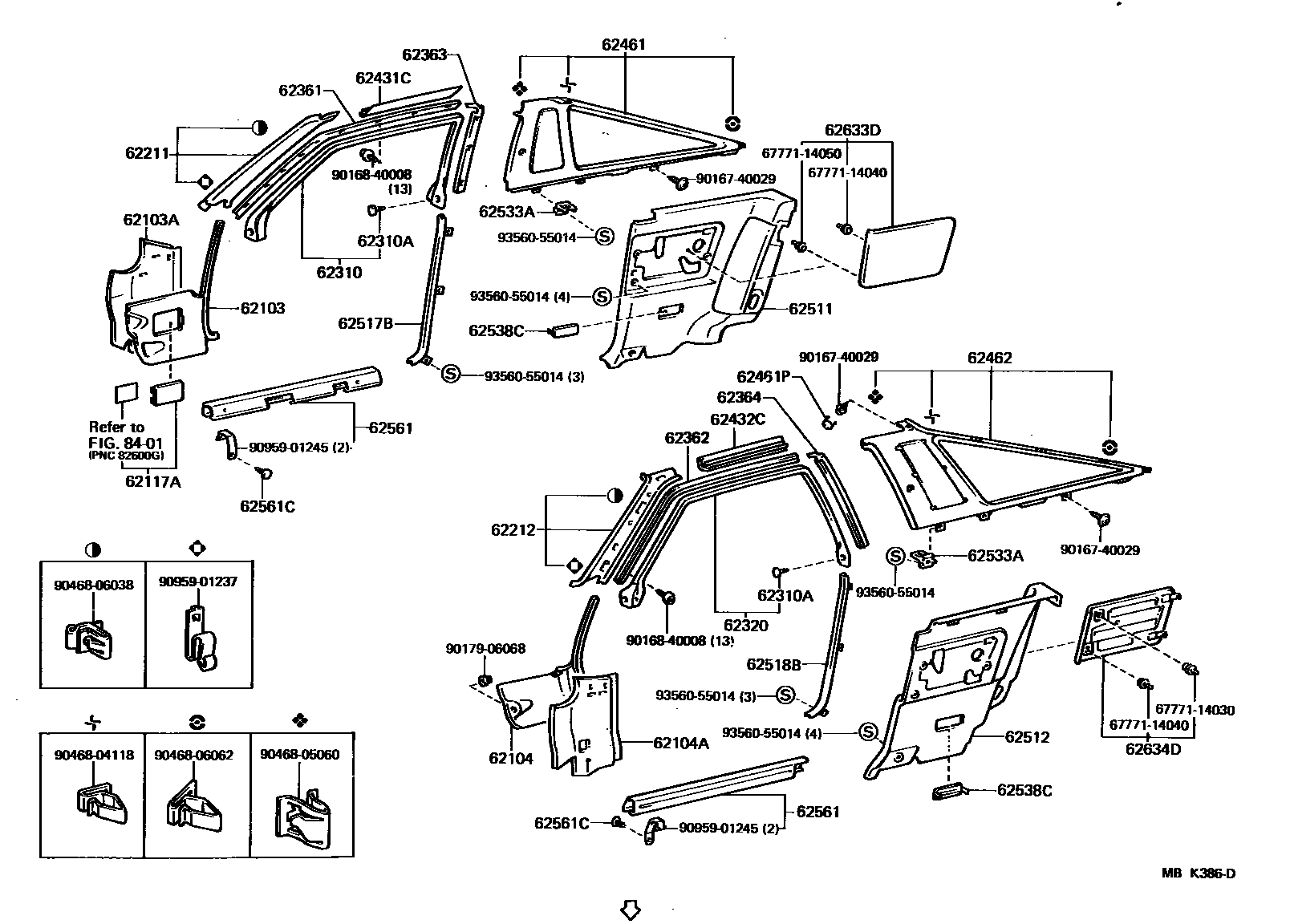

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-14160-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62101-14160

main62101-14160-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62101-14160

main62101-14160-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62101-14160

main62101-14160-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62101-14160

main62101-14170-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62101-14170

main62101-14170-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62101-14170

main62101-14170-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62101-14170

main62101-14170-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62101-14170

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14050iMA70..RHD198601-198808

main62105-14060iMA70..LHD198601-198808

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-14210-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62102-14210

main62102-14210-03iMA70..LHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62102-14210

main62102-14210-04iMA70..LHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62102-14210

main62102-14210-05iMA70..LHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62102-14210

main62102-14230-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62102-14230

main62102-14230-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62102-14230

main62102-14230-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62102-14230

main62102-14230-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62102-14230

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14050iMA70..RHD198601-198808

main62106-14060iMA70..LHD198601-198808

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14050-03iMA70..LHD..EUR198601-198701

GRAY,MEDIUM GRAY,TRIM1#

sub62117-14050

main62117-14050-04iMA70..LHD..EUR198601-198701

BLUE,DEEP BLUE,TRIM8#

sub62117-14050

main62117-14050-05iMA70..LHD..EUR198601-198701

BEIGE,DARK BEIGE,TRIM4#

sub62117-14050

main62117-14051-03iMA70..LHD..EUR198701-198808

GRAY,MED GRAY,TRIM1#

sub62117-14051

main62117-14051-04iMA70..LHD..EUR198701-198808

BLUE,DEEP BLUE,TRIM8#

sub62117-14051

main62117-14051-05iMA70..LHD..EUR198701-198808

BEIGE,DARK BEIGE,TRIM4#

sub62117-14051

main62117-14060-02iMA70..LHD..(GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62117-14060

main62117-14060-03iMA70..LHD..(GCC,GEN)198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62117-14060

main62117-14060-04iMA70..LHD..(GCC,GEN)198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62117-14060

main62117-14060-05iMA70..LHD..(GCC,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62117-14060

main62117-24020-02iMA70..RHD..(ARL,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62117-24020

main62117-24020-03iMA70..RHD198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62117-24020

main62117-24020-04iMA70..RHD198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62117-24020

main62117-24020-05iMA70..RHD198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62117-24020

62211GARNISH, FRONT PILLAR, RH

main62210-14051-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62210-14051

main62210-14051-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62210-14051

main62210-14051-04iMA70198601-198808

BLUE,DARK BLUE,TRIM8#

sub62210-14051

main62210-14051-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62210-14051

62212GARNISH, FRONT PILLAR, LH

main62220-14051-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62220-14051

main62220-14051-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62220-14051

main62220-14051-04iMA70198601-198808

BLUE,DARK BLUE,TRIM8#

sub62220-14051

main62220-14051-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62220-14051

62310WEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14150iMA70..LB198601-198808

sub62381-14180

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iMA70..LB198601-198808

62320WEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14140iMA70..LB198601-198808

sub62382-14170

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-14060iMA70..SPR198604-198808

main62361-14070iMA70..LB198601-198808

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-14060iMA70..SPR198604-198808

main62362-14070iMA70..LB198601-198808

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-14060iMA70..SPR198604-198808

sub62371-14061

main62371-14070iMA70..LB198601-198808

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-14060iMA70..SPR198604-198808

sub62372-14061

main62372-14070iMA70..LB198601-198808

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-14070-02iMA70..LB..(ARL,GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62431-14070

main62431-14070-03iMA70..LB198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62431-14070

main62431-14070-04iMA70..LB198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62431-14070

main62431-14070-05iMA70..LB..(ARL,EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62431-14070

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62431-14070-02iMA70..LB..(ARL,GCC,GEN)198601-198808

MAROON,MAROON,TRIM3#

sub62431-14070

main62431-14070-03iMA70..LB198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62431-14070

main62431-14070-04iMA70..LB198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62431-14070

main62431-14070-05iMA70..LB..(ARL,EUR,GEN,SA)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62431-14070

62461GARNISH, ROOF SIDE TRIM, RH

main62471-14270-02iMA70..GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-03iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-03iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,GRAY,MEDIUM GRAY,TRIM1#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-04iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-04iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-05iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14270-05iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,BEIGE,DARK BEIGE,TRIM4#

sub62471-14271

sub74631-14020

sub90152-60046

main62471-14280-02iMA70..ARL,GEN198601-198808

W/RR 3POINT SEAT BELT,MAROON,MAROON,TRIM3#

sub62471-14281

sub74631-14020

sub90152-60046

main62471-14280-03iMA70..ARL,EUR,GEN198601-198808

W/RR 3POINT SEAT BELT,GRAY,MEDIUM GRAY,TRIM1#

sub62471-14281

sub74631-14020

sub90152-60046

main62471-14280-04iMA70..ARL,EUR,GEN198601-198808

W/RR 3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#

sub62471-14281

sub74631-14020

sub90152-60046

main62471-14280-05iMA70..ARL,EUR,GEN198601-198808

W/RR 3POINT SEAT BELT,BEIGE,DARK BEIGE,TRIM4#

sub62471-14281

sub74631-14020

sub90152-60046

62461PPLUG, HOLE (FOR ROOF SIDE INNER GARNISH)

main90950-01503-04iMA70198601-198808

BLUE,BLUE,TRIM8#

sub90950-01503

main90950-01503-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub90950-01503

main90950-01503-13iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub90950-01503

62462GARNISH, ROOF SIDE TRIM, LH

main62472-14240-02iMA70..GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-03iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-03iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,GRAY,MEDIUM GRAY,TRIM1#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-04iMA70..LHD..EUG;MA70..RHD..(EUR,GEN);MA70..LHD..(GCC,GEN)198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-04iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-05iMA70..LHD..EUG;MA70..LHD..GEN;MA70..RHD..(EUR,GEN)198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14240-05iMA70..SDZ198706-198808

W/O RR 3POINT SEAT BELT,BEIGE,DARK BEIGE,TRIM4#

sub62472-14241

sub74631-14020

sub90152-60046

main62472-14250-02iMA70..ARL,GEN198601-198808

W/RR 3POINT SEAT BELT,MAROON,MAROON,TRIM3#

sub62472-14251

sub74631-14020

sub90152-60046

main62472-14250-03iMA70..ARL,EUR,GEN198601-198808

W/RR 3POINT SEAT BELT,GRAY,MEDIUM GRAY,TRIM1#

sub62472-14251

sub74631-14020

sub90152-60046

main62472-14250-04iMA70..ARL,EUR,GEN,SA198601-198808

W/RR 3POINT SEAT BELT,BLUE,DEEP BLUE,TRIM8#

sub62472-14251

sub74631-14020

sub90152-60046

main62472-14250-05iMA70..ARL,EUR,GEN,SA198601-198808

W/RR 3POINT SEAT BELT,BEIGE,DARK BEIGE,TRIM4#

sub62472-14251

sub74631-14020

sub90152-60046

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-1B020-02iMA70..ARL,GCC,GEN198601-198708

MAROON,MAROON,TRIM3#

main62510-1B020-03iMA70198601-198708

GRAY,LIGHT GRAY,TRIM1#

main62510-1B020-04iMA70198601-198708

BLUE,DEEP BLUE,TRIM8#

main62510-1B020-05iMA70198601-198708

BEIGE,DARK BEIGE,TRIM4#

main62510-1B030-02iMA70..GCC,GEN198601-198808

W/LEATHER SEAT,MAROON,MAROON,TRIM3#

main62510-1B030-03iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1#

main62510-1B030-04iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8#

main62510-1B030-05iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4#

main62510-1B050-02iMA70..ARL,GCC,GEN198708-198808

MAROON,MAROON,TRIM3#

sub62510-1B050

main62510-1B050-03iMA70198708-198808

GRAY,LIGHT GRAY,TRIM1#

sub62510-1B050

main62510-1B050-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

sub62510-1B050

main62510-1B050-05iMA70..ARL,EUR,GEN,SA198708-198808

BEIGE,DARK BEIGE,TRIM4#

sub62510-1B050

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-1B010-02iMA70..ARL,GCC,GEN198601-198708

MAROON,MAROON,TRIM3#

main62520-1B010-03iMA70198601-198708

GRAY,LIGHT GRAY,TRIM1#

main62520-1B010-04iMA70198601-198708

BLUE,DEEP BLUE,TRIM8#

main62520-1B010-05iMA70198601-198708

BEIGE,DARK BEIGE,TRIM4#

main62520-1B020-02iMA70..GCC,GEN198601-198808

W/LEATHER SEAT,MAROON,MAROON,TRIM3#

main62520-1B020-03iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1#

main62520-1B020-04iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8#

main62520-1B020-05iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4#

main62520-1B040-02iMA70..ARL,GCC,GEN198708-198808

MAROON,MAROON,TRIM3#

sub62520-1B040

main62520-1B040-03iMA70198708-198808

GRAY,LIGHT GRAY,TRIM1#

sub62520-1B040

main62520-1B040-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

sub62520-1B040

main62520-1B040-05iMA70..ARL,EUR,GEN,SA198708-198808

BEIGE,DARK BEIGE,TRIM4#

sub62520-1B040

62517BBASE, QUARTER TRIM, FRONT RH

main62517-14070-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62517-14070

main62517-14070-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62517-14070

main62517-14070-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62517-14070

main62517-14070-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62517-14070

62518BBASE, QUARTER TRIM, FRONT LH

main62518-14050-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

sub62518-14050

main62518-14050-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub62518-14050

main62518-14050-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub62518-14050

main62518-14050-05iMA70198601-198808

BEIGE,DARK BEIGE,TRIM4#

sub62518-14050

62533ABRACKET, QUARTER TRIM CLAMP

main62533-14070iMA70198601-198808

62538CCOVER, QUARTER TRIM, HOLE

main62538-14040-02iMA70..ARL,GCC,GEN198601-198808

MAROON,MAROON,TRIM3#

main62538-14040-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main62538-14040-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

main62538-14040-05iMA70..ARL,EUR,GEN,SA198601-198808

BEIGE,DARK BEIGE,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14090iMA70198601-198808

RH

main62562-14090iMA70198601-198808

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iMA70198601-198808

BLACK,BLACK

sub90467-08056

62633DCOVER, QUARTER TRIM BASE, FRONT RH

main62633-14030-02iMA70..ARL,GCC,GEN198601-198708

MAROON,MAROON,TRIM3#

main62633-14030-03iMA70198601-198708

GRAY,LIGHT GRAY,TRIM1#

main62633-14030-04iMA70198601-198708

BLUE,DEEP BLUE,TRIM8#

main62633-14030-05iMA70..ARL,EUR,GEN,SA198601-198708

BEIGE,DARK BEIGE,TRIM4#

main62633-14040-02iMA70..GCC,GEN198601-198808

W/LEATHER SEAT,MAROON,MAROON,TRIM3#

main62633-14040-03iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1#

main62633-14040-04iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8#

main62633-14040-05iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4#

main62633-14050-02iMA70..ARL,GCC,GEN198708-198808

MAROON,MAROON,TRIM3#

sub62633-14050

main62633-14050-03iMA70198708-198808

GRAY,LIGHT GRAY,TRIM1#

sub62633-14050

main62633-14050-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

sub62633-14050

main62633-14050-05iMA70..ARL,EUR,GEN,SA198708-198808

BEIGE,DARK BEIGE,TRIM4#

sub62633-14050

62634DCOVER, QUARTER TRIM BASE, FRONT LH

main62634-14030-02iMA70..ARL,GCC,GEN198601-198708

MAROON,MAROON,TRIM3#

main62634-14030-03iMA70198601-198708

GRAY,LIGHT GRAY,TRIM1#

main62634-14030-04iMA70198601-198708

BLUE,DEEP BLUE,TRIM8#

main62634-14030-05iMA70198601-198708

BEIGE,DARK BEIGE,TRIM4#

main62634-14040-02iMA70..GCC,GEN198601-198808

W/LEATHER SEAT,MAROON,MAROON,TRIM3#

main62634-14040-03iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1#

main62634-14040-04iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8#

main62634-14040-05iMA70..EUR,GCC,GEN198601-198808

W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4#

main62634-14050-02iMA70..ARL,GCC,GEN198708-198808

MAROON,MAROON,TRIM3#

sub62634-14050

main62634-14050-03iMA70198708-198808

GRAY,LIGHT GRAY,TRIM1#

sub62634-14050

main62634-14050-04iMA70198708-198808

BLUE,DEEP BLUE,TRIM8#

sub62634-14050

main62634-14050-05iMA70..ARL,EUR,GEN,SA198708-198808

BEIGE,DARK BEIGE,TRIM4#

sub62634-14050

8401

6777114030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14030

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

6777114050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14050

9016740029

main90167-40029

9016840008

main90168-40008

9017906068

main90179-06068

9046804118

main90468-04118

9046805060

main90468-05060

9046806038

main90468-06038

9046806062

main90468-06062

9095901237

main90959-01237

9095901245

main90959-01245

9356055014

main93560-55014

43 parts on this diagram · 2 diagrams in section
