TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

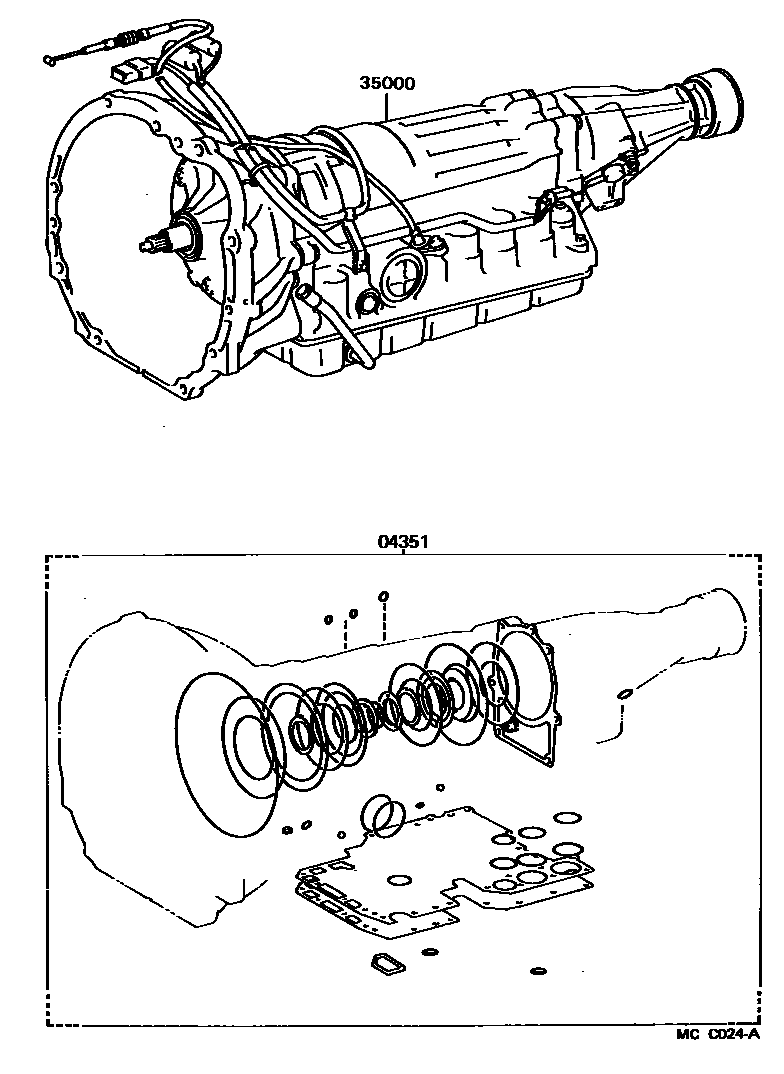

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14030i198708-198808

main04351-30091i198601-198608

main04351-30092i198608-198610

main04351-30093i198610-198808

35000TRANSMISSION ASSY, AUTOMATIC

main35000-14890i198601-198702

main35000-14891i198702-198808

main35000-1B010i198604-198808

W/*66

main35000-1B020i198601-198702

main35000-1B021i198702-198808

main35000-24172i198708-198801

main35000-24173i198801-198808

main35000-24182i198708-198801

W/*66

main35000-24183i198801-198808

W/*66

2 parts on this diagram · 1 diagram in section
