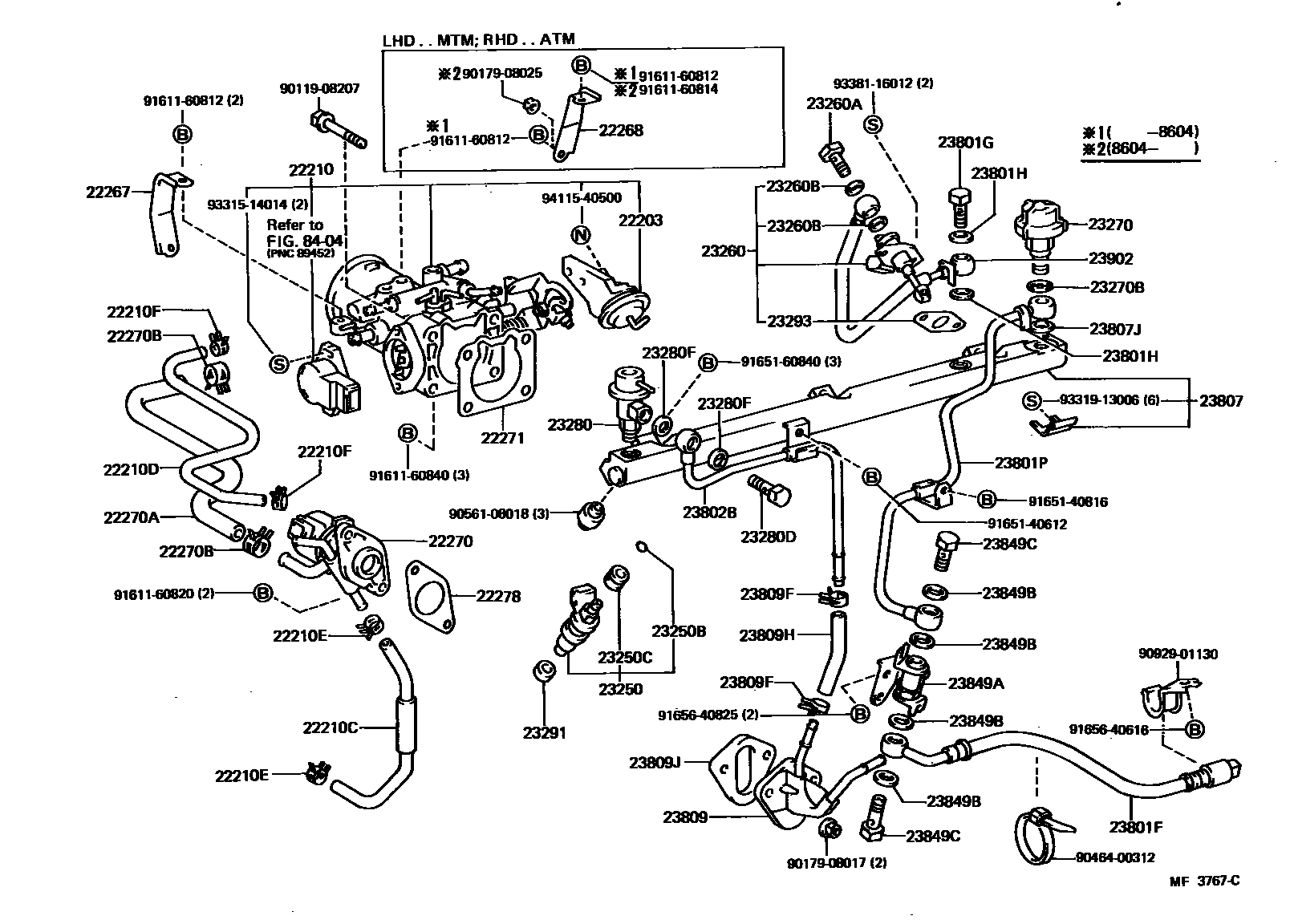

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22267BRACKET, THROTTLE BODY
22268BRACKET, THROTTLE BODY, NO.2
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270BCLIP(FOR AIR HOSE)
sub96134-42300
22278GASKET, IDLE SPEED CONTROL VALVE
sub22278-42010
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260ABOLT, UNION
23260BGASKET
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-42010
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
sub23803-42011
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809FCLIP(FOR FUEL PIPE SUPPORT)
sub96135-51300
23809JINSULATOR, FUEL PIPE SUPPORT
sub90923-06012
23849ASUPPORT, FUEL PIPE
23849BGASKET(FOR FUEL PIPE SUPPORT)
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
23902TUBE SUB-ASSY, FUEL
8404
9011908207
main90119-08207
9017908017
main90179-08017
9017908025
main90179-08025
9046400312
main90464-00312
9056108018
main90561-08018
9092901130
main90929-01130
9161160812
main91611-60812
9161160814
main91611-60814
9161160820
main91611-60820
9161160840
main91611-60840
9165140612
main91651-40612
9165140816
main91651-40816
9165160840
main91651-60840
9165640616
main91656-40616
9165640825
main91656-40825
9331514014
main93315-14014
9331913006
main93319-13006
9338116012
main93381-16012
9411540500
main94115-40500
61 parts on this diagram · 4 diagrams in section
