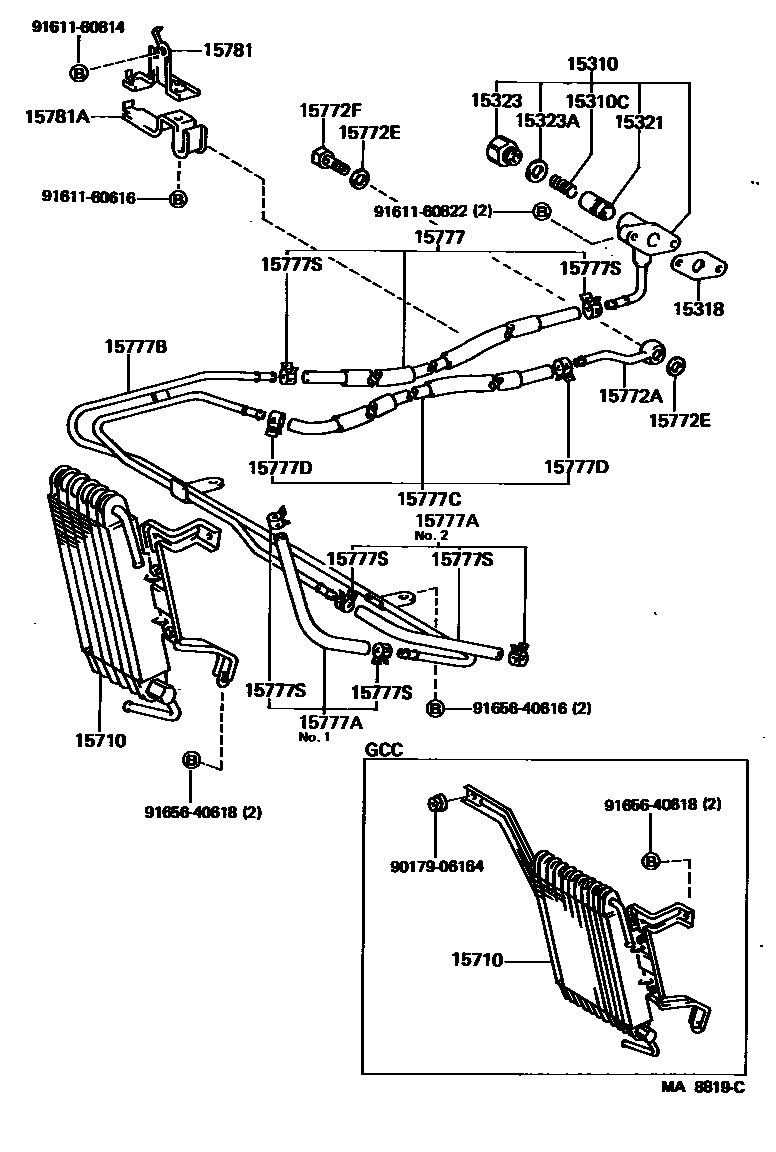

ENGINE OIL COOLER
15310REGULATOR ASSY, OIL PRESSURE
15310CSPRING, OIL PRESSURE REGULATOR
15318GASKET, OIL PRESSURE REGULATOR BODY
15321VALVE, OIL ADJUSTING
15323BOLT, OIL PRESSURE ADJUSTING
15323AGASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15710COOLER ASSY, OIL
NO.1
NO.2
15772AUNION(FOR OIL PIPE)
15772EGASKET(FOR OIL PIPE)
15772FBOLT, UNION(FOR OIL PIPE)
15777HOSE, OIL COOLER
NO.2
15777AHOSE, OIL COOLER
NO.1; NO.2
NO.1
NO.2
NO.2
15777BPIPE, OIL COOLER
15777CHOSE, OIL COOLER
15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
15777SCLAMP OR CLIP, HOSE
15781BRACKET, OIL COOLER, NO.1
15781ACLAMP(FOR OIL COOLER BRACKET NO.1)
9017906164
main90179-06164
9161160616
main91611-60616
9161160814
main91611-60814
9161160822
main91611-60822
9165640616
main91656-40616
9165640618
main91656-40618
24 parts on this diagram · 3 diagrams in section
