REAR SEAT & SEAT TRACK

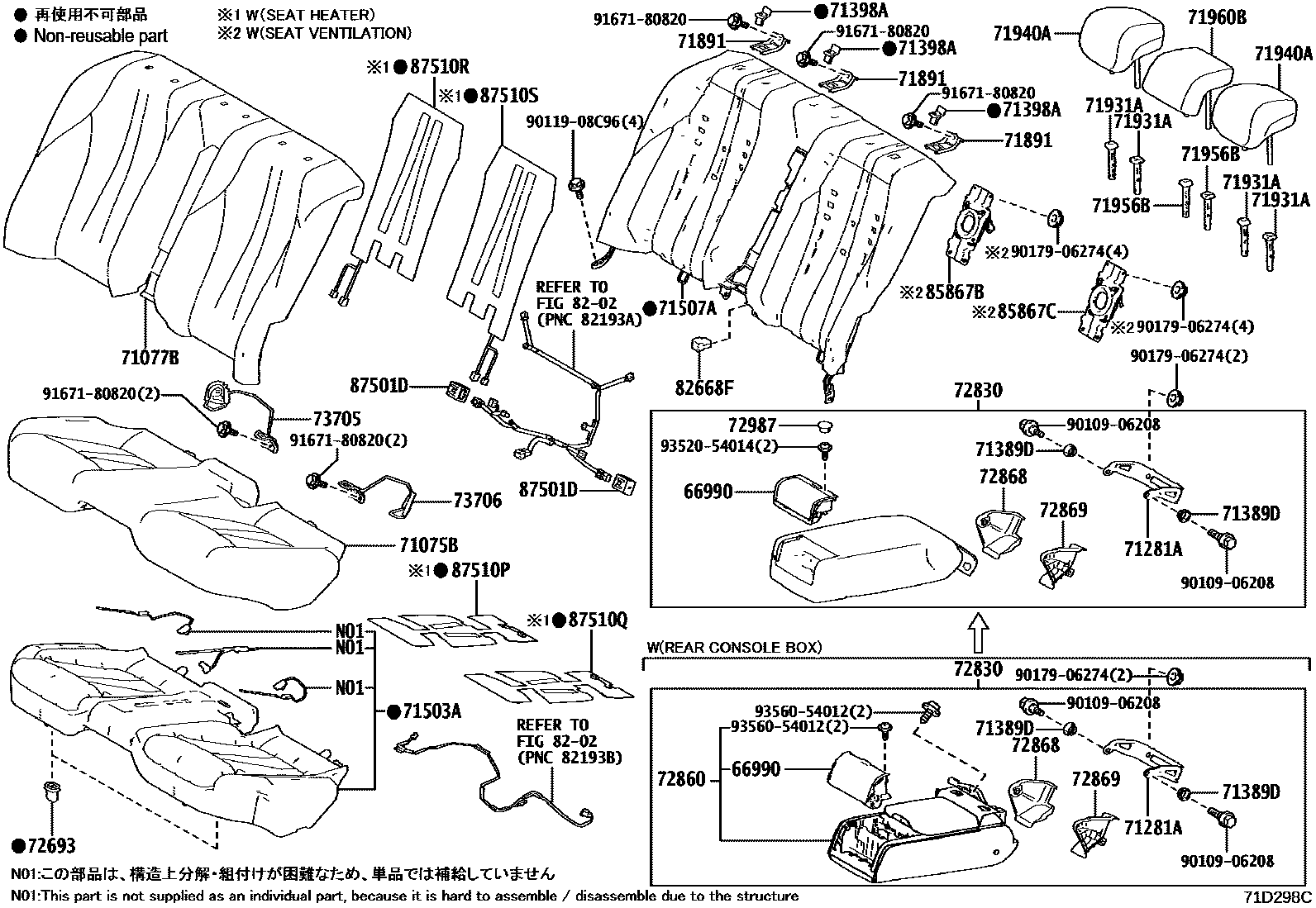

Parts diagram
66990HOLDER ASSY, CUP
main66990-78010-C1i202011-202312
BLACK,TRIM0#,2#; BLACK,TRIM2#
main66990-41010-C0i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK,TRIM0#,2#; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK,TRIM0#,2#; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK,TRIM0#,2#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK,TRIM0#,2#; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM0#,2#
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-62100-C0i202312-202411
BLACK,TRIM2#
main71075-62110-A1i202011-202312
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; WHITE&WHITE,TRIM0#
main71075-62110-C1supersedes 71075-62100-C0i202412
BLACK&GRAY,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#
main71075-62120-A0i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#
main71075-62120-C0i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21
main71075-62120-C1i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-62150-C1i202412
BLACK,TRIM2#
main71077-62160-A2i202011-202312
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; WHITE&WHITE,TRIM0#
main71077-62160-C2supersedes 71077-62150-C1i202412
BLACK&GRAY,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#
main71077-62070-A3i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#
main71077-62070-C6i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21
main71077-62070-C7i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-30090i202312-202411
71389DPLATE, REAR SEAT STOPPER
main71389-30010×2i202312-202411
71398AHOLDER, REAR SEATBACK
main71398-33010×3i202412
main71398-33010-C1×3i202011-202104
BLACK
71503APAD SUB-ASSY, REAR SEAT CUSHION
main71503-62020i202412
71507APAD SUB-ASSY, REAR SEATBACK
main71507-62020i202312-202411
main71507-62030i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE); FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT); SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)
71891BRACKET, REAR SEATBACK SET, NO.1
main71891-62010×3i202011-202312
71931ASUPPORT, REAR SEAT HEADREST
main71930-47020-C4×2i202011-202312
W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#
main71931-47020-C4×2i202312-202411
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-62020-C0×2i202412
BLACK,TRIM2#
main71940-62030-A0×2i202011-202212
COLD AREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC,WHITE&WHITE,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC,WHITE&WHITE,TRIM0#; WHITE&WHITE,TRIM0#
main71940-62030-C0×2i202011-202212
BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&COLD AREA SPEC,BLACK&IVORY,TRIM20,21; U.A.E. SPEC&COLD AREA SPEC,BLACK&IVORY,TRIM20,21
main71940-62030-C1×2supersedes 71940-62020-C1i202011-202212
BLACK&GRAY,TRIM20; COLD AREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#; SAUDI ARABIA SPEC&COLD AREA SPEC,BLACK&GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#; U.A.E. SPEC&COLD AREA SPEC,BLACK&GRAY,TRIM20
main71940-62031-A2×2i202212-202312
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE/WHITE,TRIM0#; WHITE/WHITE,TRIM0#; WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE/WHITE,TRIM0#
main71940-62031-C4×2i202412
BLACK/IVORY,TRIM21
main71940-62031-C5×2supersedes 71940-62020-C0i202312-202411
BLACK/GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#; WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47020-C4i202011-202312
W(LOCK),BLACK,TRIM0#,2#; W(LOCK),BLACK,TRIM2#
main71931-47020-C4i202312-202411
W/O(LOCK),BLACK,TRIM0#,2#; W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-62010-C0i202312-202411
BLACK,TRIM2#
main71960-62020-A1i202011-202212
COLD AREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC,WHITE&WHITE,TRIM0#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC,WHITE&WHITE,TRIM0#; WHITE&WHITE,TRIM0#
main71960-62020-C1i202011-202212
BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&COLD AREA SPEC,BLACK&IVORY,TRIM20,21; U.A.E. SPEC&COLD AREA SPEC,BLACK&IVORY,TRIM20,21
main71960-62020-C2supersedes 71960-62010-C1i202011-202212
BLACK&GRAY,TRIM20; COLD AREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#; SAUDI ARABIA SPEC&COLD AREA SPEC,BLACK&GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#; U.A.E. SPEC&COLD AREA SPEC,BLACK&GRAY,TRIM20
main71960-62021-A3i202412
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE/WHITE,TRIM0#; WHITE/WHITE,TRIM0#
main71960-62021-C5i202212-202312
BLACK/IVORY,TRIM21
main71960-62021-C6supersedes 71960-62010-C0i202212-202312
BLACK/GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#; WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i202412
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-62010-C0i202412
BLACK,TRIM2#
main72830-62020-A1i202312-202411
SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#; WHITE&WHITE,TRIM0#; WITHOUT(COLD AREA SPEC)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE&WHITE,TRIM0#
main72830-62020-C1supersedes 72830-62010-C0i202412
BLACK&GRAY,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK&GRAY,TRIM2#
main72830-62110-A1i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#
main72830-62110-C2i202011-202108
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; SAUDI ARABIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REARSEAT),BLACK&IVORY,TRIM20,21; U.A.E. SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM20,21; U.A.E. SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONTSEAT & REAR SEAT),BLACK&IVORY,TRIM20,21
main72830-62110-C3i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20
72860BOX ASSY, REAR SEAT CENTER ARMREST
main72860-62070-A2i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),WHITE&WHITE,TRIM0#
main72860-62070-C4i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&IVORY,TRIM21; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&IVORY,TRIM21
main72860-62070-C5i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; SAUDI ARABIA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20; U.A.E. SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT),BLACK&GRAY,TRIM20
72868COVER, CENTER ARMREST HINGE, RH
main72868-62010-C0i202412
BLACK,TRIM0#,2#; BLACK,TRIM2#
72869COVER, CENTER ARMREST HINGE, LH
main72869-62010-C0i202412
BLACK,TRIM0#,2#; BLACK,TRIM2#
72987COVER, REAR SEAT CENTER ARMREST
main72987-78010×2i202312-202411
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-62020i202412
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-62020i202312-202411
8202WIRING & CLAMP
→ Go to FIG 82-02
82668FHOLDER, CONNECTOR
main90980-12413i202312-202411
85867BBLOWER, REAR SEATBACK CLIMATE CONTROL, RH
main85867-62010i202011-202108
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); SAUDI ARABIA SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); SAUDI ARABIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REARSEAT); U.A.E. SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); U.A.E. SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONTSEAT & REAR SEAT)
85867CBLOWER, REAR SEATBACK CLIMATE CONTROL, LH
main85867-62010i202011-202108
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); SAUDI ARABIA SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); SAUDI ARABIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REARSEAT); U.A.E. SPEC&COLD AREA SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); U.A.E. SPEC&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONTSEAT & REAR SEAT)
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-33010×2i202312-202411
FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)
87510PHEATER ASSY, SEAT
main87510-62050i202312-202411
FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT)
87510QHEATER ASSY, SEAT
main87510-62060i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE); FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT)
87510RHEATER ASSY, SEAT
main87530-62050i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE); FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT)
87510SHEATER ASSY, SEAT
main87530-62060i202108-202212
COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); COLD AREA SPEC&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); COLD AREA SPEC&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE); FRONT AIR CONDITIONER-3ZONE(WITH ALL AUTO)&FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVERMATERIAL-LEATHER(SEMI ANILINE); FRONT SEAT-WITH(ASSIST GRIP & FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATION SEAT-WITH(FRONT SEAT & REAR SEAT); FRONT SEAT-WITH(FOOT LIGHT)&SEAT COVER MATERIAL-LEATHER(SEMI ANILINE)&VENTILATIONSEAT-WITH(FRONT SEAT & REAR SEAT)
9010906208
main90109-06208
9011908C96
main90119-08C96
9017906274
main90179-06274
9167180820
main91671-80820
9352054014
main93520-54014
9356054012
main93560-54012

36 parts on this diagram · 1 diagram in section
