WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1FLOOR & ROOF 0009 1SEAT 0010 1HIGH VOLTAGE CABLE 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CONNECTOR 1/2 0014 1CONNECTOR 2/2

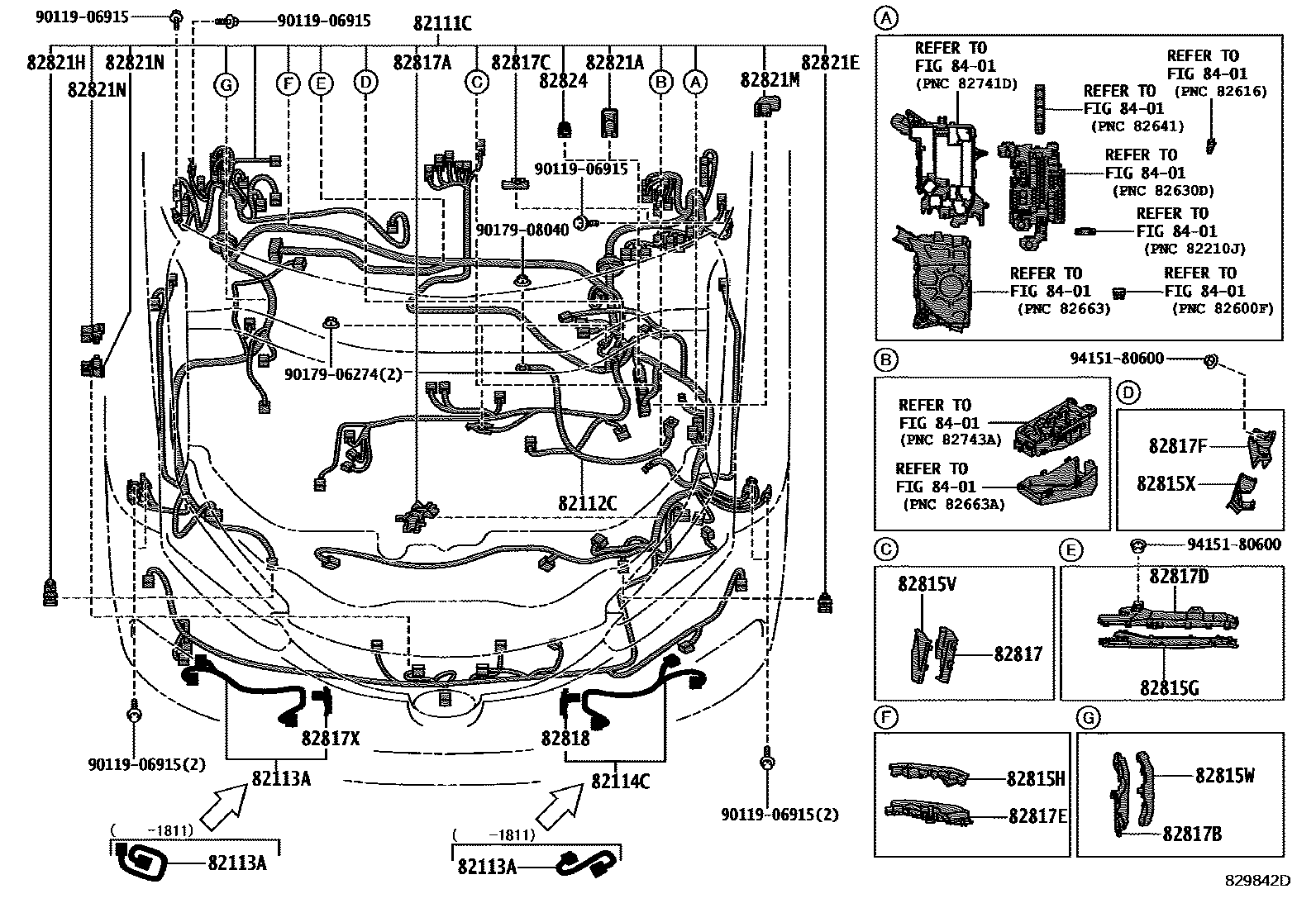

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-62020iJPD10..RHD201506-201811

main82111-62040iJPD10..LHD201506-201801

main82111-62041iJPD10..LHD201801-201811

main82111-62150iJPD10..RHD201811-202005

main82111-62160iJPD10..LHD201811-202005

82112CWIRE, FROMT COMPARTMENT, NO.2

main82112-62010iJPD10201506-202005

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-62010×2iJPD10201506-201811

main82113-62070iJPD10201811-202005

82114CWIRE, FRONT COMPARTMENT, NO.4

main82113-62080iJPD10201811-202005

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-75010iJPD10..RHD201506-202005

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-75020iJPD10..RHD201506-202005

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-47390iJPD10201506-202005

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-47590iJPD10..RHD201506-202005

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-62010iJPD10..RHD201506-202005

main82815-62020iJPD10..LHD201506-202005

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47620iJPD10201506-202005

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-75541iJPD10201506-202005

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47830iJPD10..RHD201506-202005

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47A00iJPD10..RHD201506-202005

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-75070iJPD10..RHD201506-202005

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-75080iJPD10..RHD201506-202005

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-75100iJPD10..RHD201506-202005

main82817-75130iJPD10..LHD201506-202005

82817XPROTECTOR, WIRING HARNESS, NO.17

main82817-62320iJPD10201811-202005

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-62330iJPD10201811-202005

82821ACOVER, CONNECTOR

main82821-12560iJPD10201506-202005

82821ECOVER, CONNECTOR

main82821-30650iJPD10201506-202005

82821HCOVER, CONNECTOR

main82821-42040iJPD10201506-202005

82821MCOVER, CONNECTOR

main82821-76010iJPD10201506-202005

82821NCOVER, CONNECTOR

main82821-48040×2iJPD10201506-202005

82824CONNECTOR, WIRING HARNESS

main82824-34100iJPD10201506-202005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9017906274

main90179-06274

9017908040

main90179-08040

9415180600

main94151-80600

29 parts on this diagram · 14 diagrams in section
