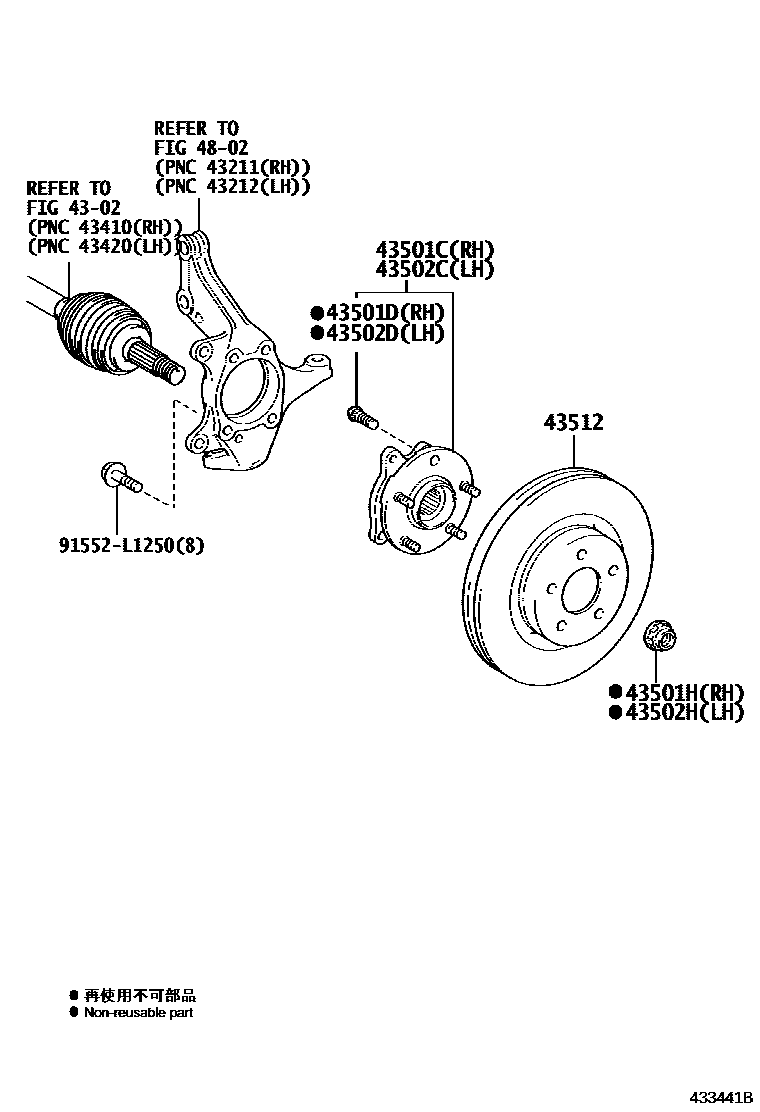

Toyota MIRAI 28B — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

43501DBOLT, HUB (FOR FRONT AXLE RH)

43501HNUT (FOR FRONT AXLE SHAFT RH)

43502CHUB SUB-ASSY, FRONT AXLE, LH

43502DBOLT, HUB (FOR FRONT AXLE LH)

43502HNUT (FOR FRONT AXLE SHAFT LH)

43512DISC, FRONT

43512-42050

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

91552-L1250

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota MIRAI 28B

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota MIRAI 28B. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
