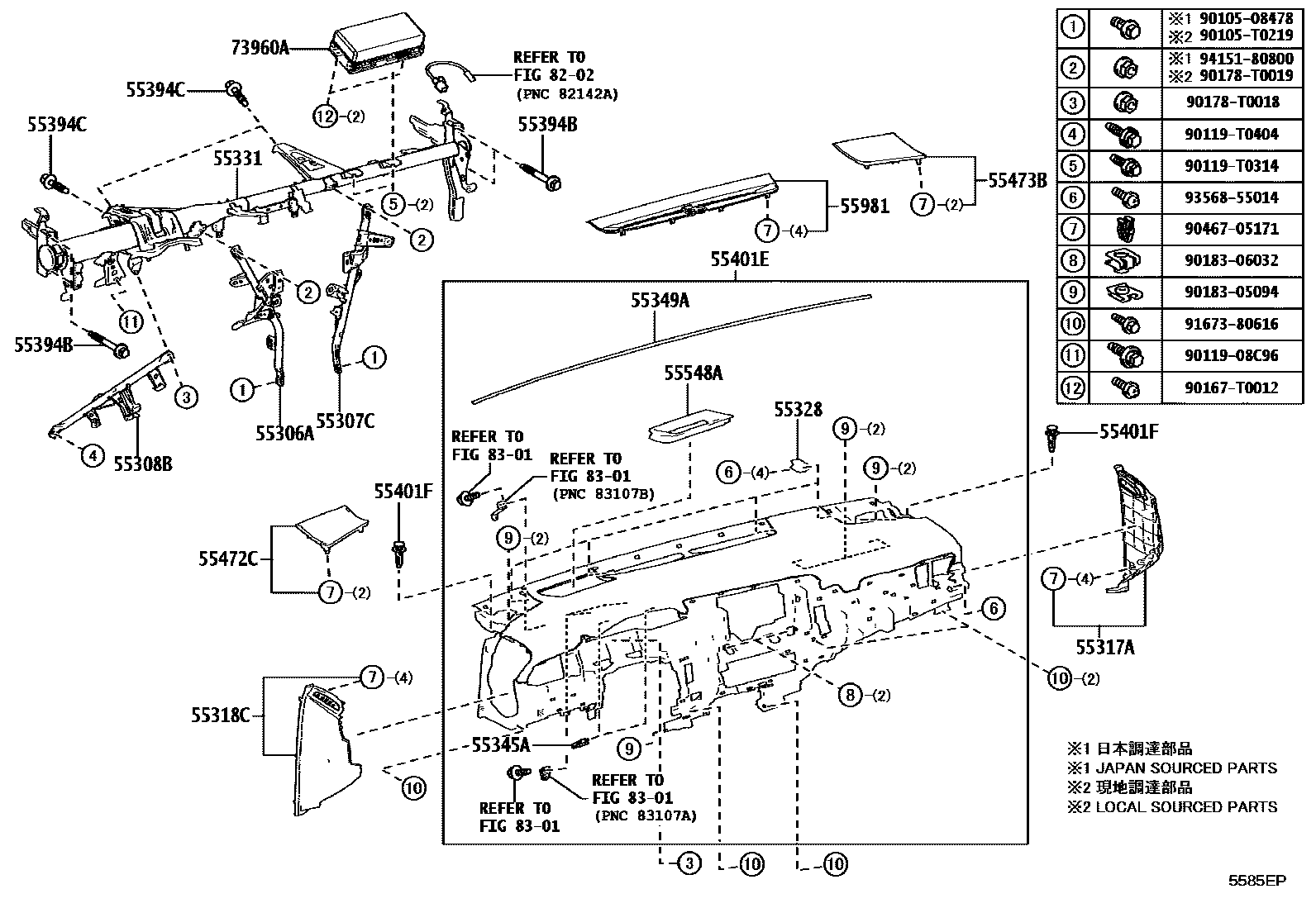

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06300iAXVH80,MXVA80..LHD202410

main55306-06310iAXVA80,AXVH80..RHD202410

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06290iAXVH80,MXVA80..LHD202410

main55307-06300iAXVA80,AXVH80..RHD202410

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-06090iAXVH80,MXVA80..LHD202410

main55308-06120iAXVA80,AXVH80..RHD202410

55317APANEL, INSTRUMENT SIDE, RH

main55317-06530-C0iAXVH80,MXVA80..LHD202410

BLACK,TRIM0#,2#,4#

main55317-06540-C0iAXVA80,AXVH80..RHD202410

BLACK,TRIM0#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06450-C0iAXVH80,MXVA80..LHD202410

BLACK,TRIM0#,2#,4#

main55318-06460-C0iAXVA80,AXVH80..RHD202410

BLACK,TRIM0#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iAXVA80,AXVH80,MXVA80202410

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06600iAXVH80,MXVA80..LHD202410

main55330-06610iAXVA80,AXVH80..RHD202410

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iAXVH80,MXVA80..LHD202410

55349ACUSHION, INSTRUMENT PANEL

main55349-06190iAXVA80,AXVH80..RHD202410

main55349-33060iAXVH80,MXVA80..LHD202410

55394BBOLT, INSTRUMENT PANEL

main90105-08473iAXVA80,AXVH80,MXVA80202410

(J)

main90105-T0220iAXVA80,AXVH80,MXVA80202410

(L)

55394CBOLT, INSTRUMENT PANEL

main90119-T0527iAXVA80,AXVH80,MXVA80202410

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06630-C1iAXVA80,AXVH80..G,Q202410

SOFT BLACK,TRIM0#,2#,4#

main55401-06640-C1iAXVA80,AXVH80..RHD..V202410

SOFT BLACK,TRIM0#,2#,4#

main55401-33530-C1iAXVH80,MXVA80..LHD202410

SOFT BLACK,TRIM0#,2#,4#

55401FCLIP(FOR SAFETY PAD)

main52161-0K040iAXVA80,AXVH80,MXVA80202410

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06160-C0iAXVH80,MXVA80..LHD202410

BLACK

main55472-06210-C0iAXVA80,AXVH80..RHD202410

BLACK

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06160-C0iAXVH80,MXVA80..LHD202410

BLACK

main55473-06210-C0iAXVA80,AXVH80..RHD202410

BLACK

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-06160-C0iAXVA80,AXVH80..RHD..V202410

BLACK

main55548-33130iAXVH80,MXVA80..LHD202410

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06120iAXVH80,MXVA80..LHD202410

main55981-06140iAXVA80,AXVH80..RHD202410

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06340iAXVA80,AXVH80,MXVA80202410

8202

8301

9010508478

main90105-08478

90105T0219

main90105-T0219

9011908C96

main90119-08C96

90119T0314

main90119-T0314

90119T0404

main90119-T0404

90167T0012

main90167-T0012

90178T0018

main90178-T0018

90178T0019

main90178-T0019

9018305094

main90183-05094

9018306032

main90183-06032

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 8 diagrams in section
