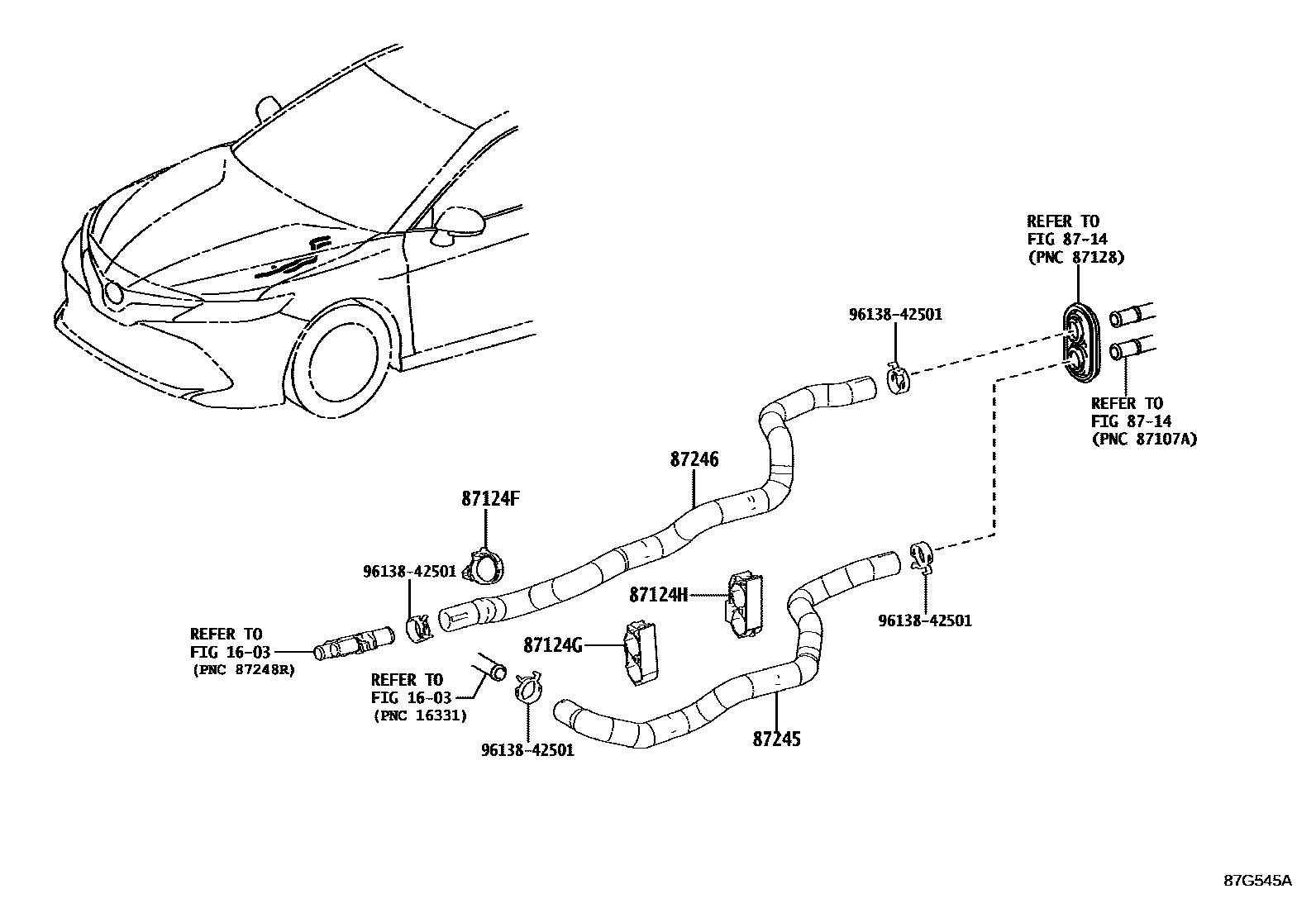

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0005 1 0007 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124FCLAMP, HEATER HOSE, NO.1

main88718-33480iASV7#,GSV70..RUS201709-202104

87124GCLAMP, HEATER HOSE, NO.2

main88718-33500iASV70..EUR201709-202101

87124HCLAMP, HEATER HOSE, NO.3

main88718-33510iASV70..EUR201709-202101

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-33070iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70..JPP202102

main87209-33140iMXVA71202104-202203

main87245-33830iGSV70..EUR201709-202101

main87245-33850iASV71201804-202104

main87245-33860iASV70..RUS201709-202104

87246HOSE, HEATER WATER, OUTLET

main87209-33080iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70..JPP202102

main87209-33151iMXVA71202104-202203

main87245-33820iGSV70..EUR202102

main87245-33840iASV71201804-202104

main87245-33870iASV70..RUS201709-202104

9613842501

main96138-42501

8 parts on this diagram · 5 diagrams in section
