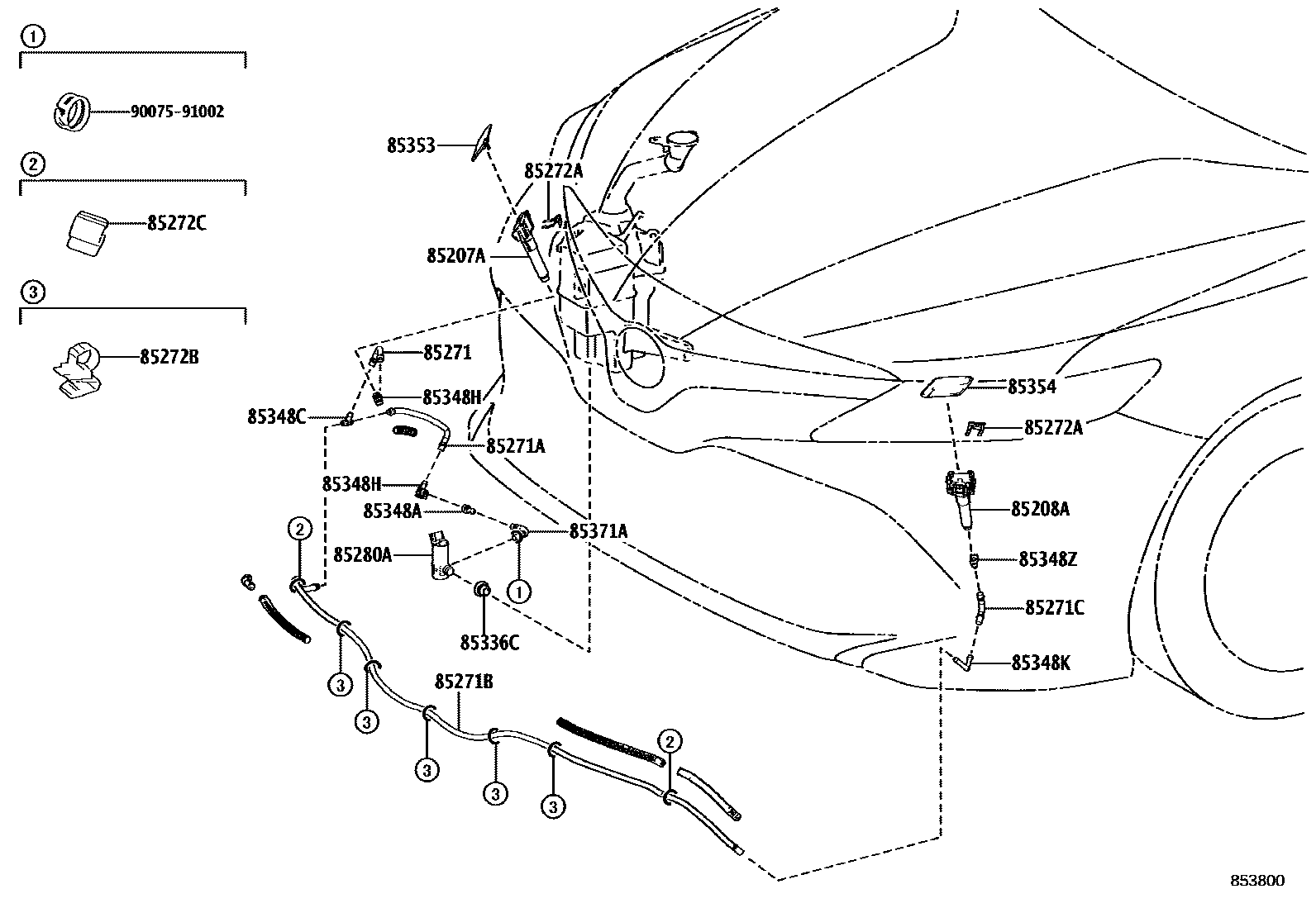

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=120
L=100
L=140
85271AHOSE, HEADLAMP CLEANER, NO.2
L=220
L=260
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1700
L=1800
L=1650
85271CHOSE, HEADLAMP CLEANER, NO.4
L=80
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336CPACKING, HEADLAMP CLEANER MOTOR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85353COVER, HEADLAMP WASHER, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7; KOREA SPEC,EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5; KOREA SPEC,EMOTIONAL RED 2,3U5; SINGAPORE SPEC,EMOTIONAL RED 2,3U5
RED M.M.,2QL ,3R3
EMOTIONAL RED 3,3U9
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
85354COVER, HEADLAMP WASHER, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7; KOREA SPEC,EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE ME.,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5; KOREA SPEC,EMOTIONAL RED 2,3U5; SINGAPORE SPEC,EMOTIONAL RED 2,3U5
RED M.M.,2QL ,3R3
EMOTIONAL RED 3,3U9
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
9007591002
main90075-91002
20 parts on this diagram · 2 diagrams in section
