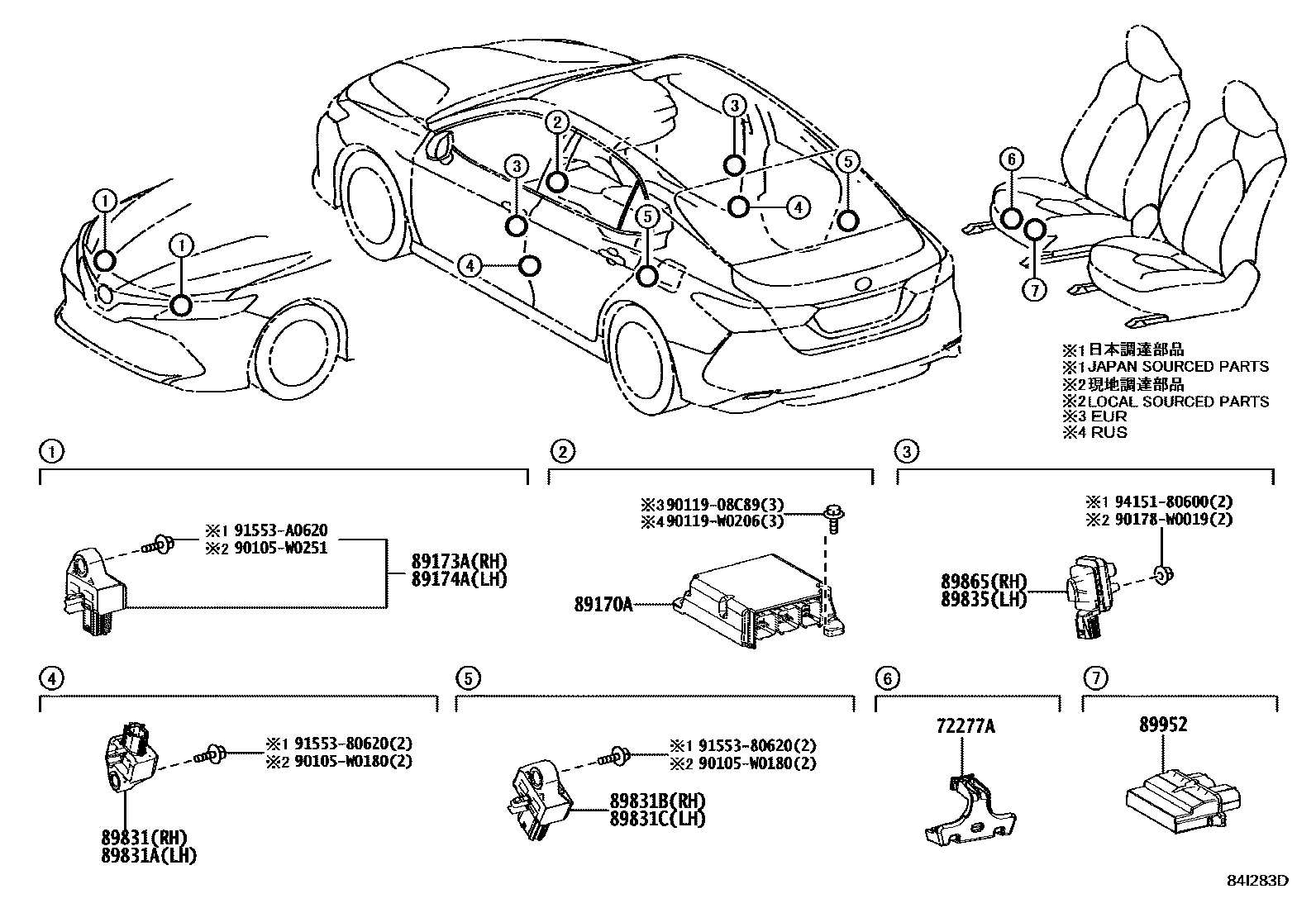

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
KOREA SPEC&FRONT SEAT ADJUSTER-*DRS:8WAY-POWER/*PAS:6WAY-MANUAL
89170ACOMPUTER ASSY, AIRBAG
LATIN AMERICA SPEC
ARGENTINA SPEC; LATIN AMERICA SPEC; UKR SALE SPECIFICATIONS 4; UKR SALE SPECIFICATIONS 5
ARGENTINA SPEC; LATIN AMERICA SPEC; UKR SALE SPECIFICATIONS 4; UKR SALE SPECIFICATIONS 5
AZERBAIJAN,ARMENIA,GEORGIA SPEC; SINGAPORE SPEC; UKRAINE SPEC
TMR SALE SPECIFICATIONS 4; TMR SALE SPECIFICATIONS 4.5
TMR SALE SPECIFICATIONS 5
KOREA SPEC
TMR SALE SPECIFICATIONS 4; TMR SALE SPECIFICATIONS 4.5
TMR SALE SPECIFICATIONS 5
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
89835SENSOR, DOOR SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
KOREA SPEC
KOREA SPEC
90105W0180
main90105-W0180
90105W0251
main90105-W0251
9011908C89
main90119-08C89
90119W0206
main90119-W0206
90178W0019
main90178-W0019
9155380620
main91553-80620
91553A0620
main91553-A0620
9415180600
main94151-80600
19 parts on this diagram · 1 diagram in section
