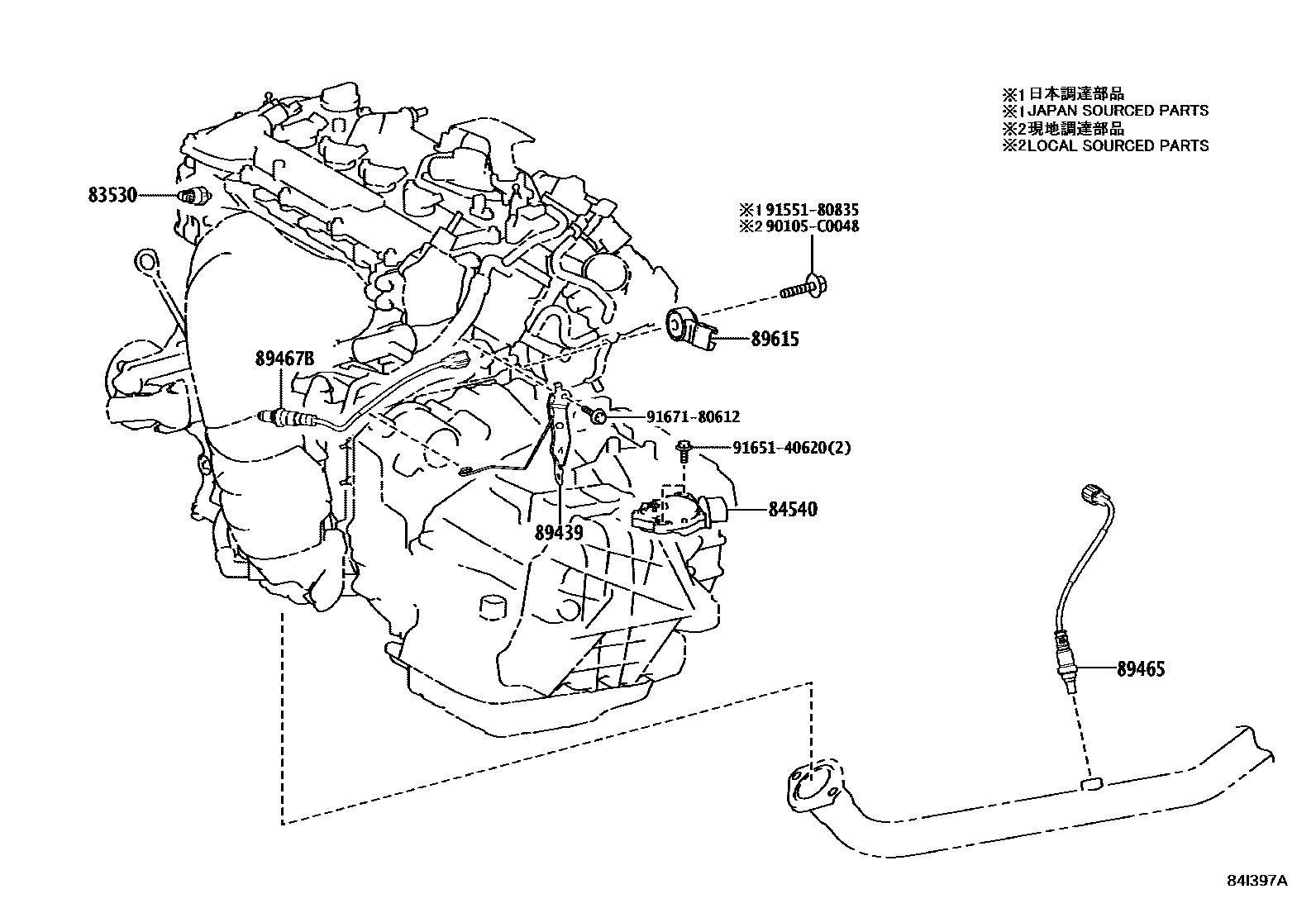

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE ROOM 2/2 0010 1COWL 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1STEERING 0018 1SEAT 0019 1DOOR, FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSV70..RUS201709-202203

DENSO

main83530-60020iASV70,GSV70..RUS201709-202203

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXVA71202104-202203

main84540-33010iASV7#..RUS201709-202104

main84540-33020iAXVA70,GSV70..EUR201709-202202

sub84540-33021

sub35572-48051

main84540-33021iAXVA70,GSV70..RUS202202-202203

89439BRACKET, SENSOR

main82715-33T60iASV70..EUR201709-202104

main82715-33T70iASV71201804-202104

89465SENSOR, OXYGEN

main89465-33560iASV71201804-202104

main89465-33620iGSV70..EUR201709-202203

main89465-42230iASV70..EUR201709-202104

89467BSENSOR, AIR FUEL RATIO

main89467-06200iASV70..RUS201804-202104

MARK=89467-06200

main89467-06220iASV71201804-202104

main89467-12280iMXVA71202104-202203

main89467-33270iGSV70..RUS201709-202111

main89467-33290iAXVH71..LHD..N201709-202312

main89467-33310iAXVH71..D201910-202101

HONGKONG SPEC

main89467-33310iAXVH71..D202102

main89467-48270iASV70..RUS201806-202104

MARK=89467-48270

main89467-48270iASV70..EUR201709-202101

89615SENSOR, KNOCK CONTROL

main89615-06010iGSV70..EUR201709-202203

(L)

main89615-20090iAXVA70,MXVA71..RUS201709-202203

(J)

main89615-20090iAXVH71..LHD..N202102-202312

90105C0048

main90105-C0048

9155180835

main91551-80835

9165140620

main91651-40620

9167180612

main91671-80612

10 parts on this diagram · 19 diagrams in section
